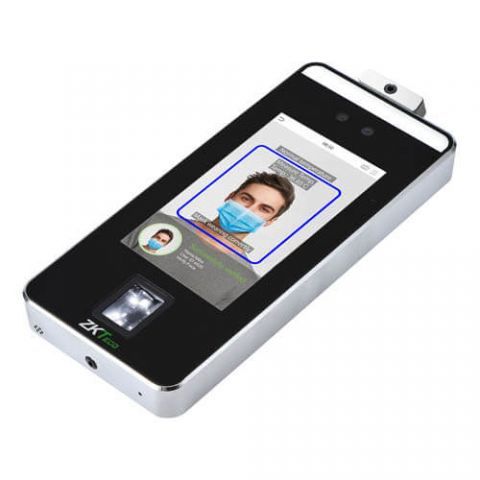

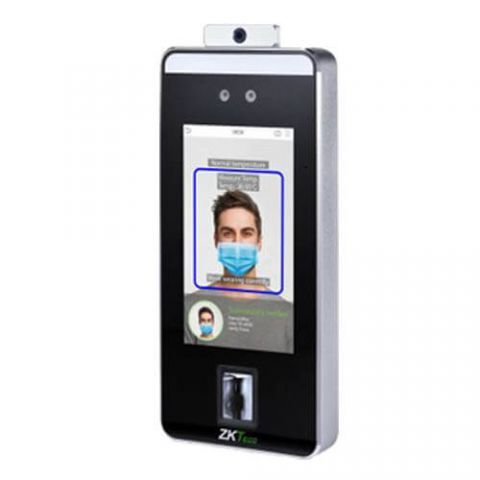

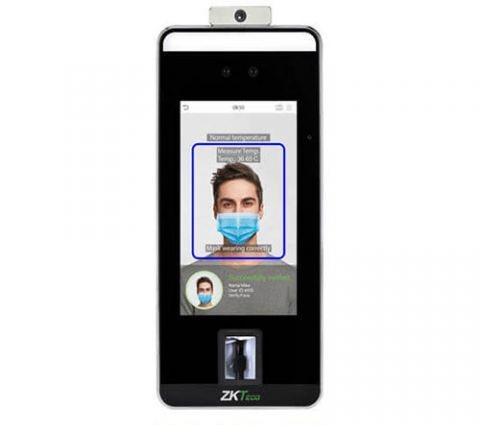

ZKteco USA - SF1005-V+ - Body-Temperature and Mask Detection with Face and Palm Recognition
Part number:
SF1005-V+
Price:

SF1005-V+ are patent-pending access control readers that can recognize registered & unregistered users elevated body temperature and the presence of a mask from 18 inches away. The thermopile sensor detects body-temperature accuracy up to +/-0.6 °F.



Features:

  • User authentication read range up to 8 feet
  • Body-temperature read range accurate up to +/- 0.6°F
  • Model SF1008+ stores & matches up to 50,000 face templates (SF1005-V+, 6,000)
  • Face verification with or without wearing a mask
  • Model SF1005-V+ additionally stores and matches up to 10,000 fingerprint templates
  • Model SF1008+ has an 8" programmable touchscreen display (SF1005-V+, 5" display)
  • Intelligent energy-saving design
  • Dual-lens IR & VL camera recognizes faces in both total darkness and bright sunlight
Specification
Body Temperature Detection

Accuracy +/- 0.6 °F

Range: 18 inches

Sensor: Thermopile Sensor

Capacity

Faces: 50,000

Palms: 5,000

Compatibility

Wiegand Input Panels

Wiegand Output Readers

ZKBioSecurity Software

ZKTeco Security Relay Box (SRB)

Hardware

900MHz Dual Core CPU

512MB RAM/ 8G Flash

8" Touch Screen Display

2MP WDR Camera

Distance Detection Sensor

Reset Button & Tamper Switch

Access Control Interface

Lock Relay Output

Alarm Output/Auxillary Input

Exit Button/Door Sensor

Special Functions

Liveness Detection

Event Snapshot

Communication

TCP/IP

RS485

Wiegand Input/Output

Wi-Fi

Power

Operating Voltage: 12V DC

Current Draw: <2,000mA

Name
Description
Size
Downloads
File
Datasheet
0.6mb
