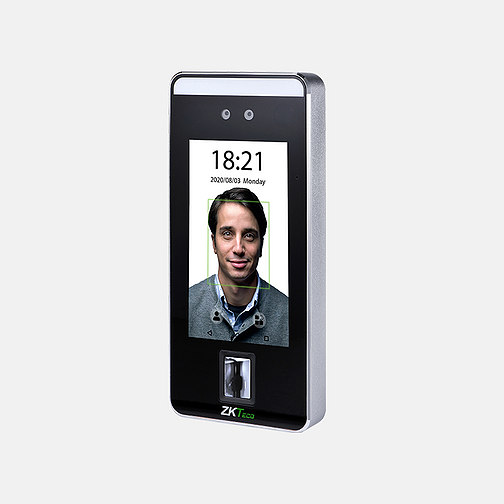

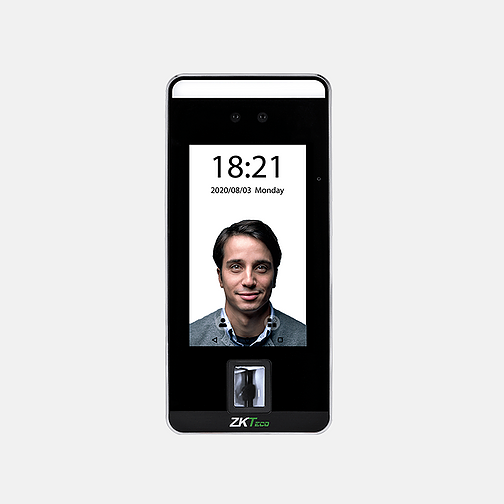

ZKteco USA - SF1005-V - Face and Fingerprint Recognition Access Control Reader
Part number:
SF1005-V
Price:
• Enhanced Visible Light Facial Recognition with Deep Learning
• Multiple verification with Fingerprint, RFID and Facial Recognition 5-inch touch LCD
• Dual-camera supports both infrared & visible light to achieve superior accuracy and a matching-speed 6,000 face templates capacity
• Recognition distance from 11 to 23 in
• Inter-operates with external RS232/485 and Wiegand reader
• Supports TCP/IP and optional Wi-Fi communication
| LCD | 5-inch touch screen |
| CPU | Quad-core A17 1.8 GHz |
| Memory | 2G RAM / 16G ROM |
| Camera | 2MP dual lens, infrared and visible light |
| Communication | RS-232/485 and Wiegand input for interoperability with external readers and Wiegand output for access control panels |
| Accessory | Door lock, door sensor, alarm, exit button, & aux input |
| Audio | Loudspeaker |
| User Capacity | 10,000 |
| Face Capacity | 6,000 |
| Fingerprint Capacity | 10,000 |
| RFID | 10,000 |
| Card Capacity | 200,000 |
| Voltage | 12V 3A |
| Temperature | -40 - 140 °F |
| Humidity | 20% - 90% |
| Software | ZKBioSecurity |
Name
Description
Size
Downloads
File
SF1005-V_Datasheet.pdf
1.7mb
The SF1005-V is a high-performance face recognition reader, most commonly used in access control applications. The SF1005-V can match up to 6,000 faces in less than 0.3 seconds, both in total darkness and in bright light.
