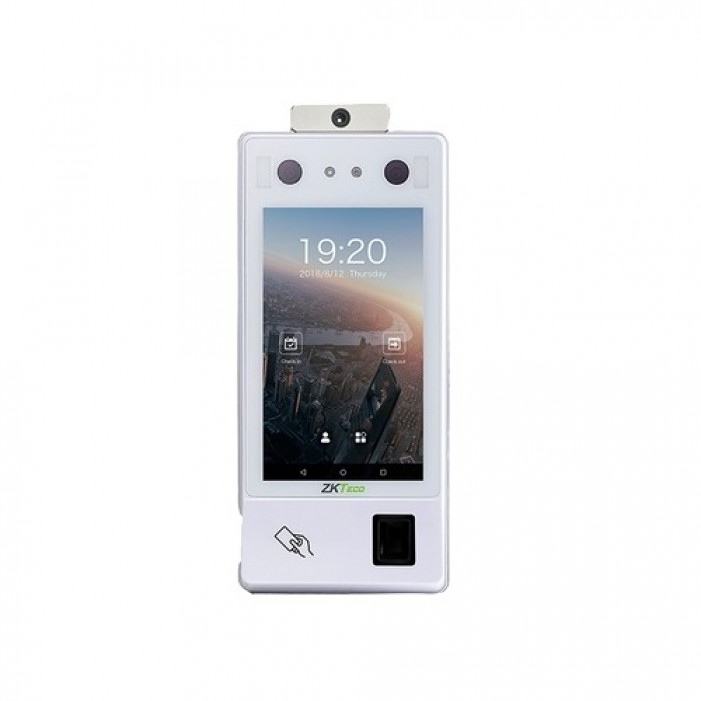

ZKteco USA - SF1007A - Android Body Temperature and Mask Detection Access Control Reader
Part number:
SF1007A
Price:
- • 7-inch touchscreen display
- • Supports up to 10,000 faces & fingerprints
- • IR based temperature sensor
- • TCP/IP and WiFi communication options
- • Dual infrared and visible light cameras
- • Superior accuracy & matching speed
- • Powerful anti-spoofing engine
- • One face template per user. No need to additionally enroll face with mask.
- • Multi frequency card reader module
- • Triggers audio/visual alarms
- • Unlock doors/gates/turnstiles
- • SDK available for Android application developers
| Hardware | |
|---|---|
| Processor | Quad-Core A17 Rockclip |
| RAM | 2GB |
| ROM | 16GB |
| Android | version 5.1 |
| Power Supply | |
| Power Requirement | 12VDC, 2A |
| Communication | |
| Network | TCP/IP |
| Wireless | WiFi |
| Wiegand | Input/Output |
| Access Control Interface | |
| Outputs | Lock Relay Output, Alarm Output, External Bell |
| Inputs | Exit Button, Door Sensor |
| Additional Info | |
| Facial Templates | 10,000 |
| Fingerprint Templates | 10,000 |
| Prox Cards | 10,000 |
| Transactions | 100,000 |
| Supported Formats | |
| HID multi-frequency | HID multi-frequency card formats |
| M01 | (ID card only) |
| IC01 | (Mifare, Desfire, CPU) |
| B133 | (ID, Mifare, Desfire) |
| Certification | |
| Standards | CE, FCC |
| Temperature Detection | |
| Body-Temperature Accuracy | 0.6°F Measurement |
| Measurement Distance | 15- 18 inches |
| Mask Detection | Yes |
| Storage Temperature | -40 to 140°F |
| Operating Temperature | 32 to 122°F |
| Storage Humidity | 20 to 90% |
Name
Description
Size
Downloads
File
SF1007A_Datasheet.pdf
0.8mb
The device is a standalone Android-based access control and biometric terminal, powered by a Quad-Core A17 processor with 2GB of RAM and 16GB of internal storage, running Android version 5.1.Its primary function is managing physical access using multiple credential types. It supports a large database of 10,000 facial templates, 10,000 fingerprint templates, and 10,000 proximity cards, and can log up to 100,000 transaction records locally. For communication, it features TCP/IP, Wi-Fi, and Wiegand interfaces, allowing it to function as a standalone reader or integrate with a larger system. It provides standard access control hardware outputs, including a lock relay, alarm output, and connections for an exit button and door sensor.
