ZKteco USA - SF1007A+ - Body-Temperature & Mask Detection with Face, Fingerprint, & Palm Recognition on Android Platform
Part number:
SF1007A+
Price:

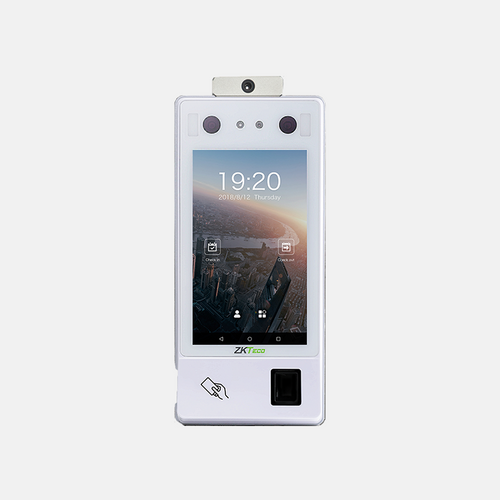

SF1007A+ is a multi-purpose biometric reader with a 7-inch display designed to provide users a touch-less check-in/out and body-temperature detection for access control, visitor management, and any other applications requiring user identification.



This Android-based biometric reader also incorporates an integrated multi-frequency prox card reader and embedded multi-biometric face, and fingerprint recognition capabilities. SF1007A+ also has an integrated thermal camera which can detect body-temperature within +/- 0.6 ° F accuracy. SF1007A+ can also be programmed to trigger an audio/visual alert and send notifications whenever elevated body temperature is detected.



SF1007A+ can also serve as a platform for Android application developers. Its embedded development kit (EDK) combined with a demo code and documentation provides Android developers all the tools required to develop their own application. SF1007A+ facilitates the rapid deployment of any third-party Android applications, thus allowing developers to go to market quickly and cost-effectively.



Ideal applications includes visitor management, access control, event management, gym membership and any other applications requiring accurate user identification with body-temperature measurement.


Features:


  • 7-inch touchscreen display
  • Supports up to 10,000 faces & fingerprints
  • IR based temperature sensor
  • TCP/IP and WiFi communication options
  • Dual infrared and visible light cameras
  • Superior accuracy & matching speed
  • Powerful anti-spoofing engine
  • One face template per user. No need to additionally enroll face with mask.
  • Multi frequency card reader module
  • Triggers audio/visual alarms
  • Unlock doors/gates/turnstiles
  • SDK available for Android application developers



Specifications


HardwareQuad-Core A17 Rockclip
2GB RAM
16GB ROM
Android: version 5.1
Power SupplyPower Requirement: 12VDC, 2A
CommunicationTCP/IP
WiFi
Wiegand Input/Output
Access Control InterfaceLock Relay Output
Exit Button
Alarm Output
Door Sensor
External Bell
Additional InfoFacial Templates: 10,000
Fingerprint Templates: 10,000
Prox Cards: 10,000
Transactions: 100,000
Supported FormatsHID multi-frequency card formats
M01 (ID card only)
IC01 (Mifare, Desfire, CPU)
B133 (ID, Mifare, Desfire)
CertificationCE
FCC
Temperature DetectionBody-Temperature Accuracy: 0.6°F Measurement
Distance: 15- 18 inches Mask Detection: Yes Storage Temperature: -40 to 140°F
Operating Temperature: 32 to 122°F
