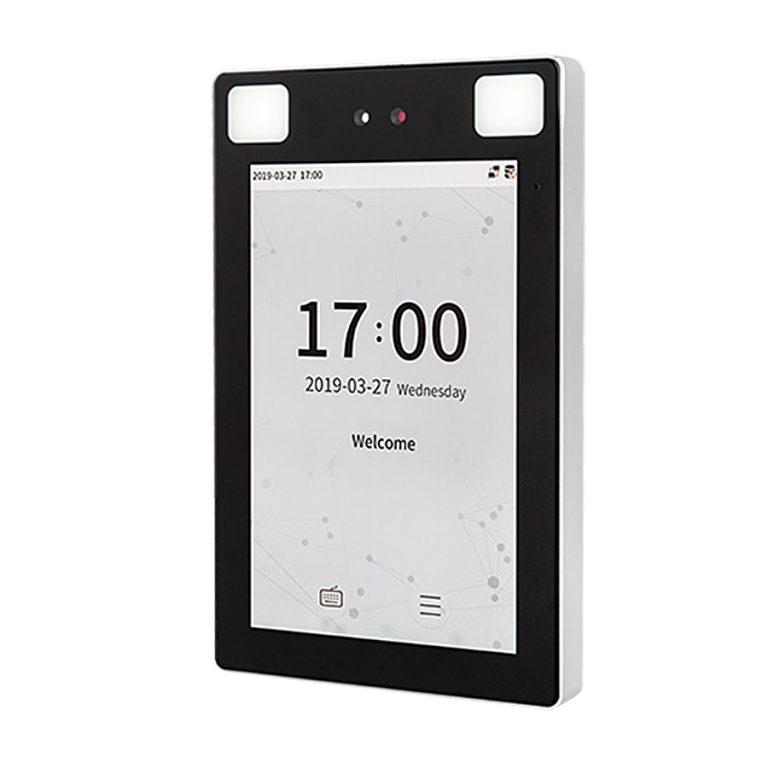

SpeedFace model SF1008-WP is a high-performance outdoor face & palm recognition reader used primarily in access control applications. It combines a powerful embedded camera and ZKTeco’s latest face & palm recognition algorithm supported by an optimized dual-core processor. SF1008- WP is unmatched in accuracy, speed and versatility. Advanced security and convenience, all on a single affordable platform. By combining the latest advancements in artificial intelligence with an optimized dual-core CPU, SF1008-WP has truly reached a new height in user authentication technology. It’s powerful embedded anti-spoofing engine can withstand almost all types of fake photo attacks. SF1008-WP can store and match up to 50,000 faces in less than 0.3 seconds per face in both extreme lighting (>50,000 lux) and severe rain conditions. It’s IP68 and IK04 rating ensures its reliable operation even in the most hostile environments. It’s 3-in-1 (Palm Shape/Print/Vein) recognition is performed in 0.35 seconds and stores up to 5,000 templates. SF1008-WP is truly the ultimate in secure, convenient, and reliable hands-free user authentication for numerous applications.
FEATURES
- 50,000 face templates (1:N)
- Rapid facial recognition within 0.3 seconds
- 8-inch touch screen with 400 lux, which offers high visibility even under strong and direct light
- Anti-spoofing algorithm protects against print attack (laser, color and B/W photos), video attack, and 3D mask attack
- The built-in microwave detector wakes up the SF1008-WP automatically when it detects people standing within 8 feet.
- Integrated 125 kHz prox card reader
- 2MP starlight SMOS sensor camera with WDR function, which enables the SF1008-WP to recognize faces under extreme lighting conditions (0.5 lux – 50,000 lux)
- Supplement lighting with adjustable brightness
- Multiple communication methods: TCP/IP, RS485, RS232, (optional Wi-Fi)
- IP68 dust-proof and waterproof standard and IK04 protection standard
- Wide range of working temperature (-30 ~ 60 degrees C; -22~140 degrees Fahrenheit
| Capacity | Faces 50,000 (1:N) Users / Cards 50,000 Transactions 1,000,000 User Photos 30,000 Event Photos 10,000 |
| Compatibility | Security Relay Box Wiegand / RS485 / RS232 Secondary Reader with Fingerprint / RFID / Barcode / QR-code Bio Security Software EntraPASS Access Control Software |
| Hardware | 900MHz Dual Core Customized AI CPU 512MB RAM / 8G Flash 8″ Bright light (400lux) IPS Touch LCD 125KHz EM Reader / 13.56MHz MF(Optional) 2MP WDR Low Light Camera Adjustable Light brightness LED Hi-Fi Voice Receiver sensitivity Microphone Distance Detection Sensor Reset Button and Tamper Switch |
| Access Control Interface: | Lock Relay Output Alarm Output / Auxiliary Input Exit Button / Door Sensor Special Functions: IP68 & IK04 0.3s Hight Speed Face Ver Live Face detection Communication Https Encrypted Optional Event Snapshot |
| Standard Functions: | Access Levels, Groups, Holidays, DST, Duress Mode (Password), Anti-Passback, Record Query, Custom Wallpaper & Screen Saver, Tamper Switch Alarm |
| Communication | TCP/IP Wiegand Input / Output Wi-Fi (Optional) RS485 / RS232 |
| Additional Info | Face Algorithm: LiveFace5.8 Working Temperature: -30°C ~ 60°C, (-22°F~ 140°F) Working Humidity: ≤93% Storage Temperature: -40°C ~ +65°C Storage Humidity: ≤93% Net Weight: 853g Dimensions (H*L*D): 227*143*26mm |
| Power | Operating Voltage 12V DC Current Draw < 2,000mA |
