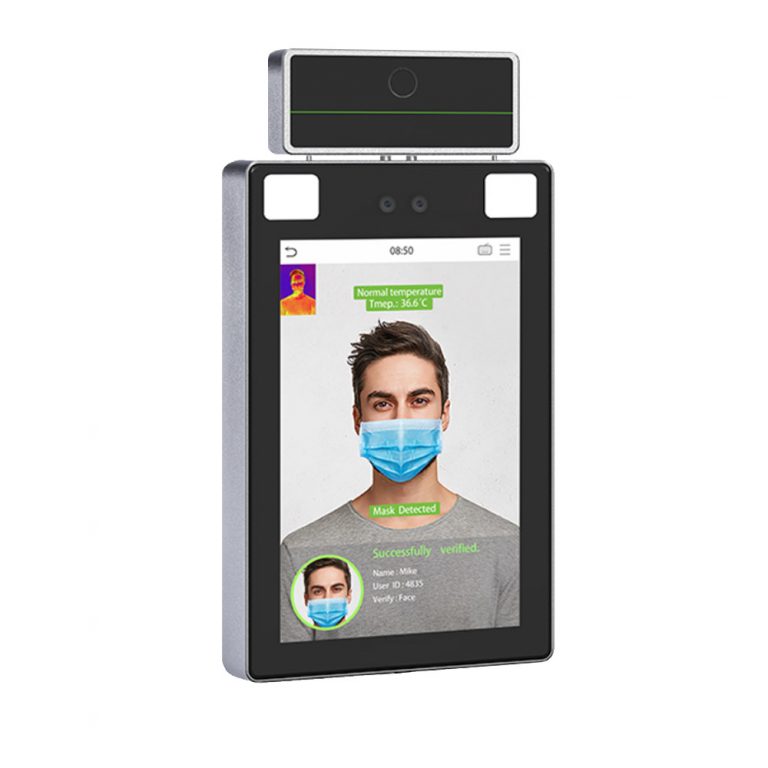

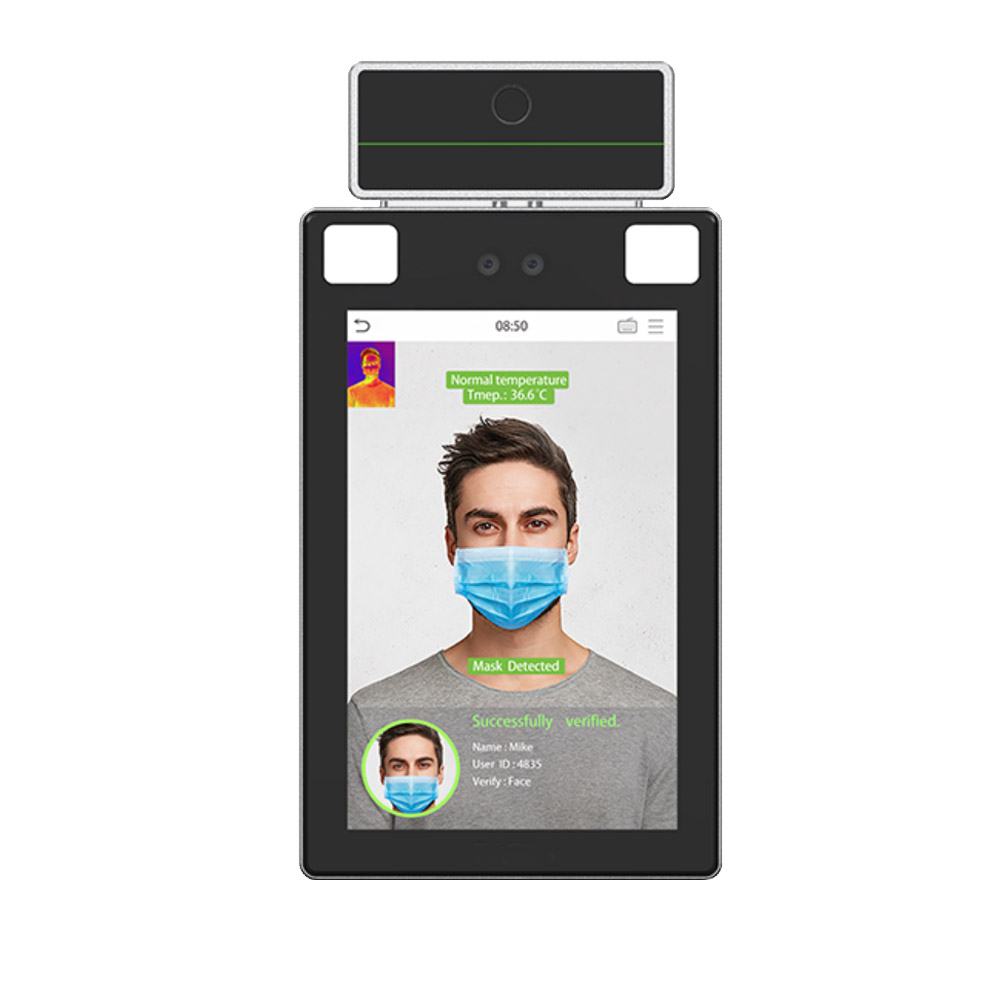

ZKteco USA - SF1008T+HID - 8" Visible Light Body Temperature + Mask Detection Reader (Thermal Imaging Sensor) with HID



Part number:
SF1008T+HID
Price:

The SpeedFace+ embedded face recognition sensor provides 100% touchless user authentication for various applications including Access Control, Time & Attendance, Visitor Management, Event Management and more. Model SF1008T+ can store and match up to 50,000 faces in less than 0.3 seconds while operating in both total darkness and bright sunlight (up to 50,000 Lux).

Body Temperature & Mask Detection

In addition to providing face, palm, and fingerprint user authentication, SpeedFace+ can detect body temperature and the presence of a protective mask being worn by both registered and unregistered users. Users can be denied door access if a user defined unacceptable body temperature or if no mask is detected.


The ability to quickly & accurately detect body-temperature and the presence of a mask is becoming increasingly important for airports, schools, commercial office buildings, and other public meeting areas. People identified having unacceptable body-temperature and their supervisors can then take appropriate action. SpeedFace+ combines a powerful embedded thermal imaging camera and ZKTeco's latest face and fingerprint recognition algorithms that are supported by an optimized     dual-core processor. SpeedFace+ is unmatched in accuracy, matching speed and versatility. It provides advanced security and convenience, all on a single affordable device.



Features:

  •  User authentication read range up to 8 feet
  •  Body-temperature read range accurate up to +/- 0.6°F
  •  Thermal Imaging Camera
  •  Model SF1008T+ stores & matches up to 50,000 face templates
  •  Face verification with or without wearing a mask
  •  Model SF1008T+ has an 8" programmable touchscreen display
  •  Intelligent energy-saving design
  •  Dual-lens IR & VL camera recognizes faces in both total darkness and bright sunlight
Body Temperature Detection: Accuracy +/- 0.6 °F  Range: 2.5 feet Sensor:Thermal Imaging Camera
Capacity: Faces: 50,000 Palms: 5,000
Compatibility: Wiegand Input Panels Wiegand Output Readers ZKBioSecurity Software ZKTeco Security Relay Box (SRB)
Hardware: 900MHz Dual Core CPU 512MB RAM/ 8G Flash 8" Touch Screen Display 2MP WDR Camera Distance Detection Sensor Reset Button & Tamper Switch
Access Control Interface: Lock Relay Output Alarm Output/Auxillary Input Exit Button/Door Sensor
Special Functions: Liveness Detection Event Snapshot
Communication: TCP/IP RS485 Wiegand Input/Output Wi-Fi
Additional Info: Face Algorithm: ZKLiveFace 5.8 Working Temp (Reader): -40°F to 140°F Working Temp (Sensor):68°F -96°F Working Humidity: 20% - 93% Storage Temp: 32ĴďǠ22°9 Storage Humidity: 20% - 90% Net Weight: 1.5 lbs Size (HxLxD): 8.9 x 5.6 x 1 inch
Power: Operating Voltage: 12V DC Current Draw: <2,000mA
