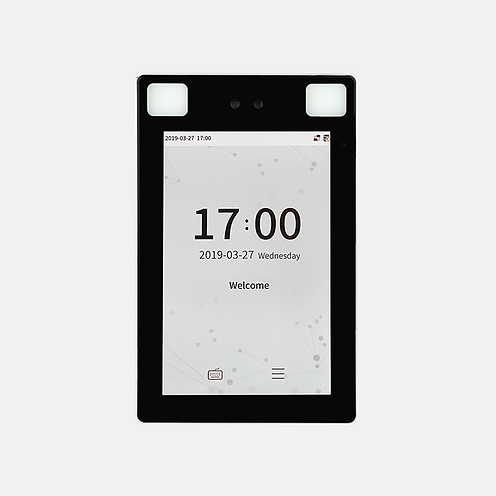

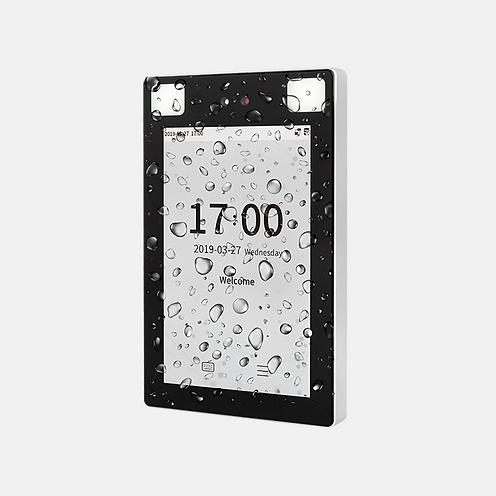

SF1008-WP-ND is a high performance outdoor face recognition reader used most commonly in access control applications. SF1008-WP can match up to 50,000 faces in less than 0.3 seconds in extreme lighting and severe rain conditions. It detects when a person stands within close proximity of the reader.
The SF1008-WP-ND can also authenticate users via Palm-Vein recogntion, card/fob & keypad.
Capacity | Faces 50,000 (1:N) Users / Cards 50,000 Transactions 1,000,000 User Photos 30,000 Event Photos 10,000 |
Compatibility | Security Relay Box Wiegand / RS485 / RS232 Secondary Reader with Fingerprint / RFID / Barcode / QR-code Bio Security Software EntraPASS Access Control Software |
Hardware | 900MHz Dual Core Customized AI CPU 512MB RAM / 8G Flash 8″ Bright light (400lux) IPS Touch LCD 125KHz EM Reader / 13.56MHz MF(Optional) 2MP WDR Low Light Camera Adjustable Light brightness LED Hi-Fi Voice Receiver sensitivity Microphone Distance Detection Sensor Reset Button and Tamper Switch |
Access Control Interface: | Lock Relay Output Alarm Output / Auxiliary Input Exit Button / Door Sensor Special Functions: IP68 & IK04 0.3s Hight Speed Face Ver Live Face detection Communication Https Encrypted Optional Event Snapshot |
Standard Functions: | Access Levels, Groups, Holidays, DST, Duress Mode (Password), Anti-Passback, Record Query, Custom Wallpaper & Screen Saver, Tamper Switch Alarm |
Communication | TCP/IP Wiegand Input / Output Wi-Fi (Optional) RS485 / RS232 |
Additional Info | Face Algorithm: LiveFace5.8 Working Temperature: -30°C ~ 60°C, (-22°F~ 140°F) Working Humidity: ≤93% Storage Temperature: -40°C ~ +65°C Storage Humidity: ≤93% Net Weight: 853g Dimensions (H*L*D): 227*143*26mm |
Power | Operating Voltage 12V DC Current Draw < 2,000mA |
