ZKteco USA - TF1700-Mifare - Weatherproof Standalone Fingerprint, Mifare Card Reader

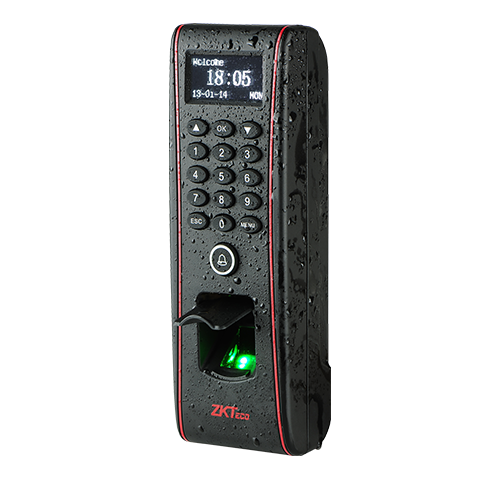

• IP65-rated waterproof and weatherproof structure
• One of the world\'s smallest fingerprint terminals
• Sleek and slim design for narrow spaces
• Fast and accurate fingerprint algorithm
• 1:3000 fingerprint identification in 1 second
• Stores 1500 fingerprint templates, 10000 CARDS and 30000 transactions
• Easy INSTALLATION and connectivity
• USB-host
• Wiegand input & output
• Network interface by TCP/IP or RS485
• Full access control features
• Access control interface for 3rd party electric lock, door sensor, exit button, alarm
• Web server
• Anti-pass back setting
| Fingerprint Sensor | Infrared detection fingerprint sensor |
| Algorithm Version | ZK Finger VX10.0 |
| Communication | TCP/IP, RS485, USB Host |
| Fingerprint Capacity | 3,000 Fingerprints(8,000 Optional) |
| Card Capacity | 10,000 Cards |
| Log Capacity | 50,000 Transactions |
| RF Card | EM(standard)/Mifare(optional) |
| Authentication | Finger/PIN/Card |
| Wiegand Signal | Wiegand input&output |
| Ingress Protection Rate | IP65 |
| Display | 128 x 64 OLED |
| Keypad | 3 x 5 keypads & doorbell |
| Sound and Interface | Buzzer and multi-color LED |
| Operating Voltage | 12VDC 3A |
| Operating Temperature | -10 °C~50 °C (14°F ~ 122°F) |
| Dimension | 62.5mm×185mm×41.5mm (W×H×D) |

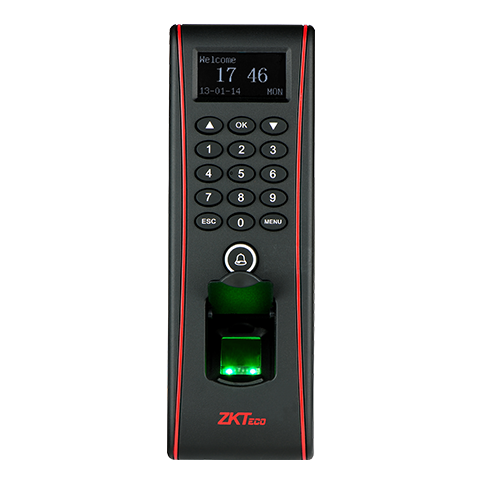

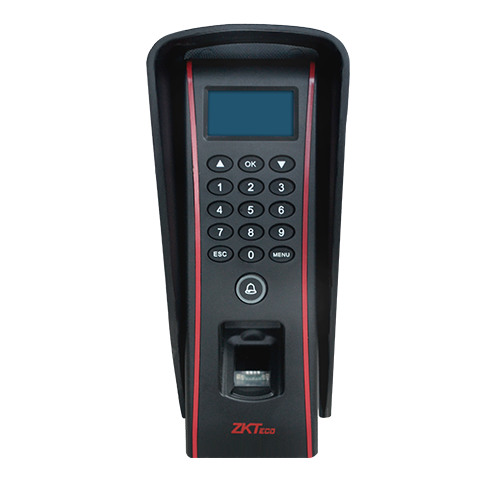

The TF1700-Mifare is one of the world’s smallest Ethernet-connection-based fingerprint terminals. It is used for access control and time and attendance features and has an IP65-rated waterproof housing. Thanks to its rugged, waterproof and dustproof IP65-rated structure, the TF1700 offers extra durability in harsh conditions such as outdoor environments. It is specially designed for standalone applications in locations such as houses, offices, shops, garages and factories. The 2013 version of the TF1700 features a sensor cover to protect the optical reader, and has been updated with new firmware that supports the versatile and powerful ZKAccess3.5 management software.
