C3 Pro Series is a next-generation series of panels having advanced access control features including anti-passback, first-card opening, multi-card opening, duress password entry, embedded card verification, and supports real-time Push protocol.
This Two-Door Pro Series Access Control panel has versatile design features to take care of present and future needs with ease and efficiency. It is one of the most rugged and reliable door controllers on the market, with a multitude of built-in features. Compatible with ZKBioSecurity management software, this expandable panel offers many possible integrations including video and elevator control.

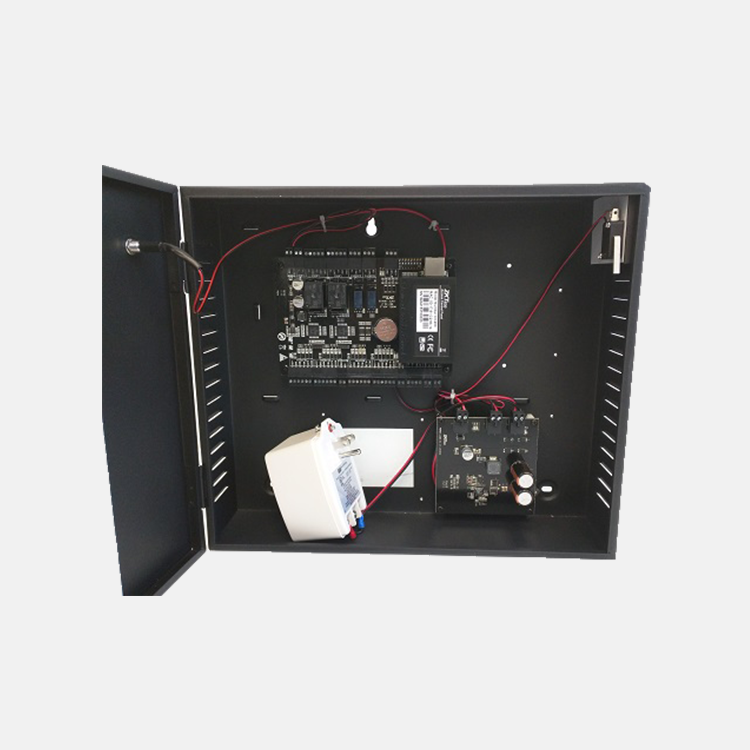

Available to order as panel only (US-C3-200-PRO), or with a metal enclosure (US-C3-200-PRO-BUN).
Features:
Model | C3-200-PRO |
Software Compatibility | ZKBioSecurity Software, only 2 Door |
Number of Doors Controlled | 8 (Wiegand readers) |
Number of Readers | 26-bit Wiegand, others upon request |
Types of Readers | 6 ( 2 for Exit button, 2 for Door status, 2 for Aux) |
Number of Inputs | 4 ( 2-from C Relay for Lock and 2-form C Relay for Aux Output) |
Number of Outputs | 30,000 |
Card Holders Capacity | 100,000 |
Log Events Capacity Weight | 10 lbs. (4.5 kg) |
Communication | TCP/IP |
Enclosure | Powder Coated Aluminum Wall |
Mounting | Mount |
Recommended Power | 12V DC, 1.5A |
Dimensions (Bundle) | 15 × 3.15 × 11 inches |

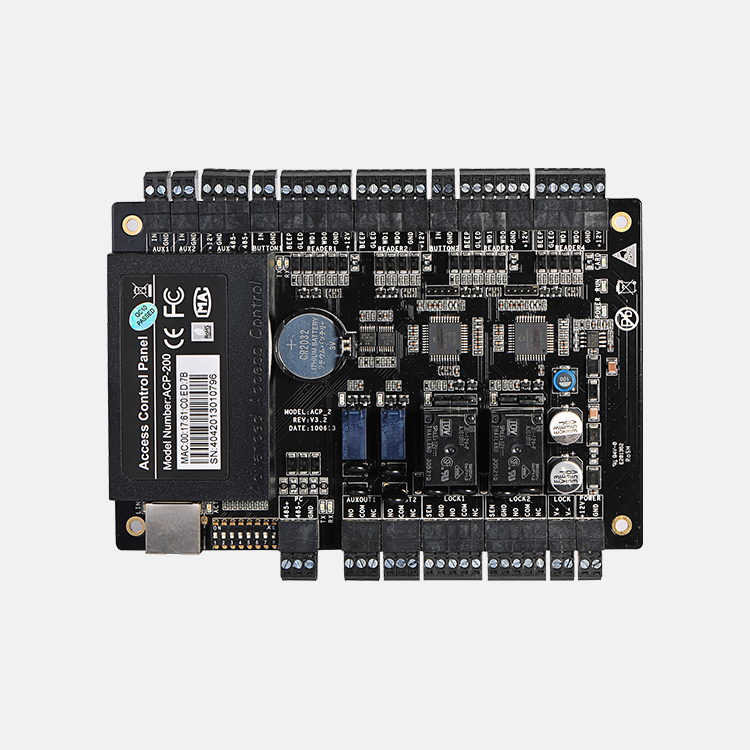

Dimensions ( Board) | 6.3 × 4.17 inches |
