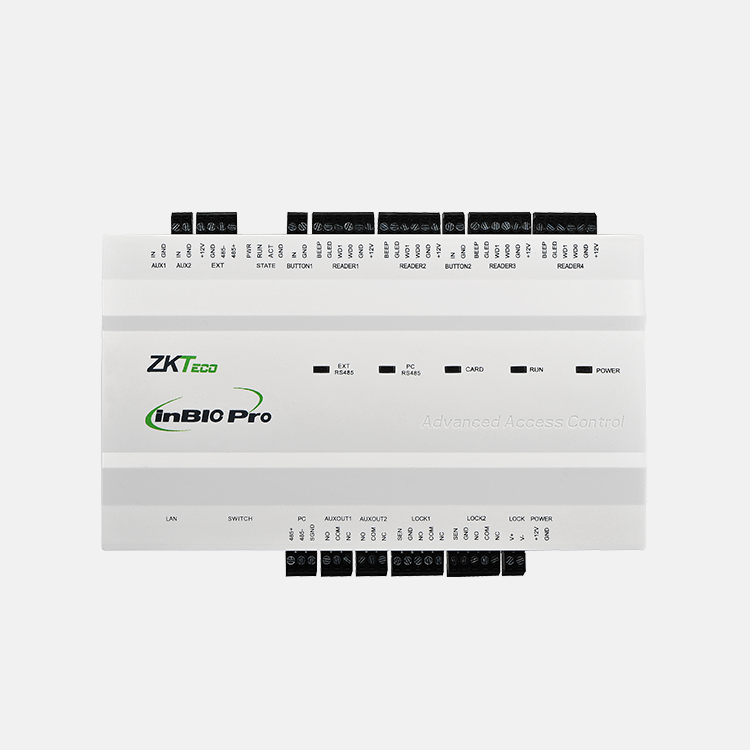

ZKTeco USA - US-inBio-260-PRO - InBio Pro Series Two-Door Biometric Access Control Panel
Part number:
US-inBio-260-PRO
Price:

InBioPro Series is a next-generation series of fingerprint & card-matching panels having advanced access control features including anti-passback, first-card opening, multi-card opening, duress password entry, embedded card verification and supports real-time Push protocol.

This Two-Door Pro Series Biometric Access Control panel has versatile design features to take care of present and future needs with ease and efficiency. It is one of the most rugged and reliable door controllers on the market, with a multitude of built-in features. Compatible with Pro Series standalone biometric readers and ZKBioSecurity management software, this expandable panel offers many possible integrations including video and elevator control.

Available to order as panel only (US-INBIO-260-PRO), or with a metal enclosure (US-INBIO-260-PRO-BUN).



Features:

  • Door Control and More: Along with relay contacts for controlling door locks, easily programmable auxiliary relays can be used for additional control and interface to lights, alarms, annunciators, intrusion detection panels, or even extra locking devices or gate controllers.
  • Communication: InBio Pro panels install easily on your network and support both TCP/IP and RS-485 communication. Auto-discovery tool allows setting and modification of network parameters directly and easily.
  • Lowest Total Cost of Ownership: InBio Pro panel firmware can be upgraded in the field. New controller features can be loaded without any advanced tools, extending and expanding the value of your investment.
  • Capacity: 20,000 fingerprints and 60,000 card holders. Panel is backed up in real-time in on-board optional SD card. Data is preserved if power is lost. Panel continues to operate even if network connection is interrupted.
  • Choice of Readers: For fingerprint-matching, select only ZKAccess FR-Series slave fingerprint readers. Full range of prox card readers supported. ZKAccess KR-Series slave card readers are stylish and waterproof. InBio Pro supports any Wieland output reader, includ-ing HID Prox, iClass, and Xceed ID Multi-Technology.
  • Options: InBio Pro panels come in three sizes to suit project needs and reduce the cost of unused capacity. 1-door, 2-door, and 4-door models can be mixed and matched in an optimized system architecture.
  • Built-In Advanced Access Control: Anti-Pass-back, First-Card Opening, MultiCard Opening, Duress Password Entry, and Auxiliary Input/Output Linkages are built into the firmware.
  • For Software Developers: Free SDK is available for integrators and OEM’s to integrate the InBio Pro panels with their existing security or personnel management applications. Upon request, ZKAccess can also customize InBioPro firmware to meet any custom requirements.
ModelInBio 260-PRO
Software CompatibilityZKBioSecurity software, only 2 Door
Number of Doors Controlled8 ( 4 RS-485 readers and 4 Wiegand readers)
Number of Readers26-bit Wiegand, others upon request
Types of Readers6 ( 2 for Exit button, 2 for Door status, 2 for Aux)
Number of Inputs4 ( 2-form C Relay for Lock and 2-form C relay for Aux Output)
Number of Outputs Capacity20,000 fingerprints / 60,000 card holders
Number of Inputs Capacity100,000
Log Events Capacity Weight10 lbs (4.5 kg)
CommunicationTCP/IP
EnclosurePowder Coated Aluminum Wall
MountingMount or DIN rail
Recommended Power12V DC, 1.5A
Dimensions7.5 x 5.5 inches



Name
Description
Size
Downloads
File
Datasheet
1.9mb
