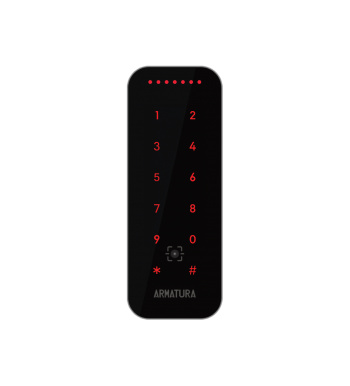

ZKTeco - VG10CKQ-LHF - Multi-Tech RFID and Mobile Credential Reader with Keypad
Product Overview
The ZKTeco VG10CKQ-LHF is a multi-tech RFID and mobile credential reader with keypad designed for secure and convenient access control. It supports multiple authentication methods, including RFID card and password access, making it suitable for residential, hospitality, and professional access control environments.
Key Configuration
Multi-tech RFID and mobile credential reader with keypad; supports RFID card and password authentication; designed for residential and hospitality access control applications.
Key Features
• Supports multiple authentication methods, including RFID card and password
• Integrated keypad enables password-based access control
• Designed for residential and hospitality applications
• User-friendly operation and management support convenient daily use
• Enhances access security while maintaining flexible user access
Technical Context
The VG10CKQ-LHF combines card-based credential reading with keypad authentication to provide flexible access control options. Its integrated control features help support secure entry workflows in environments where convenience and user access management are both important.
Installation Notes
The product is categorized under ZKTeco access control keypads, readers, and smart readers. The listed country of origin is Thailand and may be subject to change.
| Technical Specifications | |
| Model Name | VG10CKQ |
| Operating Frequency / Standards | 125 kHz 13.56 MHz: ISO14443 types A & B, ISO15693 2.4 GHz Bluetooth |
| Functions | RFID, Bluetooth and QR code |
| Keypad | Touch Keypad |
| QR Code Scanner | Supported |
| QR Code Scanning Pattern | Area image (640*480 pixel array) |
| QR Code Scan Angle | Horizontal: 68° / Vertical: 51° |
| QR Code Capability | One-Dimensional Code: Code 128, Code 39, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey Two-Dimensional Code: QR Code, Micro QR |
| QR Code Scanning Performance* | Narrow Width: 9mil（QR）, 15mil（QR）, 20mil（QR）, 6mil（Code128）, 9mil（Code128）, 15mil（Code128）, 20mil（Code128） Depth of Field: 1.5''-2.5''（40mm-65mm), 0.3''-4.3'' (10mm-110mm), 0.5''-4.5'' (15mm-115mm), 1.7''-3.7'' (45mm-95mm), 0.9''-5.1'' (25mm-130mm), 0.9''-6.1'' (25mm-155mm), 1.7''-5.5'' (45mm-140mm) |
| Communications & Panel Connection | Wiegand OSDP (v2.2) via RS-485 (Up to 128bits SCP Secure Communication) |
| Reading Distance | 13.56MHz & 125kHz: Up to 2.3" / 60 mm (depending on environment and transponder) Up to 393.7" / 10m with a Bluetooth Smartphone (configurable distances on each reader) |
| Data Protection | AES128 (Secured Communication between Reader & Controller) Secure Data Storage in EAL6+ Certified Crypto Chip |
| Visual Indicator | RGB LEDs (Configurable By 'Armatura Connect' Mobile APP) |
| Audio Indicator | Internal buzzer with adjustable intensity (Configurable By 'Armatura Connect' Mobile APP) |
| Power Requirement / Power Supply | 9 VDC to 24 VDC (Below 0 degrees, the reader needs separate power supply. Above 0 degrees, a single reader requires a minimum of 2.4W power. Below 0 degrees, a single reader requires a minimum of 8W power) |
| Operating Temperature | -4°F - 122°F / -20°C~50°C |
| Dimensions | 4.78" W x 1.77" H x 0.96" D (121.5 x 45 x 24.5mm) |
| Tamper Switch | Magnetic tamper detection system |
| Certifications | CE, FCC, RoHs3.0, WEEE, UL294 (Coming Soon), IEC EN / BS EN 60839 Grade 4 |
| Mounting | Suited for mullion-mount door installations or any flat surface mounting |
| Protection / Resistance | Weather & Dust Proof Protection Rating compliant with IP66 Reinforced Vandal-proof Structure IK07 certified |
