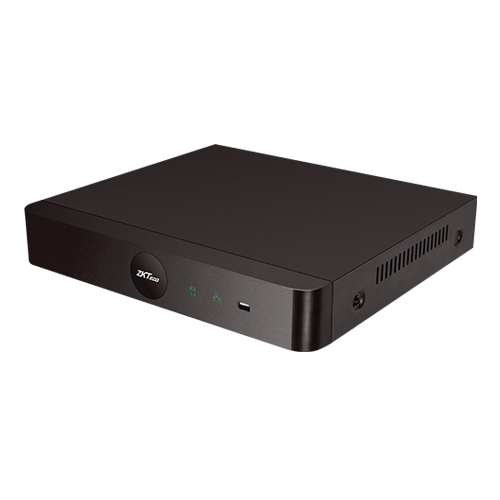

ZKteco USA - Z8504NER-4P - 4CH H.265 PoE NVR without HDD
ZKTeco Z8000NER-4P/8P series NVR are built-in with power-over-ethenet (POE) for IPC connection, no extra power supply and switch needed for IPC deployment, plug & play, easy installation. The NVR could deliver up to 5MP resolution excellent image over advanced H.265+ decoding. It’s an ideal consideration for the balance of quality, performance, and budget.
The user-friendly GUI provides intuitive shortcut operations, remote control, management, flexible storage, and playback. Powered by the reliable interoperability and ONVIF Profile S, it’s compatible with plenty of 3rd-party IPC or crossing platform VMS. The devices can be used in governmental institutions, bank sectors, manufacturers, educational or commercial projects.
Features:
- H.265+/H.265/H.264 decoding
- Support 4- or 8-channel 5MP IP cameras input & preview
- Support 4- or 8-channel real-time playback synchronously
- With 4/8 POE ports for plug & play
- Super POE up to 250m long distance transmission
- HDMI output up to 1080P high definition
- Intelligent video analytics functions (up to IPC)
- DHCP, DNS, DDNS, NTP, UPNP, RTSP, etc.
- Support multiple web browsers login
- P2P cloud service supported
- ONVIF Profile S compatible
| Model | Z8504NER-4P | Z8508NER-8P |
| System | ||
| Main Processor | Multi-core embedded processor | |
| Operating System | Embedded LINUX | |
| Video and Audio | ||
| Max IPC Input | 4CH | 8CH |
| Two-way Talk | Support | |
| Audio Compression | G.711u | |
| Live View | ||
| Display Split | 1/4 CH | 1/4/8 CH |
| Resolution | 5MP(2592*1944) / 2MP(1920*1080) / 1.3MP(1280*1024) / 1MP(1280*720) / D1(1024*768) | |
| Live View Capability | 4CH@5MP(25/30fps) 8CH@5MP(25/30fps) | |
| Recording | ||
| Video Compression | H.265+ / H.265 / H.264 | |
| Recording Resolution | 5MP/4MP/3MP/1080P/960P/720P/D1 | |
| Max. Decoding Capability | 4CH@5MP(25/30fps) | 4CH@5MP(25/30fps)/8CH@D1(25/30fps) |
| Incoming Bandwidth | 40 Mbps | |
| Bit Rate | Main Stream: 256Kbps ~ 8192Kbps | |
Sub Stream: 50Kbps ~ 700Kbps | ||
| Record Mode | Schedule, Manual, Motion Detection, IVA Events Alarm | |
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec | |
| Playback and Backup | ||
| Playback Channel | 4CH | 8CH |
| Search Mode | Time/ Date, Alarm Types, IVA Search, Face Retrieval | |
| Playback Function | Play, Stop, Play Forward, Play Backward, 30 Seconds Forward, 30 Seconds Backward, Fast Play, Slow Play, Single Frame Play, Hide/Show Time Bar, Backup, Snapshot, Full Screen | |
| Backup Mode | USB Device / Network Remote | |
| IVA Alarm | ||
| Local IVA Functions | Line Crossing / Target Counting / Object Left/Lost / Intrusion / Scene change / VQD |
| Regular Detection | Motion Detection/ Video Shelter/ Video Loss |
| AI Search | Support search target video by multiple intelligent conditions |
| Network |
| Network Protocol | TCP/IP, HTTP, DDNS, SMTP(SSL), DHCP, PPPoE, UPnP, NTP, P2P |
| Max. Online User | 5 |
| Web Browser | Internet Explorer |
| Operation System | Windows |
| Management Platform | AntarVis 2.0 |
| Mobile Application | AntarView Pro (iOS & Android) |
| P2P Cloud Service | Support |
| Interoperability | ONVIF Profile S, SDK, CGI, API |
| Storage & Auxiliary Interface | ||
| SATA Ports | 1 SATA Port, up to 8 TB capacity | |
| eSATA | N/A | |
| Raid 0/1/5/6/10 | N/A | |
| HDMI | 1*HDMI (1080p) | |
| VGA | 1920*1080/60Hz, 1280*1024/60Hz | |
| Network Interface | 1 RJ-45 Port (100Mbps) | |
| PoE Ports | 4 | 8 |
| USB | 2*USB 2.0 | |
| Audio Input/Output | 0/1 | |
| Alarm Input/Output | N/A | |
| RS-485 | N/A | |
| Power | ||
| Power Supply | DC 48V/1.5A | DC 48V/2.5A |
| Power On/Off Switch | N/A | |
| Power Consumption | NVR: 15W (without HDD) | |
PoE ports: 15W for each output up to 250m transmission | ||
| General | ||
| Casing | 1U | |
| Working Temperature | -10°C ~ 55°C / 14°F ~ 131°F | |
| Working Humidity | 10% ~ 90% | |
| Dimensions (L*W*H) | 255 * 210 * 43 (mm) | |
| Net Weight | 2.5kg (without HDD) | |
| Gross Weight | 3kg (without HDD) | |
