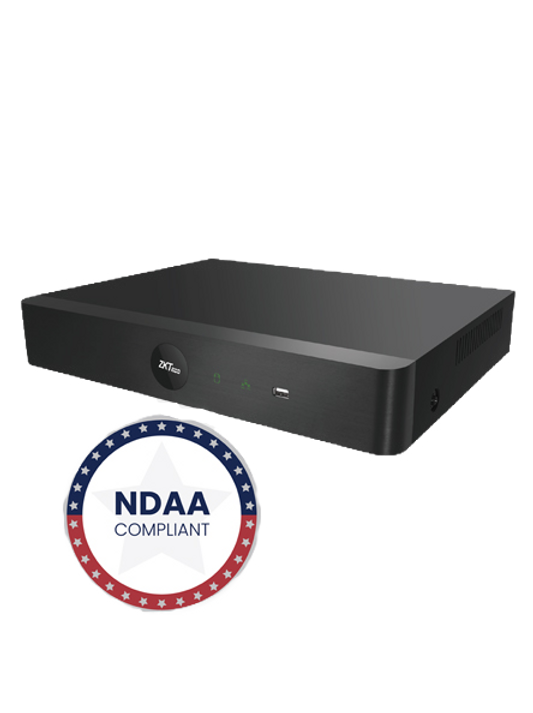

NVR of the Z8000NEQ series 8/16CH models could deliver up to 5MP resolution excellent image over advanced H.265 decoding. It’s an ideal consideration for the balance of quality, performance, and budget.
The user-friendly GUI provides intuitive shortcut operations, remote control, management, flexible storage, and playback. Powered by the reliable interoperability and ONVIF Profile S, it’s compatible with plenty of 3rd-party IPC or crossing platform VMS. The devices can be used in governmental institutions, bank sectors, manufacturers, educational or commercial projects.
Features:
H.265/H.264 decoding
Support 8- or 16-channel 5MP IP cameras input & preview
Support 4-channel real-time playback synchronously
HDMI output up to 1080P high definition
Intelligent video analytics functions
TCP/IP, DHCP, DDNS, SMTP, NTP, UPNP, RTSP, etc.
P2P cloud service supported
ONVIF Profile S compatible
| Specification | ||
| Model | Z8508NEQ | Z8516NEQ |
| System | ||
| Main Processor | Multi-core embedded processor | |
| Operating System | Embedded LINUX | |
| Video and Audio | ||
| Max IPC Input | 8CH | 16CH |
| Two-way Talk | Support | |
| Audio Compression | G.711u | |
| Live View | ||
| Display Split | 1/4/6/8 CH | 1/4/6/9/16 CH |
| Resolution | 5MP(2592*1944) / 2MP(1920*1080) / 1.3MP(1280*1024) / 1MP(1280*720) / D1(1024*768) | |
| Live View Capability | 1CH@5MP / 8CH@D1(25/30fps) | 1CH@5MP / 16CH@D1(25/30fps) |
| Recording | ||
| Video Compression | H.265 / H.264 | |
| Recording Resolution | 5MP/3MP/1080P/960P/720P/D1/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Max. Decoding Capability | 8CH@5MP (25/30fps) | 16CH@5MP (25/30fps) |
| Incoming Bandwidth | 60 Mbps | 80 Mbps |
| Bit Rate | Main Stream: 16Kbps ~ 8192Kbps | |
Sub Stream: 50Kbps ~ 700Kbps | ||
| Record Mode | Schedule, Manual, Motion Detection, IVA Events Alarm | |
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec | |
| Playback and Backup | ||
| Playback Channel | 4CH synchronously playback | |
| Search Mode | Time/ Date, Alarm Types, IVA Search | |
| Playback Function | Play, Stop, Play Forward, Play Backward, 30 Seconds Forward, 30 Seconds Backward, Fast Play, Slow Play, Single Frame Play, Hide/Show Time Bar, Backup, Snapshot, Full Screen | |
| Backup Mode | USB Device / Network Remote | |
| IVA Alarm | ||
| Local IVA Functions | Tripwire / Target Counting / Counting Statistics/Object Left/Lost / Intrusion |
| Regular Detection | Motion Detection / Video Shelter / Video Loss |
| AI Search | Support search target video by multiple intelligent conditions |
| Network | |
| Network Protocol | TCP/IP, UDP, HTTP, DDNS, SMTP(SSL), DHCP, RTSP, NTP, P2P |
| Max. Online User | 20 |
| Web Browser | Internet Explorer/Microsoft Edge |
| ANR (Automatic Network Replenishment) | Support |
| Operation System | Windows |
| Management Platform | AntarVis 2.0 |
| Mobile Application | AntarView Pro (iOS & Android) |
| P2P Cloud Service | Support |
| Interoperability | ONVIF Profile S, SDK, CGI, API |
| Storage & Auxiliary Interface | |
| SATA Ports | 1 SATA Port, up to 12 TB capacity |
| eSATA | N/A |
| Raid 0/1/5/6/10 | N/A |
| HDMI | 1*HDMI (1080P) |
| VGA | 1920*1080/60Hz, 1280*1024/60Hz |
| Network Interface | 1 RJ-45 Port (10/100Mbps) |
| PoE Ports | N/A |
| USB | 3*USB 2.0 |
| Audio Input/Output | 0/1 output |
| Alarm Input/Output | N/A |
| RS-485 | N/A |
| Power | |
| Power Supply | DC 12V/2A |
| Power Consumption | 24W (without HDD) |
| General | |
| Casing | 1U |
| Working Temperature | -10°C ~ 55°C / 14°F ~ 131°F |
| Working Humidity | 0% ~ 90% |
| Dimensions (L*W*H) | 255 * 210 * 43 (mm) |
| Net Weight | 2.5kg (without HDD) |
| Gross Weight | 3kg (without HDD) |
| Order Information | |
Name | Model | Description |
NVR | Z8508NEQ | 8CH H.265 NVR, 1SATA |
Z8516NEQ | 16CH H.265 NVR, 1SATA |
