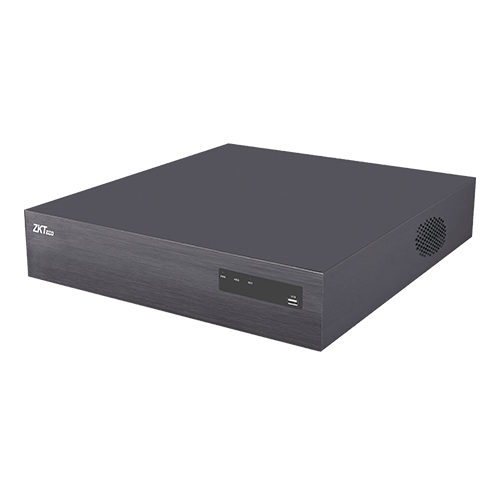

ZKteco USA - Z8564NHR - 64CH H.265 Non-PoE NVR Without HDD
Part number:
Z8564NHR
Price:
NVR of the Z8000NHR series could deliver up to 4K resolution excellent image over advanced H.265+ decoding. It’s an ideal consideration for the balance of quality, performance, and budget.
The user-friendly GUI provides intuitive shortcut operations, remote control, management, flexible storage, and playback. Powered by the reliable interoperability and ONVIF Profile S, it’s compatible with plenty of 3rd-party IPC or crossing platform VMS. The devices can be used in governmental institutions, bank sectors, manufacturers, educational or commercial projects
Features:
- H.265+/H.265/H.264 decoding
- Support 36- or 64-channel 4K IP cameras input
- Support 16 channels real-time playback synchronously
- HDMI output up to 4K high definition
- Intelligent video analytics functions (up to IPC)
- DHCP, DNS, DDNS, NTP, UPNP, RTSP, etc.
- Support multiple web browsers login
- P2P cloud service supported
- ONVIF Profile S compatible
| Model | Z8536NHR | Z8564NHR |
| System | ||
| Processor | Multi-core Embedded Processor | |
| Operation System | Embedded Linux | |
| IVA Alarm | ||
| Local IVA Functions | Target Counting, Object Detection, Intrusion, Tripwire | |
| Regular Detection | Motion Detection/Video Tampering/Video Loss | |
| I/O port and Storage | ||
| Network Interface | 2 RJ-45 port (100/1000Mbps) | |
| USB | 1*USB 2.0,1*USB 3.0 | |
| HDMI | 1*4K HDMI | |
| VGA | 1*VGA | |
| Alarm Input | 4 | |
| Alarm Output | 4 | |
| HDD | 9 SATA, up to 8TB capacity for each HDD | |
| RAID | Raid 0/1/5/6/10 | |
| Playback and Backup | ||
| Playback Channel | 16 | |
| Search Mode | IVA Search/Time/Motion Detection | |
| Playback Function | Play, Stop, Play forward, Play backward, 30 seconds forward, 30 seconds backward, Fast play, | |
| Slow play, Single frame play, Hide/Show the time bar, Backup, Snapshot, Full screen | ||
| Video/Audio | ||
| Max. IPC Input | 36 | 64 |
| Audio Compression | G.711a | |
| Two-way Talk | 1 Channel Input, 1 Channel Output, RCA | |
| Recording | ||
| Video Compression | H.265+/H.265/H.264+/H.264 | |
| Recording Resolution | 8MP/5MP/3MP/1080P/960P/720P | |
| Incoming Bandwidth | 216Mbps | 512Mbps |
| Bitrate | 16K-32Mbps | |
| Record Mode | Manual/External Alarm/Motion/Scheduled/IVA Alarm | |
| Network | ||
| Network Protocol | TCP/IP, HTTP, DDNS, SMTP(SSL), DHCP, PPPoE, UPnP, NTP, P2P | |
| Max. Online User | 5 | |
| Mobile App | Antarview Pro | |
| Interoperability | Onvif Profile S, SDK | |
| Power | ||
| Power supply | ATX (AC100~240V) | |
| Consumption | 35W(Without HDD) | |
| General | ||
| Working Temperature | -10℃~+55℃ | |
| Working Humidity | 10~90% | |
| Dimensions | 412mm*430mm*87mm | |
| Net Weight | 7KG | |
| Gross Weight | 7.5KG | |
