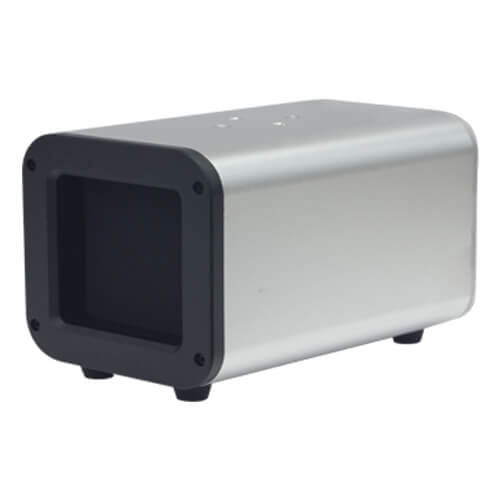

ZKTeco USA - ZN-TH01 - Body Temperature Portable Blackbody
Part number:
ZN-TH01
Price:
Body Temperature Portable Blackbody
Features:
- Temp Range: 5°C - 50°C
- Accuracy: 0.2°C
- Dimensions: 110 x 120 x 180 mm
- Weight: 1.8 kg
| Specification | |
| General | |
| Temperature Range | 30.0 ~ 50.0°C (86 ~ 122°F) |
| Emission Area | 72mm x 72mm |
| Temperature Detected Resolution | 0.01°C (32.018°F) |
| Accuracy | ±0.2°C or ±32.36°F (@Factory calibration, ambient temperature 23±5°C or 73.4±41°F) |
| Stability | ±0.15°C or ±32.27°F per 10 minutes |
| Emissivity | 0.97±0.02 |
| Power Supply | DC24V |
| Working Temperature | 0 ~ 40°C or 32 ~ 104°F |
| Working Humidity | 20 ~ 90% RH |
| Dimensions (L*W*H) | 180 * 110 * 110 (mm) |
| Weight | 1.4kg |
Name
Description
Size
Downloads
File
Datasheet
0.5mb
File
Principle of Access Control with Infrared Temperature Sensor
5.2mb
File
Principle of Access Control with Mask Detection
4.8mb
