Arecont Vision - 3212-7000 - AI Storage Appliance 4-Port PoE Switch
The CoHuHD Costar 3212-7000 is an adaptive recoding appliance designed to work with the 3212-2000 Thermal Imaging Radiometric Detection Camera. This network recording appliance is designed to work with up to 4 thermographic cameras.
Offered in a 3TB and 6TB option the flexible storage options will allow you to store as much or a little footage as you desire. The integrated PoE switch allows for a quick, simple, and effortless installation between the camera and the recording appliance.
Designed for use with the 3212-2000
|
|
Thermal Imaging Radiometric |
|
|
Detection Camera |
|
|
• 3TB and 6TB storage models |
|
|
• 1 RJ45 10M/100M network interface |
|
|
• Integrated 4 port 10M/100M PoE |
|
|
network switch |
|

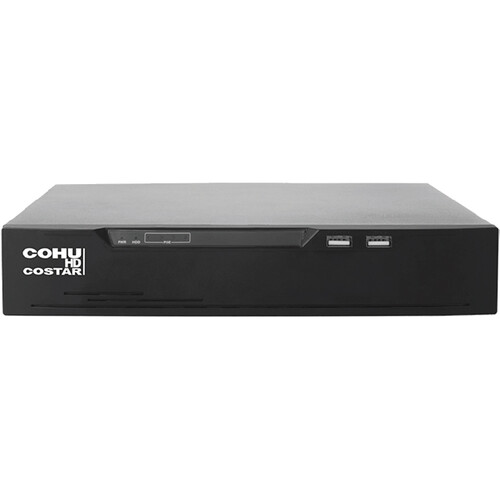

3212-7000 Front |
• Simultaneous HDMI and VGA Output |
|
V I D E O O U T P U T |
|
|
Interface |
1 HDMI, 1 VGA |
|
HDMI Output |
3840×2160, 1920×1080, |
|
|
1440×900, 1280×1024 |
|
VGA Output |
1920×1080, 1280×1024, |
|
|
1280×720 |
|
Multi-Screen Display |
Mirrored displays with up to |
|
|
4 video panes |
|
R E C O R D I N G |
|
|
Record Mode |
Manual, Schedule (Regular, |
|
|
Continuous), Motion |
|
|
Detection, Video Loss, |
|
|
Camera Tamper, |
|
|
Alarm in. |
|
Trigger Events |
Motion Detection, |
|
|
Video Loss, Alarm in |
|
V I D E O D E T E C T I O N A N D A L A R M |
|
|
Trigger Events |
Recording, Buzzer, Push |
|
|
message, Pop up message. |
|
Video Detection |
Motion Detection, Video |
|
|
Loss, Camera Tamper |
|
P L A Y B A C K A N D B A C K U P |
|
|
Sync Playback |
4/1 |
|
Search Mode |
Time /Date, Alarm, |
S T O R A G E
Internal HDD
I N T E R F A C E
Audio I/O
Alarm Input
Alarm Output
USB
E L E C T R I C A L
Power Supply
Power Consumption
M E C H A N I C A L
Dimensions
Net Weight
E N V I R O N M E N T A L Operating Temp. Storage Conditions
C E R T I F I C A T I O N S CE, FCC
1 SATA HDD, up to 6TB
1 Input, 1 Output
4Inputs
1Output
2ports (USB 2.0)
48VDC/1.25A
< 5W (without HDD)
255(W) × 235(D) × 47.5(H)mm 10(W) × 9.25(D) × 1.87(H)in. 3.4lbs. (1.54kg)
-10°C ~ 50°C (14°F ~ 122°F) Less than 90% RH
3212-2000 D I M E N S I O N S
|
Dimension |
3212-7000 |
|
|
|||||
|
Inches |
|
|
mm |
|
||||
|
|
|
|
|
|
|
|||
|
A |
10 |
255 |
|
|||||
|
B |
9.25 |
235 |
|
|||||
|
C |
1.87 |
47.5 |
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
A
B
C
|
|
Picture grid, Event |
|
Backup Mode |
USB Device |
|
N E T W O R K |
|
|
Interface |
1 RJ-45 port (10/100Mbps) |
|
PoE Interface |
4 ports (IEEE 802.3af), 40W |
|
Network Function |
HTTP, HTTPS, TCP/IP, IPv4, |
|
|
UPnP, UDP, RTSP, SMTP, |
|
|
NTP, DNS, DHCP, P2P, IP |
|
|
Filter, DDNS, 802.1X, SNMP |
|
Remote Users |
9 users |
|
Interoperability |
ONVIF, SDK, CGI |
