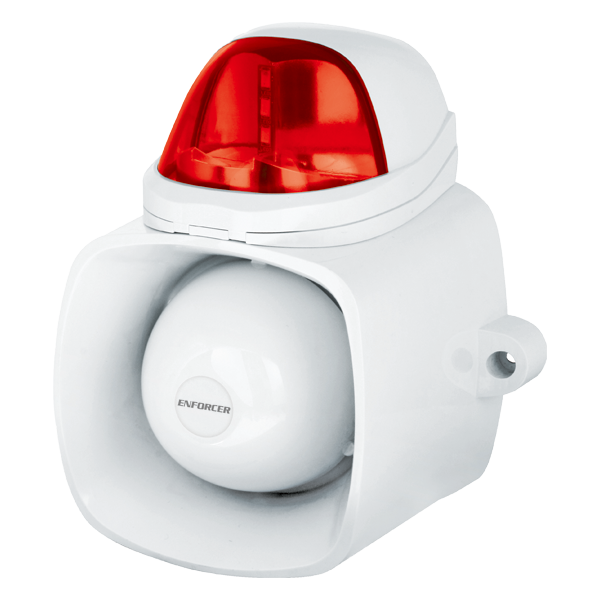

SECO-LARM - SH-816S-SMQ/R - 4-in-1 Multi-Purpose Red Siren Up to 2MB, WAV or MP3

Part number:
SH-816S-SMQ/R
Price:

The ENFORCER 4-in-1 Multi-Purpose Siren/Strobe combines four communication and signaling functions in one device — siren, internal message playback, public address broadcast, and (on the SH-816S-SMQ model) an LED strobe. It can serve as a daily-use public address system when connected to an external source, and depending on the situation, can also sound a warning siren, play back a pre-recorded message or custom sound from internal memory, or function as a PA broadcast system. The SH-816S-SMQ strobe is available with amber, blue, clear, or red lenses for flexible visual signaling.



Key Features:
• Functions: Siren/strobe, custom emergency message playback, and public address (PA) system.
• Alert modes: Strobe, siren, pre-recorded audio, or live broadcast.
• Audio sources: Built-in siren, onboard MP3/WAV files, or external PA input.
• Custom messages: Upload MP3/WAV files (up to 2 MB) via micro-USB.
• Power: 9–15V DC with low current consumption.
• Alarm inputs: 2 × inputs; Input 1 activates a 115 dB siren, Input 2 overrides Input 1 to play a custom message.
• PA speaker: 20W output; PA broadcasts override both alarm inputs (max input 2V).
• Security: Built-in tamper alarm output.
• Protection: IP65-rated for indoor and outdoor use.

TypeSiren/Strobe
Operating voltage9~15 VDC
Current Draw (max.) – Strobe50mA@12VDC
Current Draw (max.) – Siren1A@12VDC
Current Draw (max.) – Both1050mA@12VDC
Siren volume115dB
Speaker rating20W Peak
Strobe flash rate60 per minute
Tamper output100mA@30 VAC/VDC
IP ratingWeatherproof IP65
Operating humidity0~95%
Operating temperature-4°~131° F (-20°~55° C)
Housing materialWhite polycarbonate plastic
Lens ColorRed
Dimensions6-1/8″x7″x4-1/2″ (155x178x115 mm)
Weight2-lb 2-oz (957g)
