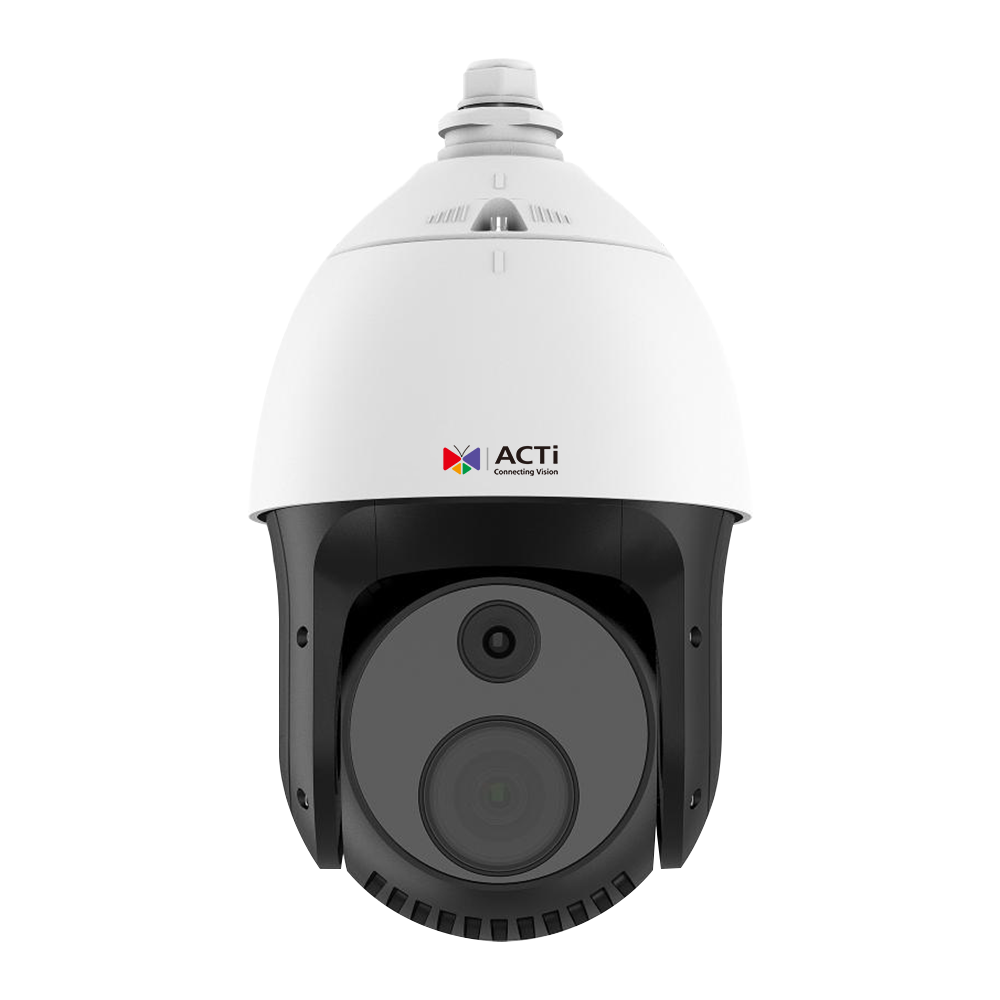

• 4 Megapixel, 32x, Thermal PTZ
• Aperture F1.0, IR LED 100m, Superior WDR (120 dB)
• Two-way Audio
• PTZ Auto Tracking, 360° endless
• Smart Intrusion Protection
• DI/DO
• Overheating Detection, Fire Detection, Thermal Surveillance
• Thermal Resolution 256(H) X 192(V), NETD <35mK
| Product Profile | |
|---|---|
| Product Type | Thermal PTZ |
| Product Application | Overheating Detection, Fire Detection, Thermal Surveillance |
| Application Environment | Outdoor |
| Maximum Resolution | 4MP |
| Image Sensor | Progressive Scan CMOS + Thermal sensor |
| Sensor Size | Optical: 1/2.8" |
| Effective Pixels | Thermal: 256(H) X 192(V) Optical: 2688(H) X 1520(V) |
| Pixel Interval | 12 μm |
| Spectral Range | 8-14 μm |
| Thermal Sensitivity | NETD <35mK at F1.0 |
| Spatial Resolution | 1.2 mrad |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.05 lux at F1.2 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 100m |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Number of Lenses | 2 Lenses |
| Focal Length | Fixed focal, f10mm (Thermal camera) Zoom, f4.8-153mm (Visual camera) |
| Aperture | (Thermal camera) F1.0 (Visual camera) F1.2-F4.4 |
| Zoom Ratio | 32x optical zoom |
| Horizontal Viewing Angle | (Thermal camera) 18.1° (Visual camera) 58.8° - 2.18° |
| Vertical Viewing Angle | (Thermal camera) 13.6° (Visual camera) 34.4° - 1.2° |
| PTZ | |
| Manual Panning / Tilting Speed | 0.1° - 200°/second, 0.1° - 105°/second |
| Preset Panning / Tilting Speed | 240°/second, 200°/second |
| Panning Range | 360° endless |
| Tilting Range | -5°~90° (with E-flip) |
| Video | |
| Compression | H.265 Adaptive Stream (equivalent to Zip or Smart Stream or H.265+), H.264 Adaptive Stream (equivalent to Zip or Smart Stream or H.264+), MJPEG |
| Maximum Frame Rate vs. Resolution | (Visual camera) 30 fps at 2688 x 1520 30 fps at 1920 x 1080 30 fps at 1280 x 960 30 fps at 1280 x 720 30 fps at 704 x 576 30 fps at 352 x 288 (Thermal camera) 25 fps at 1280 x 720 30 fps at 704 x 576 30 fps at 640 x 512 30 fps at 256 x 192 |
| Multi-Streaming | Simultaneous dual streams |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | Superior WDR (120 dB) |
| Image Enhancement | White Balance, Brightness, Contrast, Sharpness, Automatic gain control (AGC), Defogging |
| Built-in Analytics | Smart Intrusion Protection, People Line Crossing Detection, People Intrusion Detection, People Enter Area Detection, People Exit Area Detection, Vehicle Line Crossing Detection, Vehicle Intrusion Detection, Vehicle Enter Area Detection, Vehicle Exit Area Detection, Temperature Detection, Fire Detection, Smoke Detection, PTZ Auto Tracking |
| Audio | |
| Audio Type | 2-way, Mic-in, Line-in, Line-out |
| Audio Compression | G.711 u-law, G.711 A-law, G.722.1, G.726, MP2L2, PCM |
| Network | |
| Network Protocol & Service | IPv4, IPv6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTCP, RTSP, IGMP, ICMP, FTP, SMTP, UPnP, SNMP, QoS, IEEE 802.1X |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control |
| Temperature Measurement | |
| Temperature Measurement Rules | 3 types (point, area, line), 273 preset scenes, each with up to 21 rules in total (10 points, 10 areas, 1 line) |
| Temperature Range | -20°C ~ 150°C (-4°F ~ 302°F) |
| Temperature Accuracy | ±8°C (14.4°F) |
| Detection Range | |
| Triggering Analytics Event Notification | (People 1.8x0.5m) 80m (Vehicle 1.4x4.0m) 240m |
| Triggering Temperature Notification | (Object 0.5x0.5m) 83m (Object 0.2x0.2m) 33m |
| Triggering Fire Detection Event Notification | (Object 2x2m) 833m (Object 1x1m) 417m |
| Observation Range | Detection: People 417m; Vehicle 1278m Recognition: People 104m; Vehicle 319m Identification: People 52m; Vehicle 160m (People: 1.8 x 0.5m) (Vehicle: 1.4 x 4.0m) |
| Integration | |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Web Browser | IE 11, Google Chrome, Firefox |
| Interface | |
| Analog Video Output | 1 x BNC connector |
| Digital Input/Output | 7/2 |
| General | |
| Power Source | AC 24V, DC 36V, DC 48V, High PoE |
| Power Consumption | 30 W (PoE) |
| Weight | 3900g (8.6lb) |
| Dimensions | (Ø x H): 185mm x 305mm (7.28" x 6.42") |
| Environmental Casing | Weatherproof (IP66) |
| Corrosion Protection | Ordering Number will be created upon orders.. Chassis corrosion resistance at the seashore approximately 2-3 years. |
| Bundled Accessories | Power Adapter (DC 36V) |
| Operating Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
| Operating Humidity | ≤70% RH, non-condensing |
