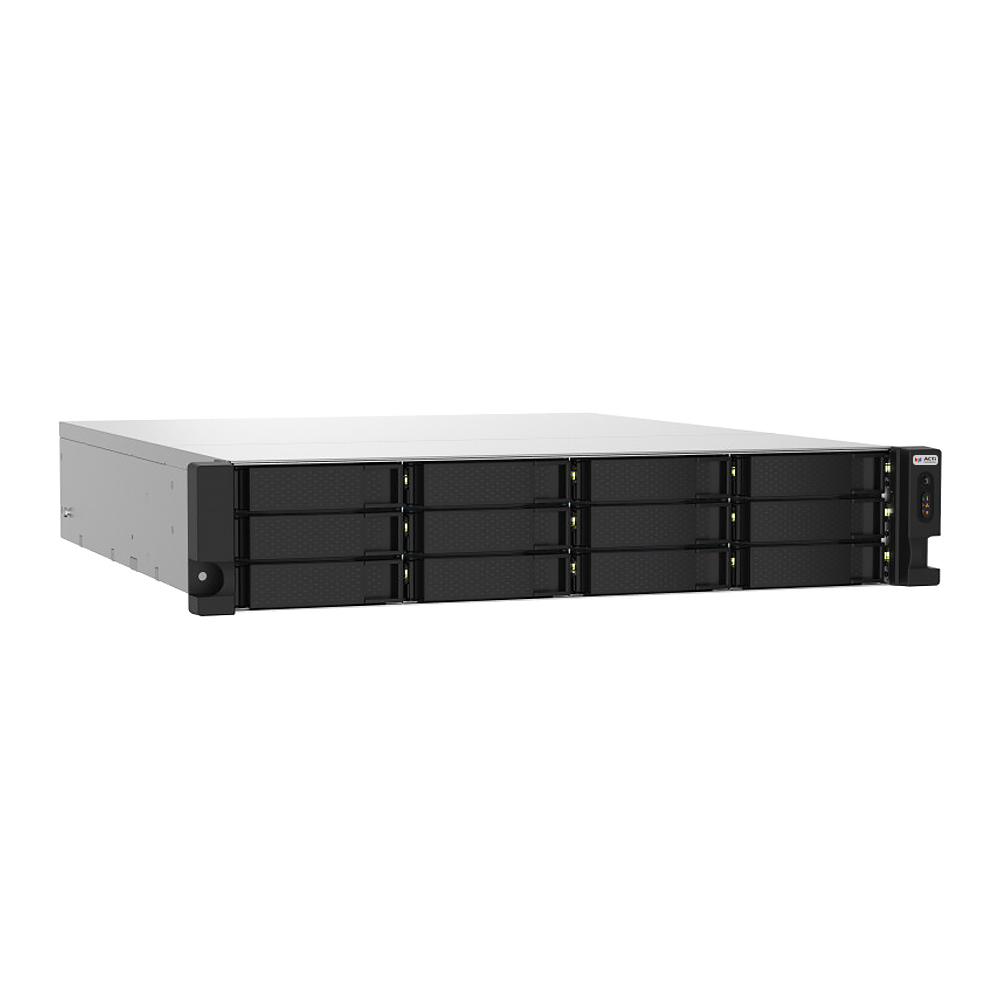

The PSTR-0405 from ACTi is an innovative 2U 12-Bay NAS RAID Storage Device, specifically designed for seamless integration with the ENR, GNR, INR, and ZNR series. This device provides robust storage capabilities combined with advanced RAID options to ensure data security and optimal performance.
• 12-Bay Capacity: Supports up to 12 drives, allowing for extensive storage to meet demanding data needs.
• Rack Space: Compact 2U design ensures efficient use of rack space while maximizing storage performance.
• Advanced Hardware RAID: Offers RAID 0, 1, 5, 6, 10, and 50 options for tailored data protection and performance setups.
• Web Client Access: Provides convenient web-based management for easy monitoring and configuration from anywhere.
| Product Profile | |
|---|---|
| Original Manufacturer | QNAP |
| Product Type | Extended Storage Device |
| Original Model | TS-1232PXU-RP-4G |
| Description | 2U 12-Bay NAS RAID Storage Device (for all ENR, GNR. INR, ZNR series) |
| Hardware | |
| CPU | ARM Cortex-A57 |
| RAM | 4GB, DDR4, maximum up to 16GB |
| Network | |
| Ethernet Port | 2 x 2.5 Gigabit Ethernet, RJ-45 connector 2 x 10 GbE, SFP+ connector |
| System | |
| Client PC Operating System | Windows 7, Windows 8, Windows 10, Windows 11, Windows Server 2008 R2 SP1, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022, Unix, Linux, Mac OS |
| USB | 4-Port USB 3.1 Gen1 |
| Storage | |
| Storage Bay | SATA, Max. 12 Disk(s) (without storage disks) |
| Hot Swappable Drive | Yes |
| HDD Size | 3.5", 2.5" |
| RAID Level | Hardware RAID (Add-on Card) 0, 1, 5, 6, 10, 50 |
| General | |
| Power Source | AC 100-240V |
| Redundant Power Supply | Yes, 250W x 2 |
| Dimensions | (W x H x D): 432mm x 511mm x 88.6mm (17" x 20.12" x 3.49") Rack Space: 2U |
| Fan | Yes |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Operating Humidity | 5% - 95% RH, non-condensing |
| Remote Access | Web Client |
| Warranty | 1 Year(s) |
Name
Description
Size
Downloads
File
PSTR-0405_Datasheet_20251102.pdf
0.3mb
