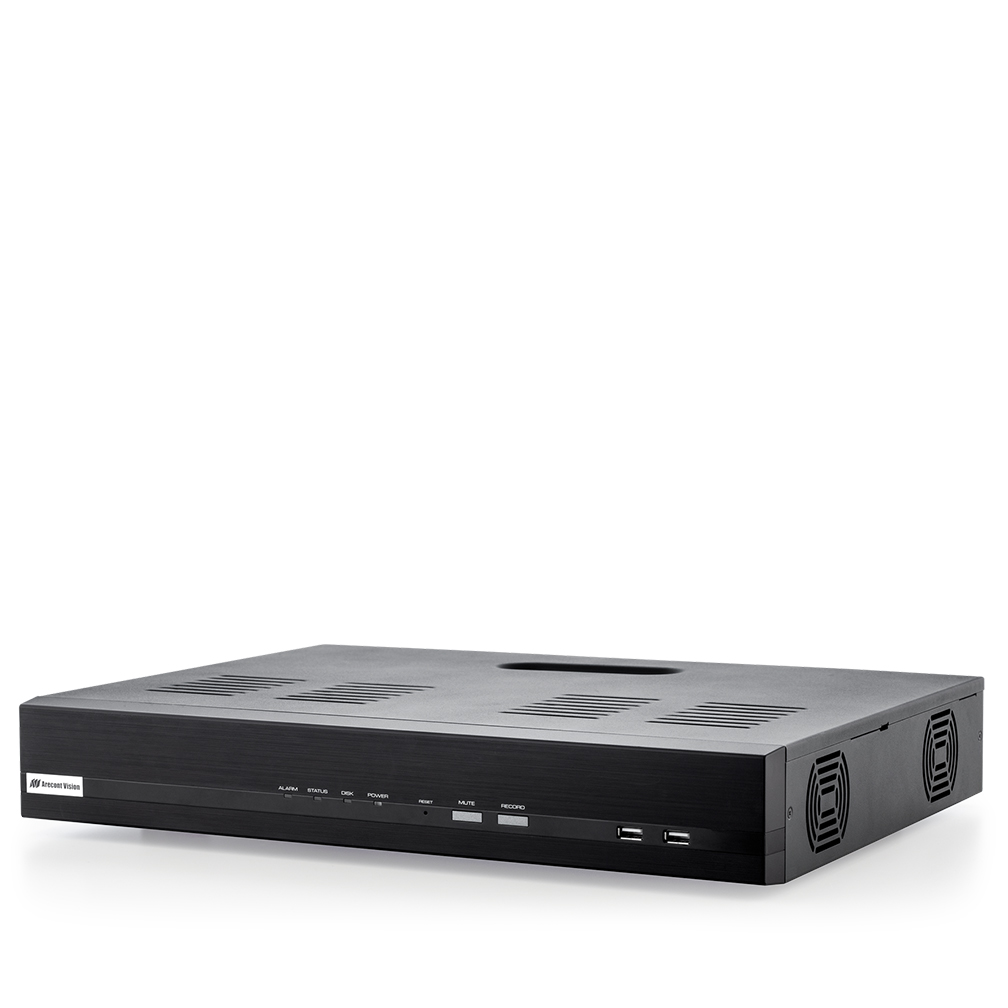

Arecont Vision - AV800-0T2 - 8 Channel Network Video Recorder, Integrated 8-Port PoE Switch
AV Costar's AV NVR is a stand-alone network video recorder with a built in 8- or 16- channel PoE switch. The AV NVR features a custom designed user interface with user-friendly features such as instant playback, power status monitoring, mobile apps for remote viewing and playback, and plug-and-play support for all Arecont Vision cameras. When coupled with Arecont Vision’s industry leading camera technology, the AV NVR provides a cost-effective and easy-to-use solution for small to medium sized installations.
Features:
- Ideal for Small-Size Installations
- Works with Arecont Vision Brand Single and Multi-Sensor Cameras
- Up to 8 Channels (The Number of Sensors in a Camera = The Number of Channels on the NVR)
- Example: 4x Arecont Vision 5 Megapixel (MP) MicroDome®Single Sensor Cameras (4 Channels) + 1x Arecont Vision 12MPSurroundVideo® Omni (4 Channels) = 8 Channels
- Example: 6x Arecont Vision 3MP MegaDome® 2 Cameras (6 Channels) + 2x Arecont Vision 5MP MegaView® 2 (2 Channels) = 8 Channels
- Smart Plug-and-Play makes Camera Setup and Configuration Easy with Auto Discover and Auto Configuration
- (2) Open Customer Replaceable SATA Hard Disk Drive Storage Bays for Internal Storage (Up to 12TB)
- Up to 10MP Resolution Recording – Including 4K Resolution and 40MP Panoramic Cameras
- H.265, H.264, MPEG4, and MJPEG Compression
- SNAPstream™ (Smart Noise Adaptation and Processing) Technology Support
- Free NVR Viewer Mobile App for Remote Viewing and Playback
(Available on the Apple and Android App Stores) - Power Status Utility
- Instant Playback
Functions
|
Live View |
Display Mode |
Live View, Instant Playback, Full Screen, |
|
|
Sequence View |
|||
|
Multi Screen |
1/4/6/8 Channels (AV800 models) |
||
|
Display |
|||
|
1/4/6/8/9/10/12/13/16 Channels (AV1600 models) |
|||
|
Snapshot |
Video Snapshot in JPEG format |
||
|
Playback |
Synchronized |
Local Display: Max 4 channels / Web Display: Max 8 |
|
|
Playback |
channels (AV800 models) |
||
|
Local Display: Max 4 channels / Web Display: Max 16 |
|||
|
channels (AV1600 models) |
|||
|
Playback |
Play, Pause, Stop, Forward, Reverse, Speed Adjust, |
||
|
Control |
Frame by Frame |
||
|
Search Mode |
Search Video by Date, Event, Bookmark |
||
|
Export Video |
Export Playback Videos to Local Computer or |
||
|
USB in AVI Format |
|||
|
Recording |
Recording |
Manual, Continuous, Schedule, Event |
|
|
Mode |
|||
|
Event |
Pre-alarm |
0 to 5 sec |
|
|
Recording |
|||
|
Post-alarm |
5 to 60 sec |
||
|
Event |
Event Type |
System |
System Start, Disk Fail, Camera |
|
Disconnection, Log Space Insufficient, |
|||
|
Disk Space Insufficient, Disk Recycle, |
|||
|
High Disk Temperature, Hardware |
|||
|
Event Notification |
|||
|
Camera |
Motion Detection, Digital Input |
||
|
Event Action |
Mail, FTP, Recording, Buzzer |
||
|
Camera |
Easy |
Auto Discover, Auto Configuration |
|
|
Settings |
Configuration |
||
|
Streaming |
Compression Format, Resolution, Frame Rate, |
||
|
Settings |
Bitrate Control, Quality Setting, Multi-Stream Setting |
||
|
(up to 4 streams) |
|||
|
Image Settings |
Zoom, Focus, Auto Focus, Day and Night Mode, |
||
|
Brightness, Saturation, Image Rotation, Flicker |
|||
|
Control, Illumination Mode, IR Light Control, |
|||
|
Casino Mode™, SNAPstream™ |
|||
|
Event Settings |
Motion Detection, Digital Input |
||
|
User |
Number of |
7 (Administrator, Guest, 5 User Defined) |
|
|
Management |
Groups |
||
|
Privileges |
Live View, Playback, System Configurations, Camera |
||
|
Configurations, Video, Recording Configurations |
|||
|
Power Status |
Monitor each PoE port power consumption, Remotely recycle each PoE |
||
|
Utility |
port power |
||
