Supports HD-Analog/HD-TVI/up to 960H @ 2.1MP/1080P, 16ch, 4K@112fps, 5MP@192fps, 4MP@240fps, 2.1MP and legacy@ 480fps, 4 Audio In/1 Audio Out, PTZ Control, 4 Alarm In/1 Alarm Out, True HD and VGA Video Out, OnVIF Conformant, Rack Ears included, Profile S

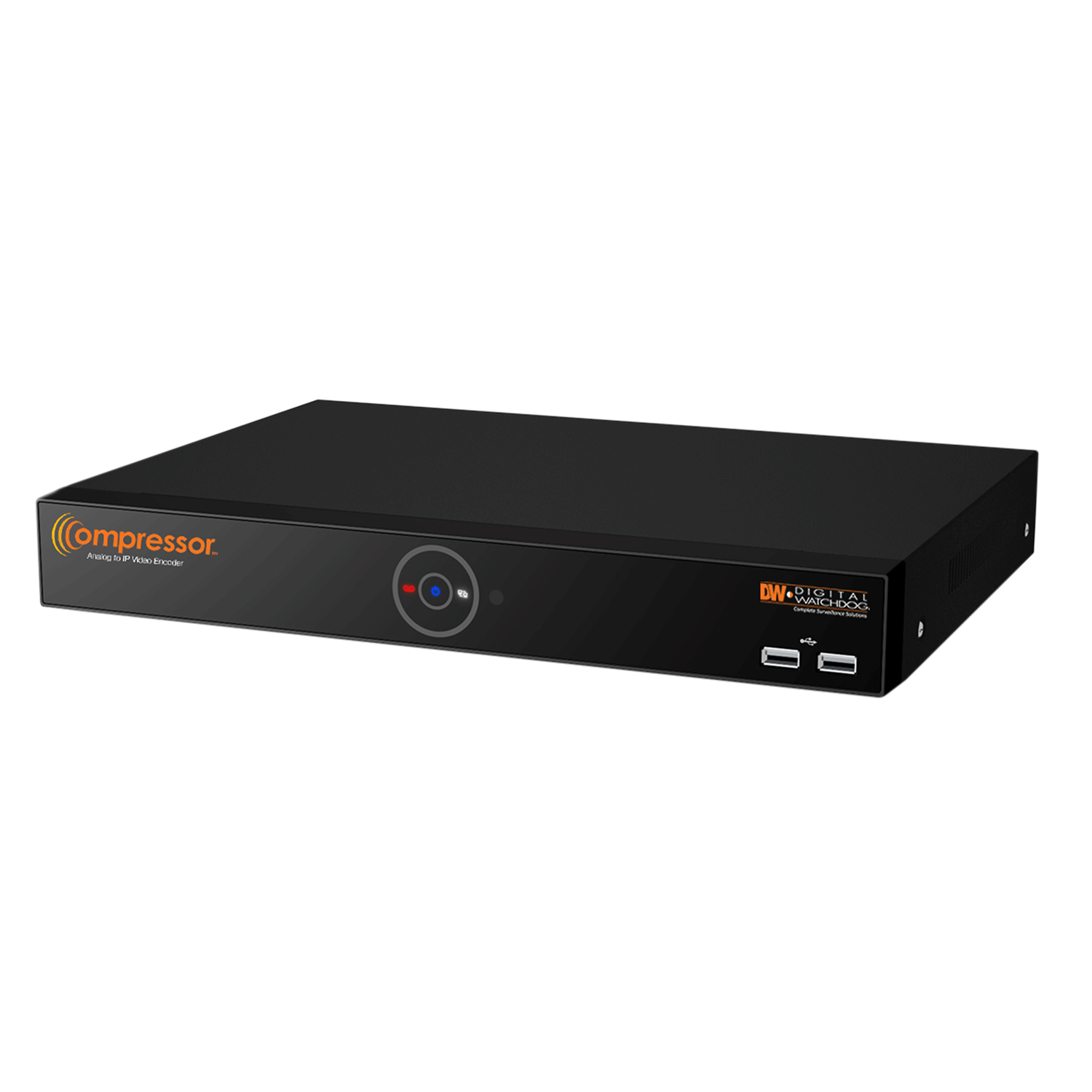

The Compressor™ analog to IP signal encoder converts up to 16 HD-Analog, HD-TVI and legacy analog signals of up to 4K resolution into IP signals at up to 480fps. The encoder supports live local display up to 4K, local audio and alarm inputs and outputs, plus camera control via UTC. The DW-ENHD4K16 encoder is fully integrated with DW Spectrum® IPVMS and will work with any ONVIF conformant VMS. The Compressor™ encoder is an easy and affordable solution for applications with both analog and IP cameras.
- The most cost-effective path to IP
- Universal HD over Coax® technology with HD-Analog, HD-TVI and all legacy analog signal support up to 4K
- Connect your analog cameras to DW Spectrum® IPVMS or any ONVIF approved VMS
- Convert up to 16 analog cameras to 4K IP video signals
- Real-time at up to 480fps local display (4K @ 240fps, 5MP @ 320fps)
- 4K @ 112fps, 5MP @ 192fps, 4MP @ 240fps, real-time 2.1MP/1080p and VGA @ 480fps
- Simultaneous streaming
- Works with DW Spectrum® IPVMS recording license (requires DW-SPCP16LSC016 or DW-SPCP04LSC004)
- Motion detection support
- Two-way audio (4 input, 1 output, 1 HD output)
- OSD and PTZ control via coax (UTC)
- 2x RS-485 Interface for PTZ control
- Search and playback from DW Spectrum® IPVMS
- Frame rate and bandwidth control
- 4 alarm input, 1 alarm output
- Privacy zones
- Event notifications via e-mail with image
- DW-EN19RE rack mount included
- ONVIF conformant, Profile S
VIDEO |
||
|
Video input
|
Signal type
|
HD over Coax® technology with HD-Analog, HD-TVI and CVBS analog signal up to 4K
|
|
CH#
|

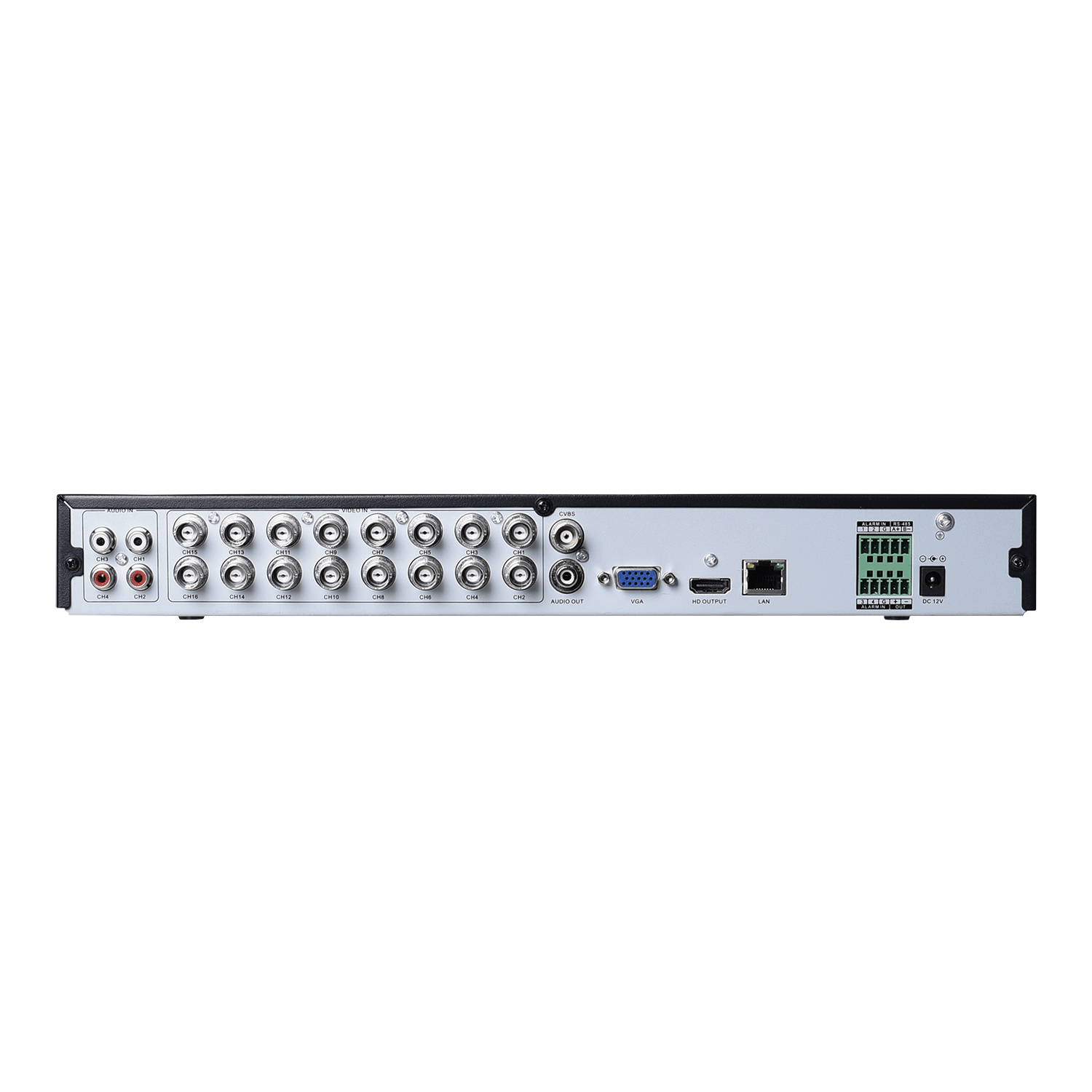

16 CH BNC input
|
|
|
Video output
|
True HD/VGA: 4K, 1920x1080, 1280x720, 1024x768
Spot: 1.0 Vp-p (75 ohm, Composite) |
|
| Local display mode | True HD and VGA: 1/4/9/16 split, PIP, sequence Spot: 1/16 split, sequence |
|
| Local display speed | Up to 480fps 4K @ 240fps 5MP @ 320fps | |
|
Framerate and resolution
|
Main stream: 4K @ 112fps Main stream: 5MP @ 192fps Main stream: 4MP @ 240fps Main stream: 2.1MP/1080p @ 480fps Sub-stream: VGA @ 480fps |
|
|
Compression
|
H.265, H.264
|
|
PERFORMANCE |
||
|
Interface
|
Audio input | 4 RCA inputs |
| Audio output | 1 RCA output, 1 HD output | |
|
Alarm input
|
4 alarm inputs via terminal block
|
|
|
Alarm output via terminal block
|
1 alarm output, terminal
|
|
|
RS-485 / RS-232 / UTC
|
2x RS485, 3x USB, UTC
|
|
|
PTZ control via Coax (HD-Analog / HD-TVI)
|
||
|
Features
|
Motion detection
|
Locally and via DW Spectrum® IPVMS
|
| Privacy masks | Yes | |
|
Alarm management
|
Locally and via DW Spectrum® IPVMS. NC/NO alarm management
|
|
|
Notifications
|
E-mail notifications
|
|
|
Security
|
HTTPS, SSL
|
|
NETWORK |
||
|
Network connection
|
1 RJ45 10/100/1000 Base-T
|
|
|
Streaming
|
Transmission speed live
|
4K @ 112fps
5MP @ 192fps |
| Max throughput | 288Mbps | |
|
Bandwidth
|
Support bandwidth control
|
|
|
Protocols
|
TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf
|
|
|
Access
|
Web viewer
|
Internet Explorer® 11 or higher
|
|
software
|
DW Spectrum® IPVMS and ONVIF approved CMS
|
|
GENERAL |
||
|
Operating temperature
|
32°F ~ 104°F (0°C ~ 40°C)
|
|
|
Operating humidity
|
Less than 90% (non-condensing)
|
|
|
Other certifications
|
FCC
|
|
|
Electrical
|
Power requirement
|
12V DC, 2A
|
|
Power consumption
|
Max. 15.6W
|
|
|
Dimensions
|
14.76” x 1.76” x 12.52” (375 x 44.9 x 318.2 mm)
|
|
|
Weight
|
5.5lbs (2.5kg)
|
|
| Warranty | 2 year warranty | |
