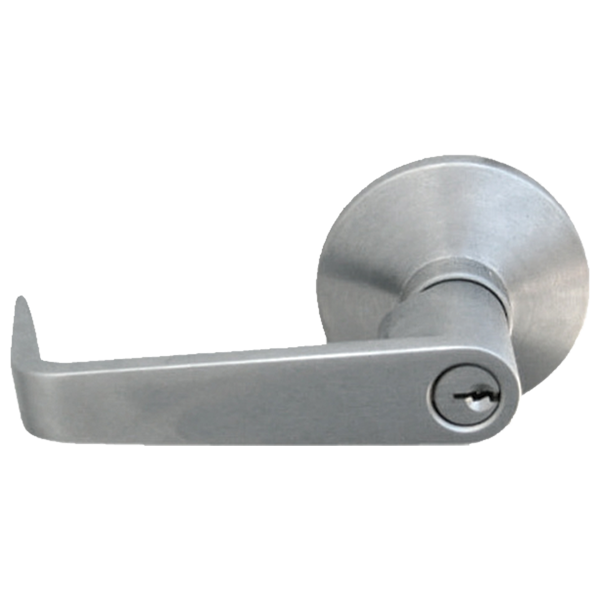

SECO-LARM - SD-962HL-4A - Entry-type Lever trim For use with Model SD-962AR-36A or SD-962SR-36I
Part number:
SD-962HL-4A
Price:
Entry-Type Lever Trim for Rim-Type Exit Devices on Exit Doors. Entry-type lever trim. For use with model SD-962AR-36A or SD-962SR-36I. USD26D Finish. SC4, 6-pin lock. Non-handed. Two keys Included.
Features:
- Compatible with: SD-962AR-36A, SD-962AR-36G
- Non-handed
- SC4, 6-pin lock
- Entry type
- Key locks and unlocks
- Two keys included
| Door type | 1-3/4” thick, wood or metal |
| Hand type | Non-handed |
| Latch bolt | Stainless-steel, 3/4” throw |
| Dead latch | Stainless-steel, 5/8” |
| Strike | For 5/8”stop plus shim for 1/2” stop |
| Spring | Stainless-steel |
| Chassis | Steel |
| Cover | High-density, rust-resistant alloy |
| Rail assembly | Steel |
| End cap | Steel |
| Dogging | Allen-type dogging standard |
Name
Description
Size
Downloads
File
Datasheet
0.5mb
File
Manual
0.3mb
