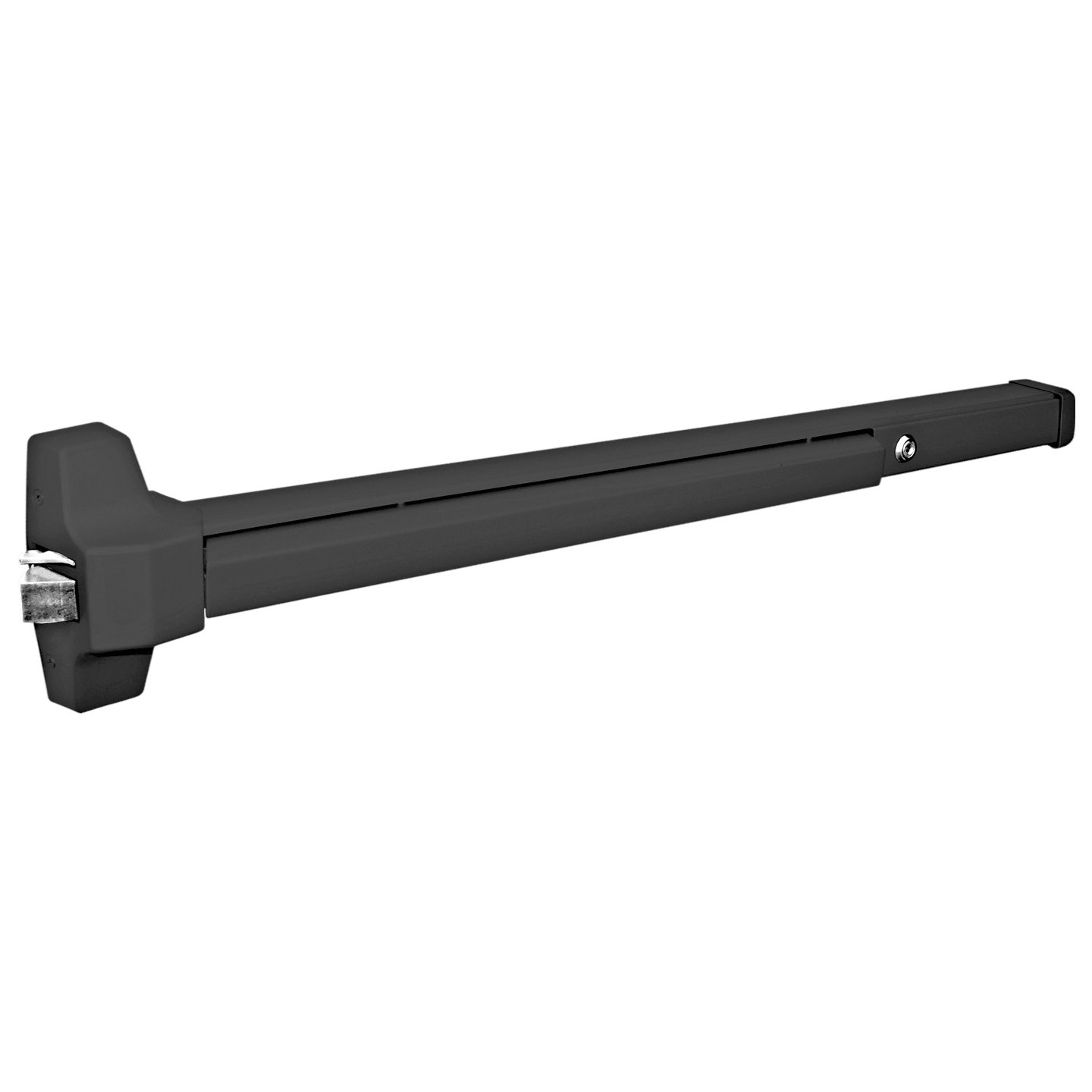

SECO-LARM - SD-962BR-36A - Rim-Type Exit Device for Exit Doors, Push-to-Exit Bar - Black
Part number:
SD-962BR-36A
Price:
- • Pushbar is UL Listed in the U.S.
- • Allows exit from inside while locked from outside
- • Reversible, non-handed design
- • For metal or wood doors up to 13/4” (44mm) thick
- • Stainless-steel 3/4″ (19mm) throw latch bolt
- • Separate deadlocking latch — Prevents the use of credit cards or similar means to open the latch bolt
- • Allen-type 1/4-turn dogging lock — Allows the exit bar to be unlocked for extended periods of time
- • Includes all needed hardware for typical installations
- • Works with standard external door handle/lock devices such as the SD-962HL-4A (not included)
- • Fits doors from 30″ (76cm) to 48″ (122cm) wide
- • Heavy-duty steel construction
- • Stainless steel spring
| Door Type | 1-3/4″ (44.5mm) thick, wood or metal |
| Hand Type | Non-handed |
| Latch Bolt | Stainless steel, 3/4″ (19mm) throw |
| Dead Latch | Stainless steel, 5/8″ (16mm) |
| Strike | For 5/8″(16mm) stop plus shim for 1/2″ (12.7mm) stop |
| Spring | Stainless steel |
| Chassis | Steel |
| Cover | High-density, rust-resistant alloy |
| Rail Assembly | Steel |
| End Cap | Steel |
| Dogging | Allen-type dogging standard |
| Dimensions | 32-3/4″x6-1/4″x2-1/2″ (832x158x64 mm) |
| Weight | 6-lb 10-oz (3.0kg) |
Name
Description
Size
Downloads
File
Manual
0.3mb
File
Product Information Sheet
0.2mb
File
Mounting Template
0.2mb
Rim-type exit device for 36-inch doors (87.6 cm length). It has a dead latch for additional security and is reversible; the bar can be locked open. UL listed, black. When mounted on the inside of a door to block entry to protected premises, the ENFORCER SD-962BR-36A Rim-Type Exit Device securely locks the door against outside access while allowing users inside to exit. The stainless steel enclosure protects the exit device from abuse yet can be easily unlocked from the inside by authorised users. It can be connected to an entry-type lever trim or any physical locking device on the outside of the door to allow authorised personnel entry.
