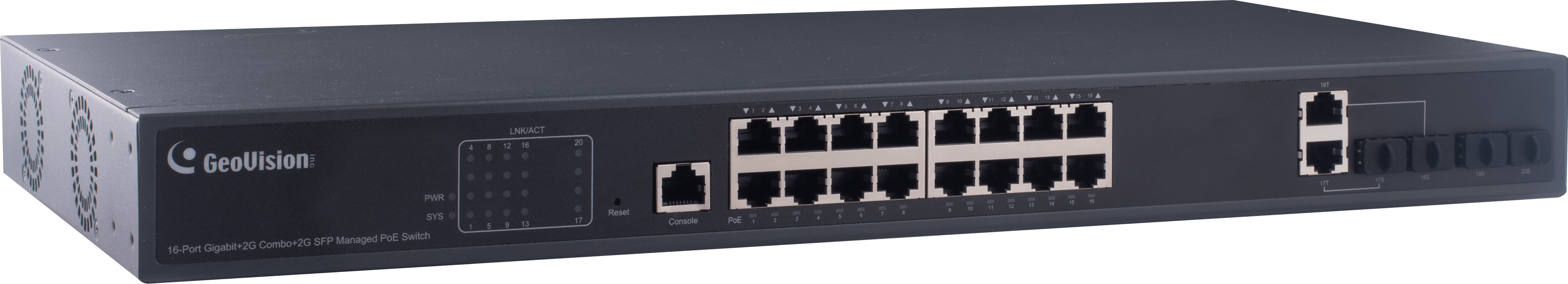

GeoVision - 84-APOE161-401U - 16-Port Gigabit Web Management PoE Switch

Part number:
84-APOE161-401U
Price:

GV-APOE1611-V2 is a 16-Port 10/100/1000BaseT(X) PoE+ Web Smart PoE Switch with 2 SFP uplink ports and 2 Combo uplink ports. The switch supports IEEE 802.3at Power over Ethernet standard for a maximum power consumption of 280 W. While no special network cables are required for connecting to your powered devices (PD), such as IP cameras, GV-APOE1611-V2 also allows power supply over network cables of up to 250 m (820 ft) in length, at 10 Mbps.



Designed for medium or large network environment to strengthen its network connection and efficiency, the switch provides exceptionally smart Web management features, including VLAN, QoS, RSTP, IGMP Snooping, LACP, Port Security and more. In addition, GV-APOE1611-V2 gives you the option of installing it in a 19” cabinet with a rack-mount kit or underneath a desk.



Features:

  • PoE connection for network cables up to 250 m (820 ft) at 10 Mbps transfer rate
  • 16-Port 10/100/1000BaseT(X) PoE+ with 2 SFP Uplink Ports and 2 Combo Uplink Ports
  • IEEE 802.3at Compliant (16 Ports at Full 15.4 W)
  • Web-based Configuration and Management
  • VLAN, QoS, DSCP, RSTP, IGMP Snooping, Link Aggregation, LACP, Port Security, Bandwidth Control, Storm Control
  • Support for PD Alive Monitor
  • Support for ONVIF Discover
  • PoE Schedule
  • Max. 280 W power consumption
  • 19" Rack-mount
  • Up to 16 GV-IP Cameras support



Note:

  • Specifications are subject to change without notice.
Ethernet
Layer SupportedL2
Ports
Number of Ports
  • 16-port 10/100/1000BaseT(X) with RJ-45 Connectors, PoE+
  • 2-port SFP Uplink Port
  • 2-port Combo Uplink Port
Performance
MAC Address8 K, Auto‐Learning, Auto‐Aging
Buffer Memory4.1 M bits
Transmission MethodStore and Forward
Transmission Media
  • 10/100BaseT(X) Cat. 5 UTP/STP
  • 1000BaseT Cat. 5e, 6 UTP/STP
Forwarding Rates29.76 Mpps
Backplane Capacity40 Gbps
Smart Features
VLANManagement VLAN, Private VLAN, Voice VLAN, Surveillance-VLAN Q-in (Double Tag), 802.1v Protocol VLAN, MAC-Based VLAN
NetworkIPv4 / IPv6, DHCP Client / DHCPv6 Client
IGMP SnoopingIGMP Snooping / Filter, MLD Snooping, MVR
Link AggregationLoad Balance, LAG, LACP
Quality of Service (QoS)QOS Apply: Port Based, 802.1p,CoS,DSCP, IP Precedence, TCP/UDP (IPv4/IPv6), QOS Scheduling: WRR, Strict Priority, DSCP & CS, IPv4 Qos (QCEs), IPv6 Qos (QCEs)
ARPIP Source Guard, Dynamic ARP Inspection, DoS
DHCPIP DHCP Snooping, Option82
STPSTP / MSTP / RSTP, BPDU Guard, BPDU Filter
SNMPSNMP Community, SNMP View, SNMP Trap, SNMP (V1, V2C, V3)
RMONRMON (1, 2, 3, 9)
ACLL2+/L3/L4, IPv6 Support, Management Access List
AAATACACS+, Radius, AAA
DiscoveryLLDP, MED
ONVIFONVIF Detect, ONVIF Discover, ONVIF Server
PoE ConfigurationPOE Global Configuration, POE Port Configuration, PD Alive Monitor
DiagnosticsPing / Ping6, Traceroute, Copper Test, DDMI
Port ManagementBasic config (speed, duplex, flow control), Statistics, Storm Control, Rate Limit, Port‐Security, Port Mirror, Port Protected, EEE, Jumbo Frame
Administrator ManagementBasic info, System Status, User Management, SNTP, Import/Export Config, Firmware Upgrade, System Reboot, Restore Factory
Mechanical Characteristics
LED Indicator
  • Per Port: Link/Act
  • PoE Act/Status
  • Power
  • System
Electrical Characteristics
PoE Power
  • Input 100 ~ 240 V / AC, 50 ~ 60 Hz
  • Output IEEE 802.3at Compliant Voltage, Per Port Max. 32 watts (8 Ports at Full 15.4 W / 4 Ports at Full 32 W)
PoE ModeMode A
Max. Power Consumption280 W
PoE Budget250 W
General
Operating Temperature0°C ~ 40°C (32°F ~ 104°F)
Humidity10 to 90% RH (non‐condensing)
Dimensions (L x W x H)44 x 440 x 207 mm (1.73” x 17.32” x 8.14”)
Weight2.56 kg (5.64 lb)
Surge Protection±6 kV
Storage Temperature‐40°C ~ 70°C (‐40°F ~ 158°F)
Standards and Regulatory
Standards
  • IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.ab 1000BaseT, IEEE 802.3z
  • 1000BaseSX/LX
  • IEEE 802.3x Full‐duplex and Flow Control
  • IEEE 802.3ad Link Aggregation Control Protocol
  • IEEE 802.1Q VLAN
  • IEEE 802.1p Class of Service
  • IEEE 802.1D Spanning Tree Protocol
  • IEEE 802.1w Rapid Spanning Tree Protocol
  • IEEE 802.1s Multiple Spanning Tree Protocol
  • IEEE 802.1X Port‐based Network Access Control
  • IEEE 802.3at Power Over Ethernet (PoE+)
RegulatoryCE, FCC Class A, RoHS compliant
