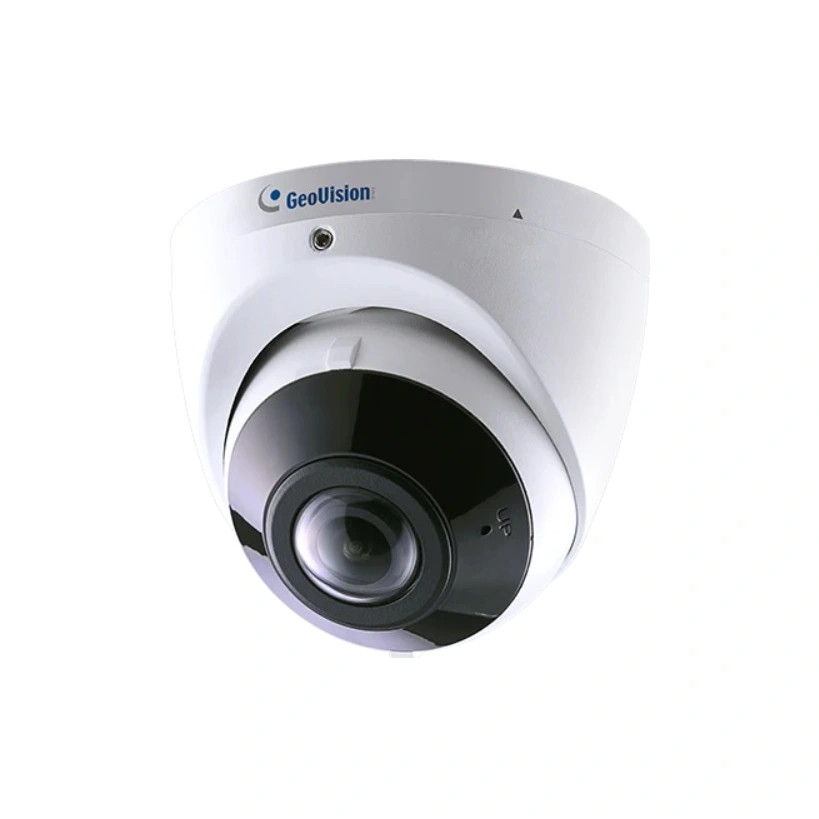

GeoVision - 84-EBDP580-0010 - AI 180° Panoramic 5MP H.265 Super Low Lux WDR Pro IR Eyeball Dome IP Camera
• AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
• 1/2.7" progressive scan CMOS
• Min. illumination at 0.01 lux
• Triple streams from H.265, H.264 or MJPEG
• Up to 30 fps at 2880 x 1620
• Intelligent IR
• IR distance up to 20 m (65 ft)
• Day and night function (with removable IR-cut filter)
• 180° panoramic view
• Ingress protection (IP67)
• Vandal resistance (IK10 for metal casing)
• DC 12V / PoE (IEEE 802.3af)
• Built-in microSD card slot (SD / SDHC / SDXC) for local storage
• Built-in Microphone
• Wide Dynamic Range Pro (WDR Pro)
| Camera | |
|---|---|
| Image Sensor | 1/2.7" progressive scan CMOS |
| Picture Elements | 2880 (H) x 1620 (V) | 5 Megapixels |
| Minimum Illumination | Color: 0.01 Lux (F2.0, AGC ON) IR On: 0 Lux |
| Shutter Speed | Auto / Manual (1 ~ 1/100000 sec) |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| S/N Ratio | 56 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 5 MP |
| Day/Night | Yes (with removable IR-cut filter) |
| Focal Length | 1.68 mm |
| Lens Type | Fixed |
| Maximum Aperture | F/2.0 |
| Mount | Ø 12 mm |
| FOV | Horizontal: 180° Vertical: 100° Diagonal: 180° |
| Operation | |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| IR LED Quantity | 2 IR LEDs |
| Max. IR Distance | 20 m (65 ft) |
| DORI | |
| Detect | 37.8 m (124.0 ft) |
| Observe | 15.1 m (49.6 ft) |
| Recognize | 7.6 m (24.8 ft) |
| Identify | 3.8 m (12.4 ft) |
| Operation | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Triple streams |
| Video Resolution | Main Stream: 2880 x 1620 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080 Sub Stream: 1920 x 1080, 1280 x 720, 720 x 576, 640 x 480, 640 x 360 (Default), 704 x 288, 352 x 288 Third Stream (Closed by Default): 720 x 576, 704 x 288, 640 x 360, 352 x 288 |
| Frame Rate | 30 fps at 2880 x 1620, 2560 x 1440, 2304 x 1296, 1920 x 1080 (50/60 Hz) *The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Maximum Throughput | 40 Mbps |
| Maximum Stream | 20 *When the total bitrate is within the maximum throughput |
| Video Analytics | Motion Detection, Audio Alarm, Tamper Detection. *Tampering detection and audio alarm are only accessible through the camera's Web interface, which can be used to trigger alerts such as e‐mail and FTP |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 180°) |
| Audio Compression | G.711 |
| Audio Support | One‐way Audio |
| Deep Learning Function | |
| AI Analytics | Human & Vehicle classification: Intrusion, Crossing Line, Entering Area, Leaving Area |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1X (including EAP-TLS), ARP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, IGMP, IPv4, IPv6, NTP, ONVIF (Profile G, S, T, M), PPPoE, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0° ~ 360° Tilt: 0° ~ 75° Rotate: 0° ~ 360° |
| Connectors | Power: DC Jack, PoE Ethernet: RJ-45 Audio: 1 In (built‐in microphone) Local Storage: microSD card slot (SD / SDHC / SDXC), up to 512 GB |
| General | |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 0 ~ 95% (no condensation) |
| Power Source | 1.25A 12V DC / PoE (IEEE802.3af) |
| Max. Power Consumption | 5.5 W |
| Dimensions | Ø 111 x 93 mm (Ø 4.4" x 3.7") |
| Weight | 0.48 kg (1.06 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Certification | CE, FCC, LVD, RoHS, UL compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Text Overlay, Image Masking |
| Language | Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese |
| Software Applications | |
| Software Supported | GV‐VMS (V17.4.7 with patch / V18.3.2 with patch or later), GV‐Control Center (V3.8.0 with patch / V4.2.0 or later), GV‐Edge Recording Manager Windows Version (V2.2.7 or later), GV‐Recording Server / Video Gateway (V2.1.0 or later) |
| Smart Device Access | GV-Eye for iOS / Android (V3.1.0 / V3.1.1 or later) |
| Live Viewing | Browser (IE, Edge, Chrome, Firefox) |
The GeoVision 84-EBDP580-0010 is a 5MP panoramic dome camera featuring a 1.68mm lens providing true 180° horizontal FOV, delivering 2880x1620 resolution at 30fps. With 0.01 lux color minimum illumination, dual IR LEDs for 20m night vision, and WDR Pro (120dB), it captures comprehensive wide-area coverage in challenging conditions. Housed in an IK10 vandal-resistant metal casing with IP67 rating, it operates from -30°C to 60°C. Powered by on-device deep learning, it delivers AI analytics with human/vehicle classification for intrusion, crossing line, and area detection. H.265 triple streaming with edge storage up to 512GB ensures robust performance. Fully ONVIF compliant, it integrates with GV-VMS and GV-Eye for professional 180° panoramic AI surveillance with a single camera.
