GeoVision - 84-PEOCR00-3010 - GV-3D People Counter V3
• Bi-directional people counting
• Human head detection algorithm
• Target height filtering
• Children counting support
• Alarm triggers for crowd density counting and reverse entry detection
• Real-time, daily, weekly, monthly or annual counting reports and graphs
• Video exception detection (scene change, video blur and abnormal color)
• Integration with GV-Web Report for data collection and chart analysis
• Built-in alarm for event-based triggers
• Digital I/O (1 Input/1 Output)
• PoE (IEEE 802.3af)
• Built-in micro SD card slot (SD/SDHC/SDXC/UHS‐I, Class 10) for local storage
• Ingress protection (IP66)
• 12 languages supported
• ONVIF (Profile G, S, T) conformant
| Camera | |
|---|---|
| Image Sensor | 1/3" progressive scan CMOS |
| Picture Elements | 2560 (H) x 1440 (V) | 4 Megapixels |
| Minimum Illumination | Color: 0.008 Lux (F2.1, AGC ON) |
| IR On: 0 Lux | |
| Shutter Speed | Automatic |
| S/N Ratio | 50 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Angle of View | Diagonal: 110° |
| Horizontal: 103° | |
| Vertical: 70° | |
| Lens | |
| Megapixel | 4 MP |
| Day / Night | Yes (with removable IR-cut filter) |
| Lens Type | Fixed |
| Focal Length | 2.1 mm |
| Maximum Aperture | F/2.1 |
| Mount | M12 |
| FOV | Horizontal: 103° |
| Vertical: 70° | |
| Diagonal: 110° | |
| Operation | |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| IR LED Quantity | 4 IR LEDs |
| Max. IR Distance | 10 m (35 ft) |
| DORI | |
| Detect | 37 m (121.4 ft) |
| Observe | 15 m (49.2 ft) |
| Recognize | 7 m (23.0 ft) |
| Identify | 4 m (13.1 ft) |
| Operation | |
| Video Compression | H.264, H.265, H.264+, H.265+, MJPEG |
| Video Streaming | Triple streams |
| Video Resolution | Main Stream: 2560 x 1440 (default), 2304 x 1296, 1920 x 1080, 1280 x 720 |
| Sub Stream: 1280 x720, 704 x 576, 704 x 480, 640 x 360 (default), 352 x 288, 352 x 240 | |
| Third Stream: 704 x 576, 704 x 480 (default), 480 x 240, 352 x 288, 352 x 240 | |
| Frame rate | 30 fps at 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 704 x 480, 480 x 240, 352 x 240 (60 Hz) |
| 25 fps at 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 704 x 576, 480 x 240, 352 x 288 (50 Hz) *The frame rate and performance may vary depending on the number of connections and data bitrates (different scene). | |
| Maximum Throughput | 8 Mbps |
| Maximum Stream | 10 * When the total bitrate is within the maximum throughput |
| Audio Compression | G.711 |
| Audio Support | Two-way audio |
| Digital I/O | Input: 1 input, dry contact, NO/ NC |
| Output: 1 replay output (30V DC, 1A) | |
| External Interface | |
| Ethernet | RJ-45 |
| RS-485 | Yes, half-duplex |
| Local Storage | microSD card slot (SD / SDHC / SDXC), up to 256 GB |
| Power | DC Jack (12V DC, 1.25A), PoE |
| Audio | Built-in microphone: Yes |
| External microphone required: Yes (Audio jack, 3.5 mm or 0.14") Built-in speaker: Yes External speaker required: Yes (Audio jack, 3.5 mm or 0.14") * For devices with microphone or speaker, choose either the built-in or external option. * If equipped with an Audio In port, it only supports microphones with power supply. | |
| Digital I/O | 4-pin terminal block pitch 3.5 mm (0.14") |
| Event and Alarm | |
| Counting Accuracy | Up to 95% (Height Filtering: counting accuracy 90%) |
| People Counting | Count people entering and exiting |
| Produce daily, weekly, monthly and annual counting statistics in charts or tables | |
| Children counting Target height filtering Human head detection algorithm | |
| Smart Alarm | Motion Detection, SD Card Error, SD Card Full, IP Address Collision, Cable Disconnected, Video Exception Detection (Scene Change, Video Blur and Abnormal Color Detection), People Detection (Occupancy Threshold met and Reverse Entering Detection) |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1x, DDNS, DHCP, FTP, HTTP, HTTPS, HTTP POST, IPv4, IPv6, NTP, ONVIF (Profile G, S, T), PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, UDP, UPnP |
| General | |
| Operating Temperature | -30 °C ~ 45 °C (-22 °F ~ 113 °F) |
| Operating Humidity | 0 ~ 95% (no condensation) |
| Operating Distance | 2 ~6 m (6.56 ~ 19.69 ft) |
| Power Source | 12V DC / PoE (IEEE802.3af) |
| Max. Power Consumption | 9 W |
| Dimensions (W x H x D) | 180 x 65 x 43.4 mm (7.08 x 2.56 x 1.71 in) |
| Net Weight | 563 g (1.24 lb) |
| Ingress Protection | IP66 |
| Certification | CE, FCC compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web browser or Utility |
| Language | Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese |
| Supported Browser | Web Browser (Edge, IE mode in Edge, Chrome, Firefox, Safari) |
| Software Application | |
| Software Supported | GV-VMS (V18.3.5 or later, patch files required / V20.0 or later), GV-Web Report (V3.1.0 or later), GV-IP Device Utility (V9.0.2 or later) |

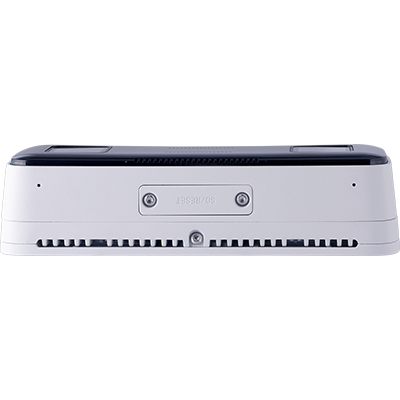

The GV-3D People Counter V3 is a 4MP dual-lens camera designed for bi-directional people counting. It can detect, track and count individuals moving through a designated area with great accuracy, identifying both transit flow and zone occupancy. With Power over Ethernet (PoE) and a user-friendly interface, the GV-3D People Counter V3 is straightforward to install and operate. Collected statistics can be accessed via the GV-Web Report software. The counter also supports alarm notifications under various conditions, such as when a predefined occupancy limit is exceeded or reverse entry is detected.
