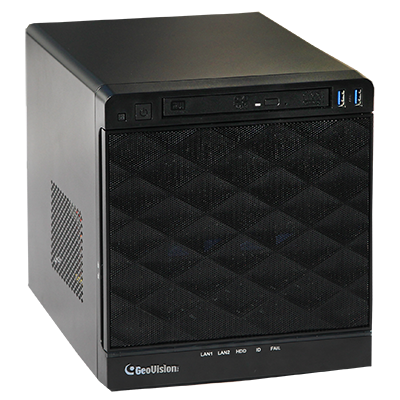

The UVS-CUBE VMS Hot-Swap 4-Bay System features the Intel Core i3 / i5 / i7 processor based on Coffee Lake 8th Generation architecture, latest upgraded VMS system and 64-bit Microsoft Windows 10. UVS-CUBE VMS HOTSWAP 4-Bay System supports up to 32 IP Camera channels. With additional license, connection with up to 32 channels of third-party IP devices is supported. You can also display your video surveillance in HD by using the built-in HDMI port on the system.
Features:
- Powered by Intel Core i3 / i5 / i7 Processor
- Windows 10 Professional 64 bit
- Support for GPU Decoding
- Maximum storage capacity of up to 40 Terabytes
- Pre-installed recovery from the hidden partition
- 2 Gigabit LAN ports
- Dual monitor display (DP / HDMI)
- All-in-one solution (Live View, Playback, Recording, Backup, CMS)
- Video analysis (Advanced Motion Detection, Privacy Mask, Scene Change Detection and Counter)
- Fisheye camera dewarping function
- Automatic connection to GV IP cameras
- Dual video streams
- On-screen LED panel for HDD status
- Smart phones access
- Multiple (29) languages
- H.265 / H.264 / MJPEG / MPEG4
Note:
- Specifications are subject to change without notice.
|
CPU |
Intel 11th Generation i3 / i5 / i7 |
|
|
Memory (RAM) |
Standard 16GB DDR4 |
|
|
OS Drive |
256GB |
|
|
Server OS |
Windows 10 Professional 64 Bit |
|
|
Power Supply |
265 W |
|
|
Data HDD Included |
0 |
|
|
Max # of HDD |
4 |
|
|
Max HDD Storage |
56 TB |
|
|
Removable HDD |
Yes |
|
|
Hotswappable HDD |
Yes |
|
|
Video |
Codec |
MPEG4, MJPEG, H.265,H.264 |
|
Input |
16 or 32 |
|
|
Video Resolution |
Panel Resolution up to 4K |
|
|
Backup Type |
DVD+R (DL), DVD-R (DL), DVD+R, DVD+RW, DVD-R, DVD-RW, CD-R, CD-RW |
|
|
Recovery Option |
Hidden Partion System Restore |
|
|
Connector |
Ethernet |
2 RJ-45, 10/100/1000 Mbps |
|
VGA Output |
Dual Monitor Output DP and HDMI |
|
|
USB 3.1 |
2 Front, 4 Rear |
|
|
Remote Access |
TCP/IP, Lan, Wan, Internet, Modem to Modem, ISDN |
|
|
Operating Temperature |
0 to 45 °C (32 to 133 °F) |
|
|
Humidity |
0 to 80% RH (non condensing) |
|
|
Power Supply |
265 W |
|
|
Dimentions (W x D x H) |
7.50" x 7.75" x 10" |
|
|
Weight Approximate (lbs) |
10 without HDDs |
|
|
Optional Products |
GV-IO Box 4 / GV-IO Box 8 / GV-IO Box 16 / GV-Data Capture Box Series / GV-Hub Box / GV-COM Box/ GV- DOM / GV-Joystick / GV-Remote / GV - Keyboard |
|
|
Languages |
English/ Spanish |
|
