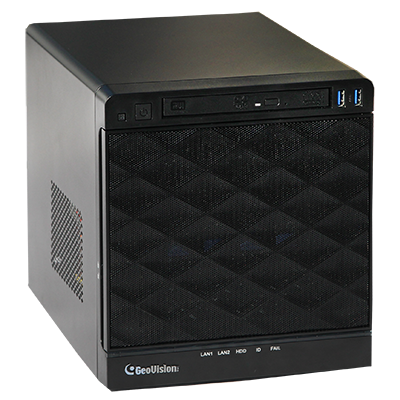

GeoVision - 94-NC7AI-016 - UVS Cube Hotswap i7 4 Bay AI GuardBasic Server 16CH
• Powered by Intel Core i3 / i5 / i7 Processor
• Windows 10 Professional 64-bit
• Support for GPU Decoding
• Maximum storage capacity of up to 40 Terabytes
• Pre-installed recovery from the hidden partition
• 2 Gigabit LAN ports
• Dual monitor display (DP / HDMI)
• All-in-one solution (Live View, Playback, Recording, Backup, CMS)
• Video analysis (Advanced Motion Detection, Privacy Mask, Scene Change Detection and Counter)
• Fisheye camera dewarping function
• Automatic connection to GV IP cameras
• Dual video streams
• On-screen LED panel for HDD status
• Smartphone access
• Multiple (29) languages
• H.265 / H.264 / MJPEG / MPEG4
• Specifications are subject to change without notice.
| CPU | Intel 11th Generation i3 / i5 / i7 | |
| Memory (RAM) | Standard 16GB DDR4 | |
| OS Drive | 256GB | |
| Server OS | Windows 10 Professional 64 Bit | |
| Power Supply | 265 W | |
| Data HDD Included | 0 | |
| Max # of HDD | 4 | |
| Max HDD Storage | 56 TB | |
| Removable HDD | Yes | |
| Hotswappable HDD | Yes | |
| Video | Codec | MPEG4, MJPEG, H.265,H.264 |
| Input | 16 or 32 | |
| Video Resolution | Panel Resolution up to 4K | |
| Backup Type | DVD+R (DL), DVD-R (DL), DVD+R, DVD+RW, DVD-R, DVD-RW, CD-R, CD-RW | |
| Recovery Option | Hidden Partion System Restore | |
| Connector | Ethernet | 2 RJ-45, 10/100/1000 Mbps |
| VGA Output | Dual Monitor Output DP and HDMI | |
| USB 3.1 | 2 Front, 4 Rear | |
| Remote Access | TCP/IP, Lan, Wan, Internet, Modem to Modem, ISDN | |
| Operating Temperature | 0 to 45 °C (32 to 133 °F) | |
| Humidity | 0 to 80% RH (non condensing) | |
| Power Supply | 265 W | |
| Dimentions (W x D x H) | 7.50" x 7.75" x 10" | |
| Weight Approximate (lbs) | 10 without HDDs | |
| Optional Products | GV-IO Box 4 / GV-IO Box 8 / GV-IO Box 16 / GV-Data Capture Box Series / GV-Hub Box / GV-COM Box/ GV- DOM / GV-Joystick / GV-Remote / GV - Keyboard | |
| Languages | English/ Spanish | |
The UVS-CUBE VMS Hot-Swap 4-Bay System features the Intel Core i3 / i5 / i7 processor based on Coffee Lake 8th Generation architecture, the latest upgraded VMS system and 64-bit Microsoft Windows 10. UVS-CUBE VMS HOTSWAP 4-Bay System supports up to 32 IP Camera channels. With an additional license, connection with up to 32 channels of third-party IP devices is supported. You can also display your video surveillance in HD by using the built-in HDMI port on the system.
