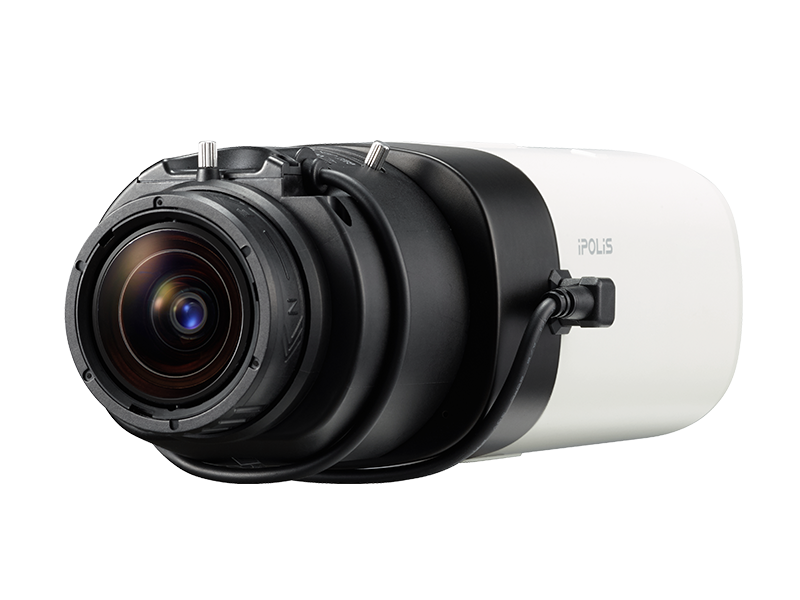

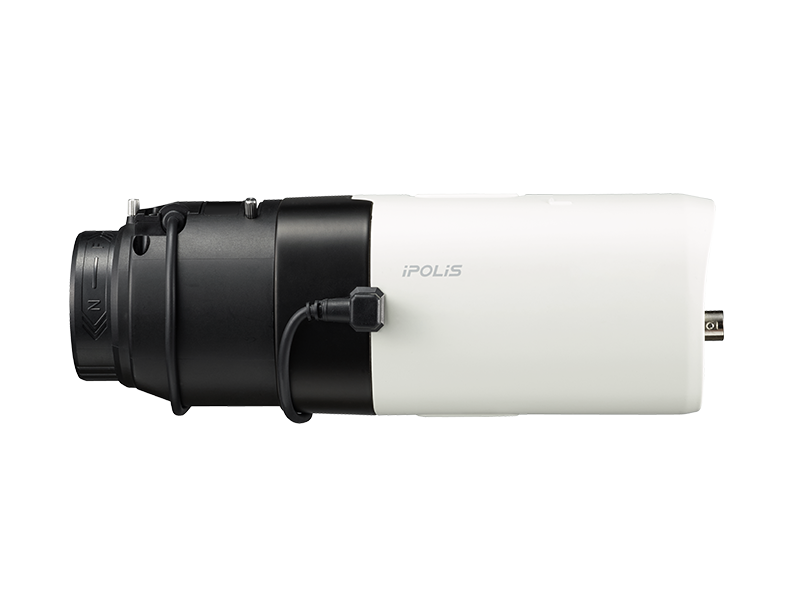

Hanwha’s 4K UHD & 12 Megapixel camera, features 12MP (4000 x 3000) / 8MP (3840 x 2160) resolution images at 20fps@4000 x 3000 / 30fps@3840 x 2160. Advanced features include edge storage, intelligent video analytics, bi-directional audio, & analog video output. Integration capabilities include alarm I/O & RS-485 controls. Simple Focus allows easy and perfect focus.
Features:
- 12MP (4000 x 3000) / 8M (3840 x 2160) resolution
- 20fps @ 4000 x 3000 / 30fps @ 3840 x 2160 H.264 Dual Codec encoding
- Simple focus, Day & Night (ICR)
- Intelligent video analytics
- micro SD/SDHC/SDXC memory slot
- Bi-directional audio support
| Technical Specifications | |
| VIDEO | |
| Imaging Device | 1/2.3" 12M CMOS |
| Total Pixels | 12megapixel (4,168 x 3,062) |
| Effective Pixels | 4,072(H) x 3,046(V) |
| Scanning System | Progressive |
| Min. Illumination | Color : 0.28Lux (1/30sec, F1.2), 0.01Lux (1sec, F1.2) B/W : 0.03Lux (1/30sec, F1.2), 0.001Lux (1sec, F1.2) |
| S / N Ratio | 50dB |
| Video Output | CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation BNC type |
| LENS | |
| Focus Control | Simple focus / Manual Remote control via network, Button control (Manual, Simple focus, Day & Night) |
| Lens Type | Manual / DC auto iris |
| Mount Type | C / CS |
| Color / Material | Black, Ivory / Aluminium |
| Dimensions (WxHxD) | 78.3 x 67.3 x 130.4mm (3.08" x 2.65" x 5.13") |
| Weight | 493g (1.09 lb) |
| OPERATIONAL |
| Camera Title | Off / On (Displayed up to 20 characters) |
| Day & Night | Auto (ICR) / Color / B/W / External / Schedule |
| Backlight Compensation | Off / BLC / HLC |
| Contrast Enhancement (DWDR) | SSDR (Off / On) |
| Digital Noise Reduction | SSNRIII (2D+3D noise filter) (Off / On) |
| Motion Detection | Off / On (4ea 4 points polygonal zones) |
| Privacy Masking | Off / On (32 zones of rectangular) |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor / mercury |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1 ~ 1/12,000sec) |
| D-PTZ | 8x, Digital PTZ (Preset, Group) |
| Flip / Mirror | Off / On |
| Intelligent Video Analytics | Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection with metadata (to NVR / SSM recording server) |

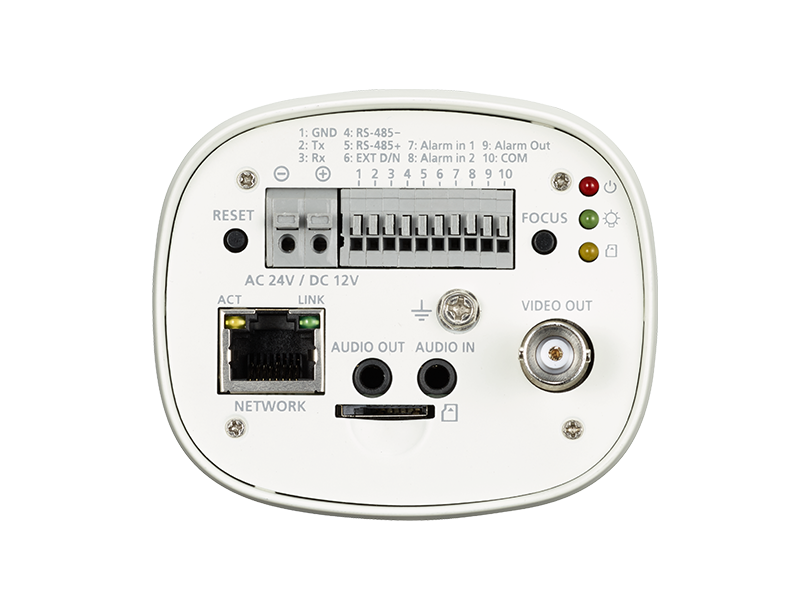

| Alarm I/O | Input 2ea / Output 1ea |
| Remote Control Interface | RS-485 |
| RS-485 Protocol | Samsung-T/E, Pelco-P/D, Sungjin, Panasonic, Honeywell, AD, Vicon, GE, Bosch |
| Alarm Triggers | Motion detection, Tampering, Audio detection, Face detecton, Video analytics, Alarm input, Network disconnection |
| Alarm Events | File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers) or NAS recording at event (Alarm triggers), External output |
| Ethernet | RJ-45 (10/100/1000BASE-T) |
| Video Compression Format | H.264 (MPEG-4 part 10/AVC), MJPEG |
| Resolution | 4000 x 3000, 4096 x 2160, 3840 x 2160, 2592 x 1944, 2048 x 1536, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.264 : 3840 x 2160 ~ 320 x 240 : 30fps, 4096 x 2160 : 25fps, 4000 x 3000 : 20fps MJPEG : 800 x 600 ~ 320 x 240 : 20fps, 1024 x 768 ~ 1920 x 1080 : 15fps, 2048 x 1536 ~ 2592 x 1944 : 10fps, 3840 x 2160 ~ 4000 x 3000 : 5fps |
| Smart Codec | Yes (Area based method) |
| Video Quality Adjustment | H.264 : Target bitrate level control, MJPEG : Quality level control |
| Bitrate Control Method | H.264 : CBR or VBR, MJPEG : VBR |
| Streaming Capability | Multiple streaming (Up to 3 profiles per each resolution mode) |
| Audio In | Selectable (Mic in / Line in), Max output level : 1Vrms |
| Audio Out | Line out (3.5mm mono mini jack) |
| Audio Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Audio Communication | Bi-directional audio |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication |
| Streaming Method | Unicast / Multicast |
| Max. User Access | Maxium 15 users access (Maxium 5 users each profile) |
| Edge Storage | micro SD/SDHC/SDXC (128GB) Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded. |
| Application Programming Interface | ONVIF profile S, SUNAPI (HTTP API) 2.0, SVNP 2.0 |
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish |
| Web Viewer | Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7 Supported Browser : Microsoft Internet Explorer (Ver. 8 ~ 11), Mozilla Firefox (Ver. 9 ~ 19), Google Chrome (Ver. 15 ~ 25), Apple Safari (Ver. 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only |
| Central Management Software | SmartViewer, SSM |
| Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH |
| ELECTRICAL | |
| Input Voltage / Current | 24V AC ±10%, 12V DC ±10%, PoE (IEEE802.3af, Class3) |
| Power Consumption | Max. 12.5W (24V AC, 50 ~ 60Hz), Max. 12W (12V DC), Max. 12W (PoE, Class3) |
