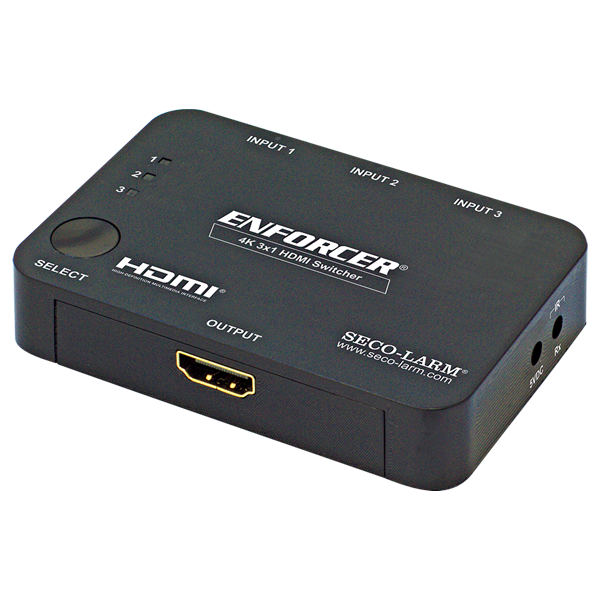

SECO-LARM - MVS-AH31-01NQ - HDMI Switcher, 3 HDMI Inputs, supports up to 4K/2K resolution and 3D video, individual status LEDs for each HDMI input, switch will automatically select the active input for added convenience, includes remote control for s
Part number:
MVS-AH31-01NQ
Price:
HDMI Switcher, 3 HDMI Inputs, supports up to 4K/2K resolution and 3D video, individual status LEDs for each HDMI input, switch will automatically select the active input for added convenience, includes remote control for switching between inputs.
Features:
- Add up to three HDMI inputs to almost any high-definition TV or HDMI display
- Supports up to 4K/2K resolution and 3D video
- Individual status LEDs for each HDMI input
- Switch will automatically select the active input for added convenience
- Use with IR over HDMI Kit (MVE-PN11-01Q) to control the HDMI switcher or HDMI sources via remote control even if they have been hidden away
- Includes remote control for switching between inputs
| Input Video Signal | 3.3V |
| Video Formats Supported | High-speed HDMI®, HDCP 1.4 |
| Audio Formats Supported | LPCM, Dolby-AC3, DTS7.1, DSD |
| Input DDC Signal | 5Vp-p (TTL) |
| Maximum Single Link Range | 4K*2K@30hz |
| Output Video | HDMI® |
| Deep Color | 48bit |
| Resolutions Supported | 4K/1080p/1080i/720p/576p/576i/480p/480i |
| Video Amplifier Bandwidth | 10.2Gbps |
| Video Input Connector | 3x HDMI® type A 19-pin female |
| Maximum Input Cable Length | 24AWG (15m), 26AWG (10m), 28AWG (5m) |
| Video Output Connector | 1x HDMI® type A 19-pin female |
| Maximum Output Cable Length | 24AWG (15m), 26AWG (10m), 28AWG (5m) |
| Operating Voltage | 5VDC |
| Power Supply | USB power |
| Current Draw | 150mA@5VDC |
| Operating Temperature | 32°~104° F (0°~40° C) |
| IR Pass-Through | 38kHz |
| Operating Humidity | 20~90% RH (without condensation) |
| Dimensions | 3-7/16″ x 2-3/8″ x 3/4″ (87 x 60 x 19 mm) |
| Weight | 2.1-oz (60g) |
| ESD Protection | ±8kV (air-gap discharge), ±4kV (contact discharge) |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
File
Manual
0.4mb
