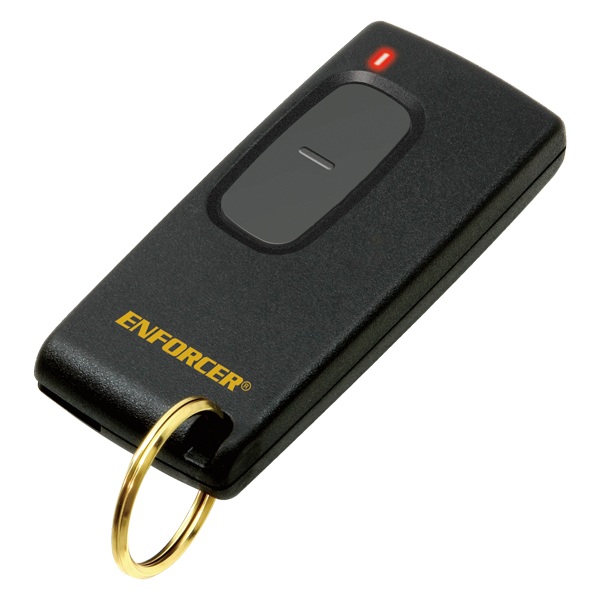

SECO-LARM - HL-951T1-SDQ - HL Series 1 Button Transmitter with DIP Coding
Part number:
HL-951T1-SDQ
Price:

The ENFORCER HL-Series RF transmitters and receivers offers significantly increased range with greatly increased immunity to interference, whether physical obstacles, temperature extremes, or other environmental factors. DIP-switch coding allows you to easily program multiple transmitters with the same code and easily change the code later if needed. This can be very useful for job sites, gated communities, and any situation where multiple users need to control the same receiver.



Features:

  • Includes one 3VDC lithium battery (CR-2032)
  • Operating range up to 1,800ft (550m)*
  • LED transmission and low-battery indicator
  • Compatible with all SECO-LARM HL-series receivers of the same frequency
  • Waterproof – IP68
  • Also available without logo – HL-951T1-SDUQ
  • Patented
TypeDIP-Switch programmed
Power1x 3VDC button battery (CR-2032, included)
Battery lifeUp to 10 years*
RF Frequency917MHz†
Operating rangeup to 1,800ft (550m)‡
# of Buttons1
Channels1
Code combinations254 with 8-pin DIP switch
IP RatingIP68 Waterproof
Dimensions3-1/16″x1-5/16″x1/2″ (78x34x13 mm)
