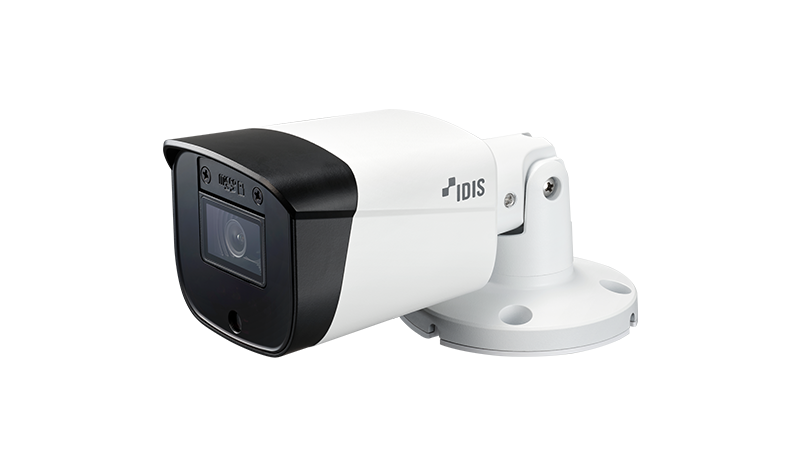

DC-T4218WRA2.8mm - 2MP AI Bullet Camera LightMaster NIR - IDIS
- • 2MP (1920 x 1080) resolution
- • IDIS Deep-Learning Analytics (IDLA)
- • IR LED (30 m / 98.4 ft (4 ea))
- • NIR Sensor
- • Day and night (ICR)
- • True wide dynamic range (WDR)
- • Easy installation with DirectIP NVR
- • H.265 and Intelligent Codec
- • PoE (IEEE 802.3af Class 3)
- • IK10, IP67
- • Alarm in / out
- • Audio in / out
- • Micro SD/SDHC/SDXC
| Video | |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | 2.8mm |
| Aperture | F1.6 |
| Iris Control | Fixed Iris |
| Angular Field of View | 105.8º(H),56.4º(V),121.2º(D) |
| Min. Illumination | COLOR : 0.1 lux @ F1.6 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 30 m / 98.4 ft (4 ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | - |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Object Metadata: Human, Vehicle, Face IDLA: Object Detection, Intrusion, Loitering, Line Crossing, Face Detection ETC: Video Motion Detection, Active Tampering Alarm |
| Video Out | - |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0 |
| Max. Frame Rate | 60ips : 1920 x 1080 30ips : 1920 x 1080(WDR) |
| Supported Resolution | 1920x1080, 1280x720, 640x360, 352x240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -30°C ~ +55°C (-22°F ~ +131°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE IEEE 802.3af (Class 3) |
| Power Consumption | PoE, IEEE 802.3af (Class 3), 8.2W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | 81.5mm x 75mm x 200.5mm (3.21" x 2.95" x 7.89") |
| Weight | 0.75kg (1.65 lb) |
The DC-T4218WRA2.8mm is a 2MP AI bullet camera with a 1/2.8" CMOS sensor providing 1920x1080 resolution. It features a fixed-focal 2.8mm lens with an F1.6 aperture, offering a 105.8-degree horizontal field of view. It includes IR LEDs for illumination up to 30 meters. The camera uses H.265, H.264, and M-JPEG compression with quadruple streaming at up to 60 fps in standard mode and 30 fps with WDR active.
Its feature is onboard AI processing for object metadata, detecting humans, vehicles, and faces, along with specific behaviors like intrusion, loitering, and line crossing. Additional imaging features include 120dB True WDR and defog. The housing is rated IP67 for ingress protection and IK10 for vandal resistance. It operates in temperatures from -30°C to +55°C, starting up above -20°C, and is powered solely by PoE 802.3af with a consumption of 8.2W.
