- • 5MP (2560 x 2048) resolution
- • Fixed-focal lens (f=1.5mm)
- • Day and night (ICR)
- • True wide dynamic range (WDR)
- • Two-way audio
- • Alarm in / out
- • Micro SD/SDHC/SDXC, Smart Failover
- • PoE (IEEE 802.3af Class 2)
- • Easy installation with DirectIP NVR
- • Supports ONVIF
| Video | |
| Image Sensor | 1/1.8” CMOS |
| Max. Resolution | 2560 x 2048 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | 1.5mm |
| Aperture | F1.8 |
| Iris Control | Fixed Iris |
| Angular Field of View | 180º(H), 180º(V), 180º(D) |
| Min. Illumination | Color : 0.15 lux @ F1.8 B/W : 0.015 lux @ F1.8 |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | - |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control), 3DNR Level, WDR Level |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone, Heatmap |
| Viewing Composition | 1O |
| Video Out | - |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.264 - CBR / VBR, H.265 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 30ips : 2560 x 2048 (WDR) |
| Supported Resolution | 2560x2048, 640x512 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone, Heatmap |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1(Built In MIC)+1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | - |
| Outdoor Ready | - |
| Operating Temperature | -10°C ~ 50°C (-22°F ~ 122°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE (IEEE 802.3af Class 2) |
| Power Consumption | PoE (IEEE 802.3af Class 2), 5.6W |
| Approval | FCC, CE, UL, KC |
| Mechanical | |
| Dimensions | Ø122 x 35.8mm(Ø4.80" x 1.40") |
| Weight | 0.280kg (0.62 lb) |

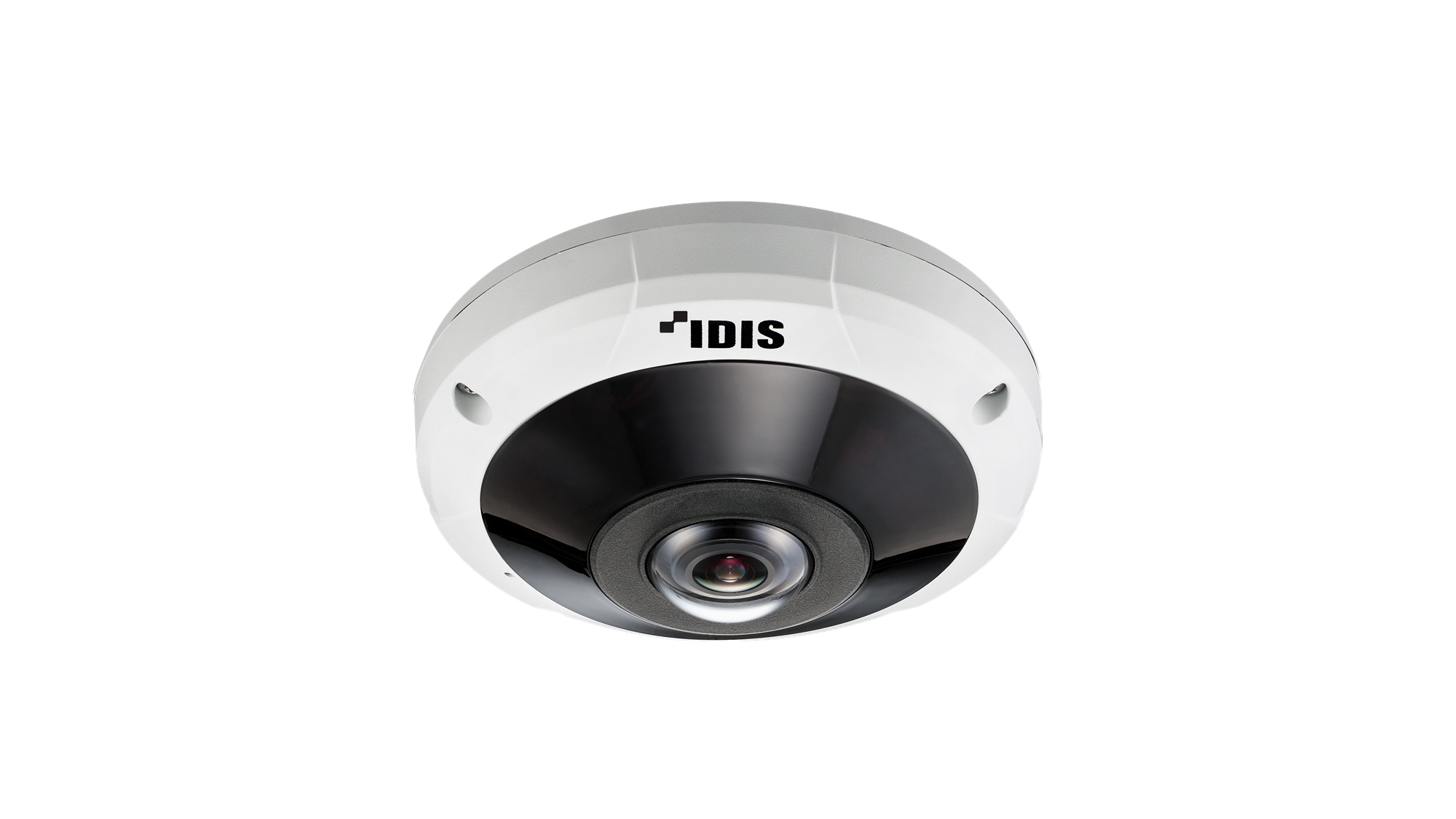

This is a 5 Megapixel (2560 x 2048) true 360-degree fisheye dome camera, utilizing a 1/1.8-inch CMOS sensor and an ultra-wide 1.5mm F1.8 fixed lens to capture a complete 180-degree hemispherical field of view in all directions (horizontal, vertical, and diagonal). Its defining feature is the 10 (1O) viewing composition software, which dewargs the single fisheye image into multiple usable formats like a full 360 panorama, quad-view, or virtual PTZ feeds for comprehensive area monitoring.
The camera provides strong low-light performance down to 0.015 lux in black-and-white mode and features 120dB True Wide Dynamic Range and defog for challenging conditions. It compresses video using H.265 and H.264 at up to 30 fps and includes two-way audio and heatmap analytics. Designed as a compact indoor solution, it is powered solely by Power over Ethernet (IEEE 802.3af, Class 2) at 5.6 watts, supports local storage via microSD card, and integrates with ONVIF Profile S/T and DirectIP 2.0 systems.
