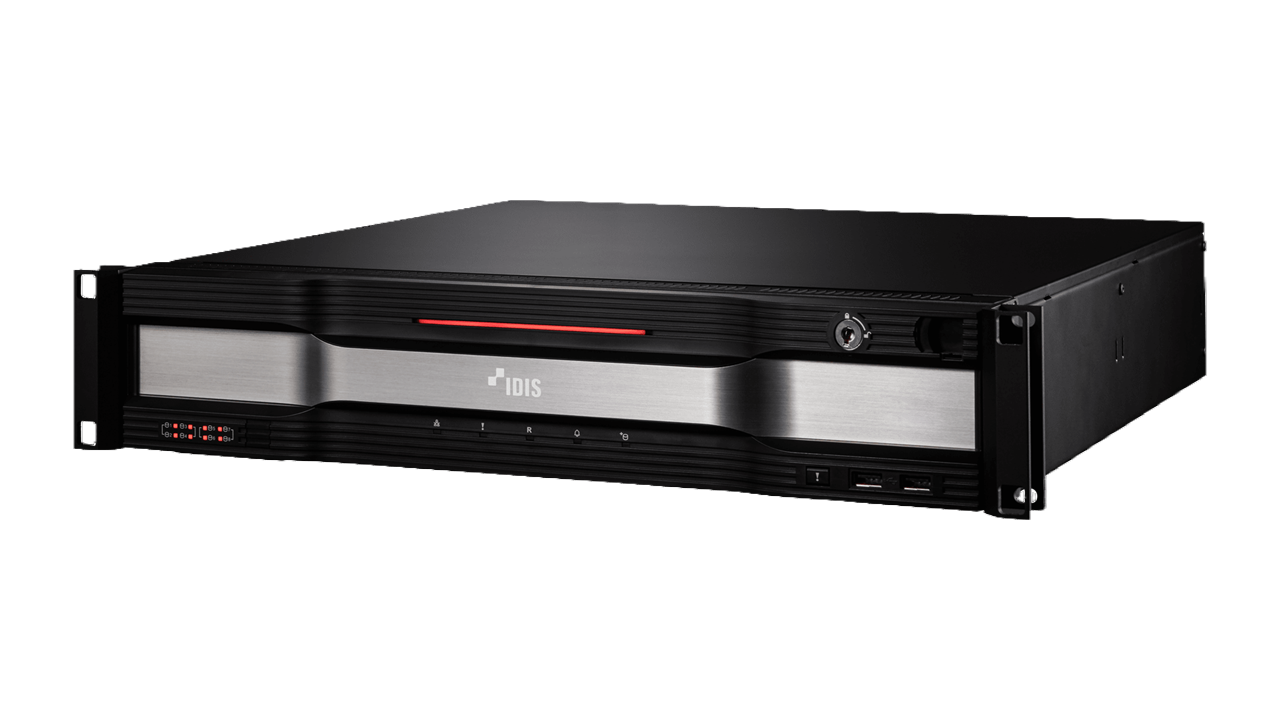

VA-2400 - Max 24 Supporting CH / 48 AI Resources - IDIS
Part number:
Price:
- • Intrusion Detection
- • Anomaly Detection
- • Crowd
- • Fall
- • Loitering
- • Object Counting & Detection
- • Object Left Behind/Removed
- • Perimeter Monitoring
- • PPE (mask/uniform)
- • Restricted Areas
- • Scene Change
- • Sensor Integration
- • Smoke, Fire, Weapon Detection
| SYSTEM | |
|---|---|
| IDIS Solution Suite | Compatible with IDLA VA Service |
| Network Connection | 2 GbE RJ-45 Ports (1000Base-T) |
| Channels available for Analytics | Up to 24ch |
| GPU | NVIDIA A2000, 6GB |
| Operating System | Linux Operation System |
| SSD | 250GB(M.2 Type) for OS and ISS VA Service |
| Processor | Intel I5-10500, 3.1GHz |
| Memory | DDR4 PC-25600, 16GB |
| Video Outputs | 2 HDMI |
| USB | 6 ( 2 Front USB 2.0 4 Back ( 3 USB 3.0 TYPE-A 1 TYPE-C)) |
| MECHANICAL | |
| Form Factor | 2U RACK Mount Chassis |
| Unit Dimension (W x H x D) | 482.6mm x 88mm x 523.5mm (19" x 3.5" x 20.6") |
| Unit Weight | 11.8kg (26.0 lbs) |
| ELECTRICAL | |
| Power Input | 100-240V~, 50/60 Hz, 6.0 - 3.0A |
| Power Supply | Single Power |
| Power Consumption | 270W |
| ENVIRONMENTAL | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 0% to 90% |
| ACCESSORIES SUPPLIED | |
| Power Cord | 125V 15A |
| GENERAL | |
| Certifications | FCC, CE, CB, UL, KC |
Name
Description
Size
Downloads
File
VA-2400_Datasheet.pdf
0.5mb
The VA-2400 is a dedicated video analytics appliance designed to work with IDIS video management software. It is compatible with the IDIS Deep Learning Analytics service and can process video analytics for up to 24 camera channels, providing up to 48 concurrent AI resources. The system is equipped with an NVIDIA A2000 GPU (6GB), an Intel I5-10500 processor, 16GB of RAM, and a 250GB M.2 SSD for the Linux operating system and analytics service. It features two HDMI outputs and two Gigabit Ethernet ports. The appliance is housed in a 2U rack-mountable chassis with a single power supply. It operates within a temperature range of 0°C to 40°C and up to 90% humidity, with a power consumption of 270W from a 100-240V AC source.
