VA-9600 - Max 96 Supporting CH 192 AI Resources - IDIS
- • Intrusion Detection
- • Anomaly Detection
- • Crowd
- • Fall
- • Loitering
- • Object Counting & Detection
- • Object Left Behind/Removed
- • Perimeter Monitoring
- • PPE (mask/uniform)
- • Restricted Areas
- • Scene Change
- • Sensor Integration
- • Smoke, Fire, Weapon Detection
| SYSTEM | |
|---|---|
| IDIS Solution Suite | Compatible with IDLA VA Service |
| Network Connection | 2 GbE RJ-45 Ports (1000Base-T) |
| Channels available for Analytics | Up to 96ch |
| GPU | 2x NVIDIA RTX 4000 Ada, 20GB GDDR6 |
| Operating System | Linux Operation System |
| SSD | 1TB(M.2 Type) for OS |
| Processor | Intel Xeon Silver 4416+ 2.0GHz to 3.9GHz |
| Memory | 4x32GB DDR5, 128GB |
| Video Outputs | 1 HDMI |
| USB | 3 ( 1 Front USB 2.0 4 Back ) |
| MECHANICAL | |
| Form Factor | 2U RACK Mount Chassis |
| Unit Dimension (W x H x D) | 482.0mm x 86.80mm x 772.13mm (18.98" x 3.42" x 30.40") |
| Unit Weight | 20.98kg (46.25 lbs) |
| ELECTRICAL | |
| Power Input | 100-240V~, 50/60 Hz, 6.0 - 3.0A |
| Power Supply | Single Power |
| Power Consumption | 800W |
| ENVIRONMENTAL | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 0% to 90% |
| ACCESSORIES SUPPLIED | |
| Power Cord | 125V 15A |
| GENERAL | |
| Certifications | FCC, CE |

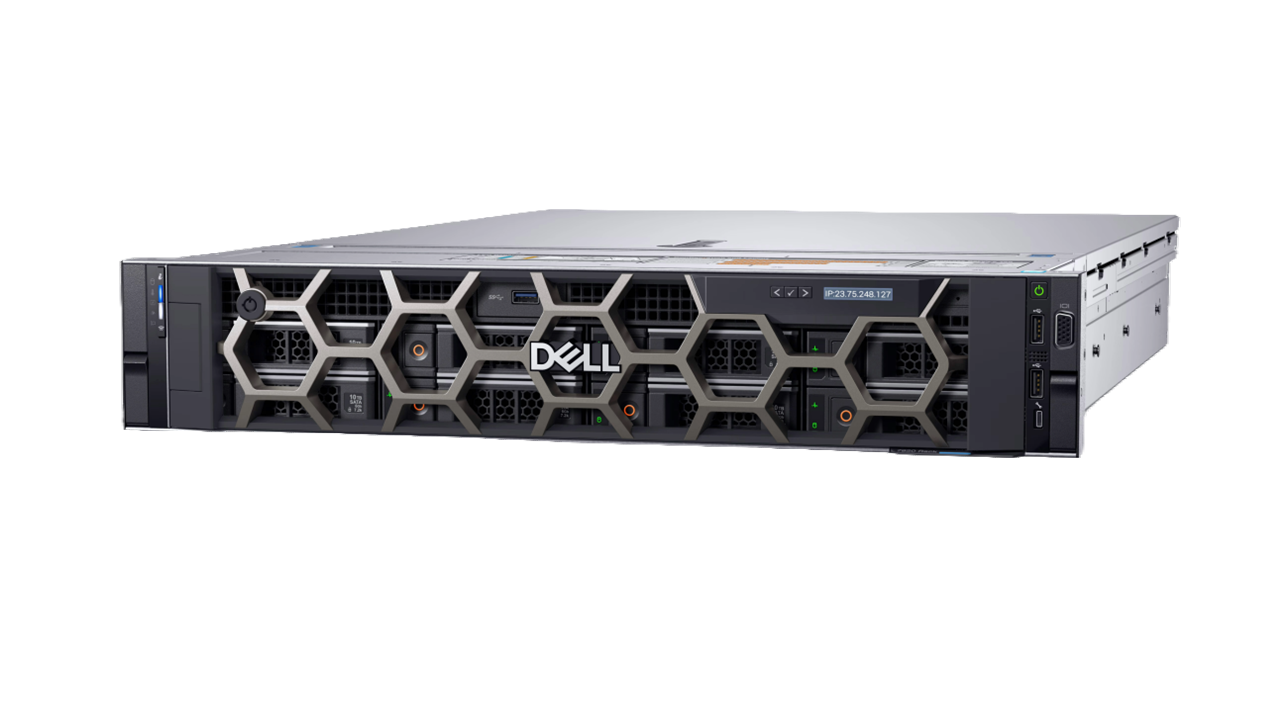

The VA-9600 is an enterprise-level video analytics appliance designed to work with IDIS video management software. It is compatible with the IDIS Deep Learning Analytics service and can process video analytics for up to 96 camera channels, providing up to 192 concurrent AI resources. The system is equipped with dual NVIDIA RTX 4000 Ada Generation GPUs (20GB each), an Intel Xeon Silver 4416+ processor, 128GB of DDR5 RAM, and a 1TB M.2 SSD for the Linux operating system. It features one HDMI output and two Gigabit Ethernet ports. The appliance is housed in a 2U rack-mountable chassis with a single power supply. It operates within a temperature range of 0°C to 40°C and up to 90% humidity, with a power consumption of 800W from a 100-240V AC source.
