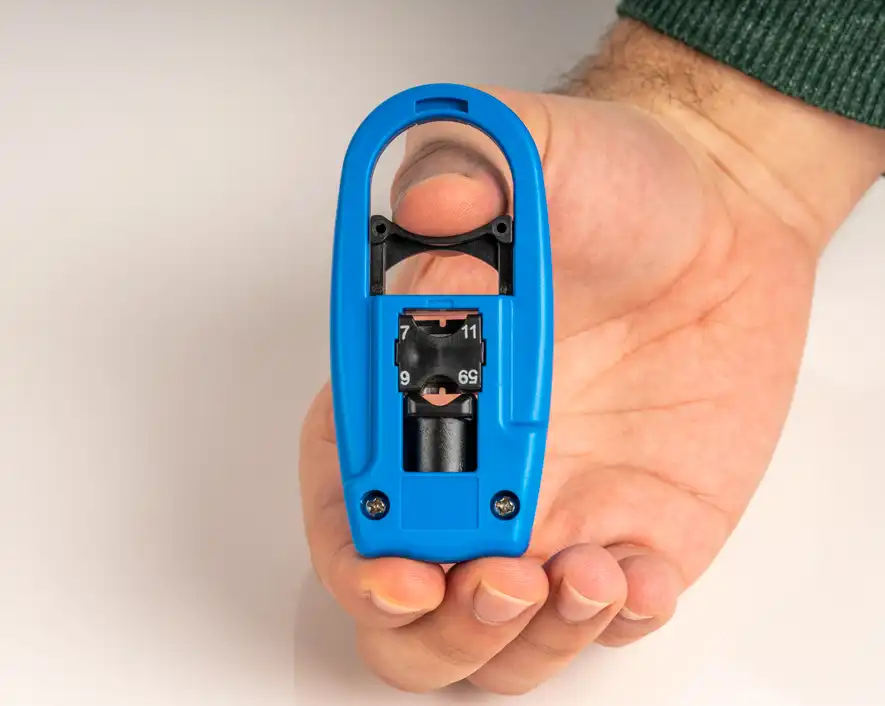

- • The included blade cartridge provides a two-level strip for terminating F, BNC and RCA connectors.

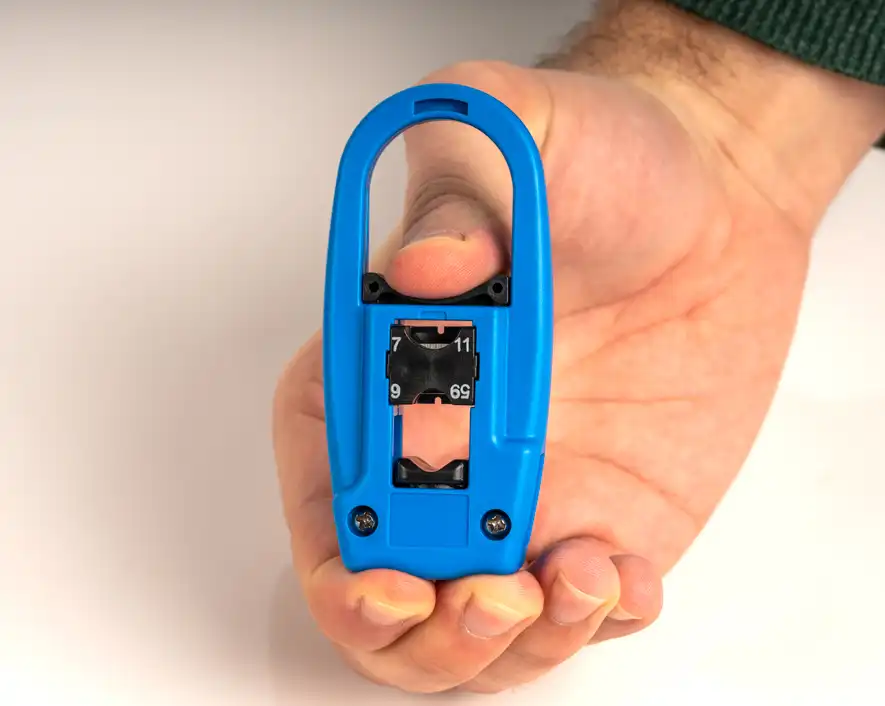

- • The cartridge is reversible for ambidextrous use.
- • The hook-and-loop strip on the side of the tool easily folds back the braided shield on the cable.
- • The large finger loop enables smooth rotation during use.
- • The stripping action removes 6 mm of the jacket, 8 mm of the shield and 13 mm of the dielectric, exposing the centre conductor.
| Cable Type | COAX |
| Cable Size | RG59/6/N48 & RG7/11 |
| Cable Diameter | Jacket: 0.25" (6.35 mm) Shield & Dielectric: 0.3125" (7.9375 mm) |
| Strip Length | - |
| Dimensions | 3.7 in x 1.73 in x 0.94 in (9.39 cm x 4.38 cm x 2.37 cm) |
| Weight | 0.07 lb (31.78 g) |
Name
Description
Size
Downloads
File
Data Sheet - Coaxial Cable Stripper - CST-92.pdf
0.4mb

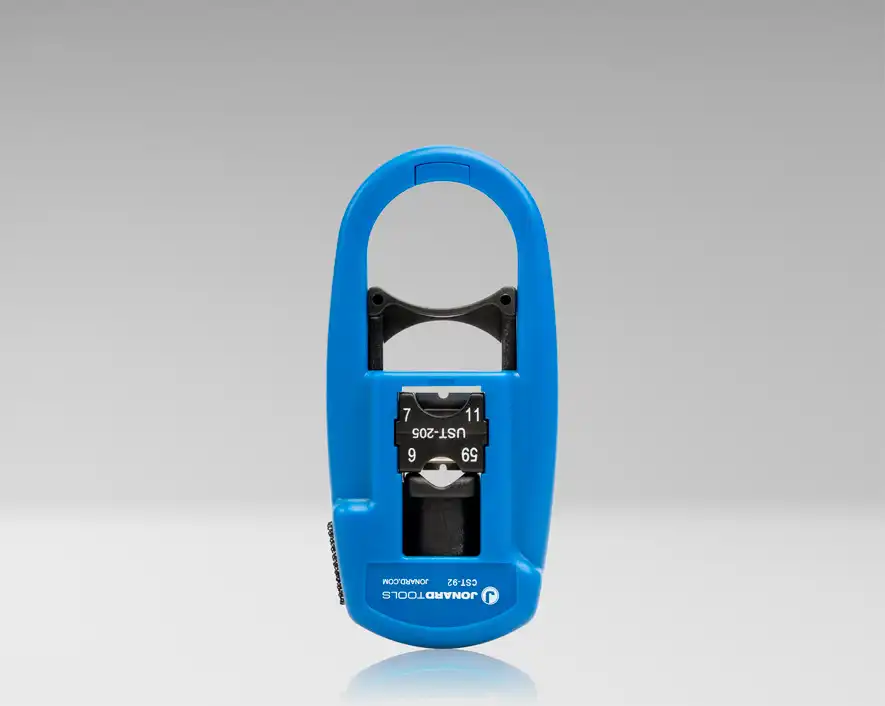

The CST-92 COAX stripping tool from Jonard Tools is designed for quick and easy termination of RG59, RG6, RG6 Tri & Quad Shield, N48, RG7 and RG11 coaxial cables.
