Jonard - FLC-1002 - Singlemode Fiber Optic Launch Box 1000 m, SC/UPC-SC/UPC
Part number:
Price:

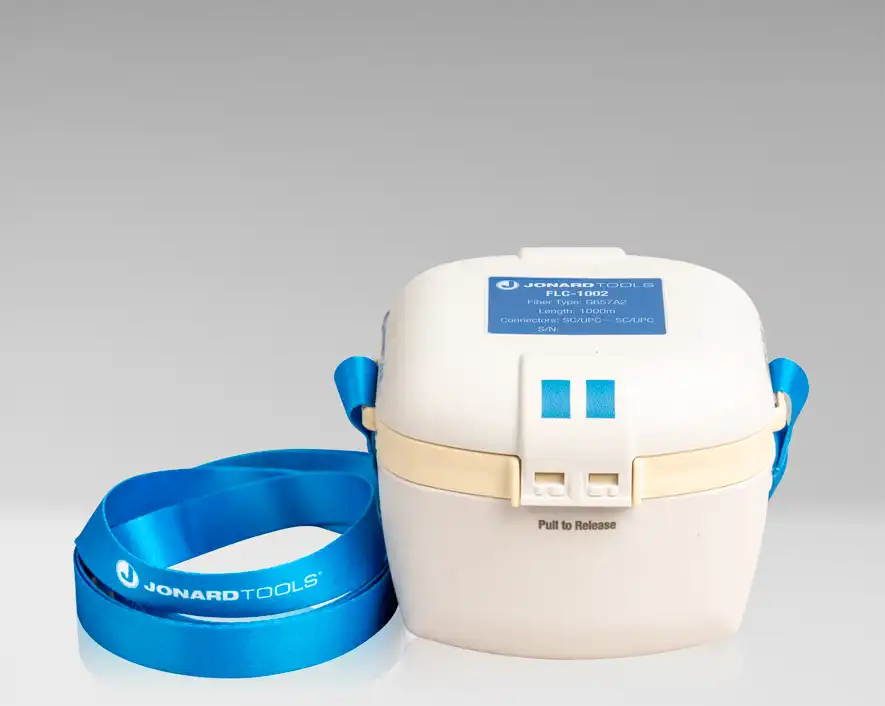

- • Its compact housing and shoulder strap make it perfect for use on the go.
- • The 6.56-foot (2-metre) pigtails are terminated with an SC/UPC connector on each end.
- • The steel interlocking armour beneath the fibre jacket protects the fibre from accidental damage.
- • The polishing types are colour-coded for quick and easy identification of the launch cable.

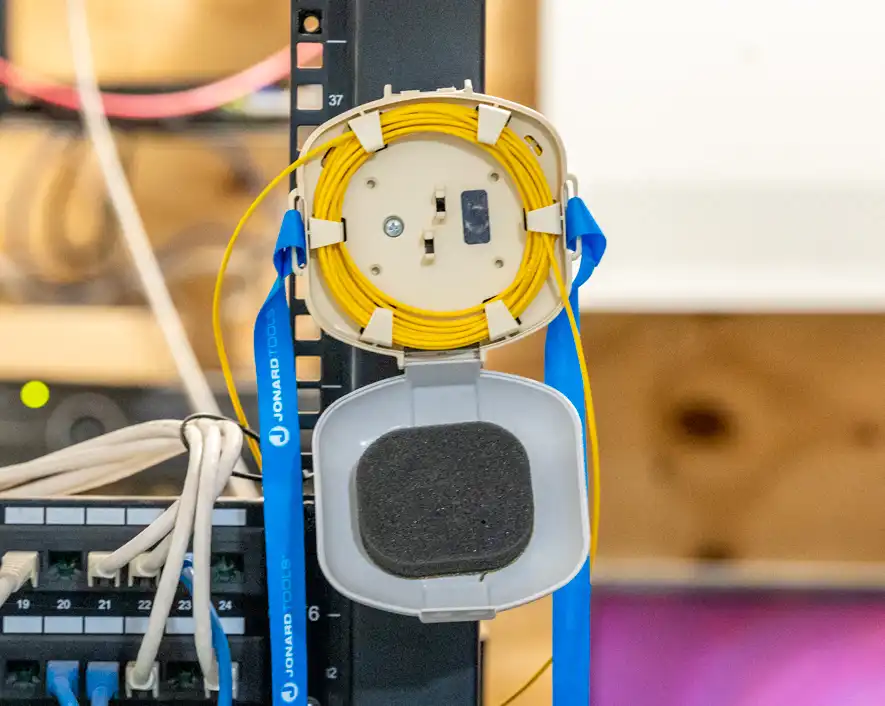

- • A convenient magnet on the bottom of the housing allows for quick and easy mounting onto fibre racks.
- • The 3,281-foot (1,000-metre) length of fibre is ideal for most OTDR testing applications.
| Cable Length | 3281 ft (1000 m) |
| Connector Types | SC/UPC, SC/UPC |
| Input/Output Length | 4.9 ft (1.5 m) |
| Max Insertion Loss @ 1310 nm | ≤ 0.35 dB/km |
| Max Insertion Loss @ 1550 nm | ≤ 0.22 dB/km |
| Max Insertion Loss @ 800 nm | ≤ 2.50 dB/km |
| Max Insertion Loss @ 1300 nm | ≤ 0.70 dB/km |
| SM Connector Insertion Loss | ≤ 0.1 dB |
| MM Connector Insertion Loss | ≤ 0.15 dB |
| Return Loss | RL ≥ 65 dB (APC); RL ≥ 55 dB (UPC) |
| Fiber Type | G657A2 |
| Dimensions | 4.2 in x 4.15 in x 3.35 in (10.67 cm x 10.54 cm x 8.51 cm) |
| Weight | 0.64 lb (290.56 g) |
Name
Description
Size
Downloads
File
DataSheet_Singlemode_Fiber_Optic_Launch_Boxes_FLC_2.pdf
0.7mb

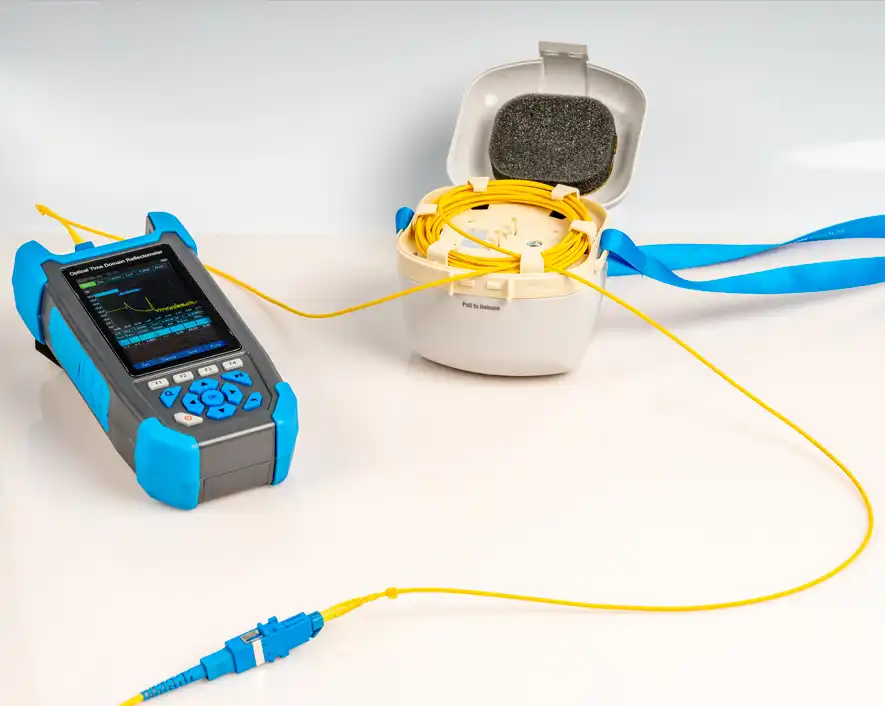

With its unique compact housing and 1000 metres of fibre, this launch cable is ideal for eliminating dead zones in reflectometric tests using an OTDR.
