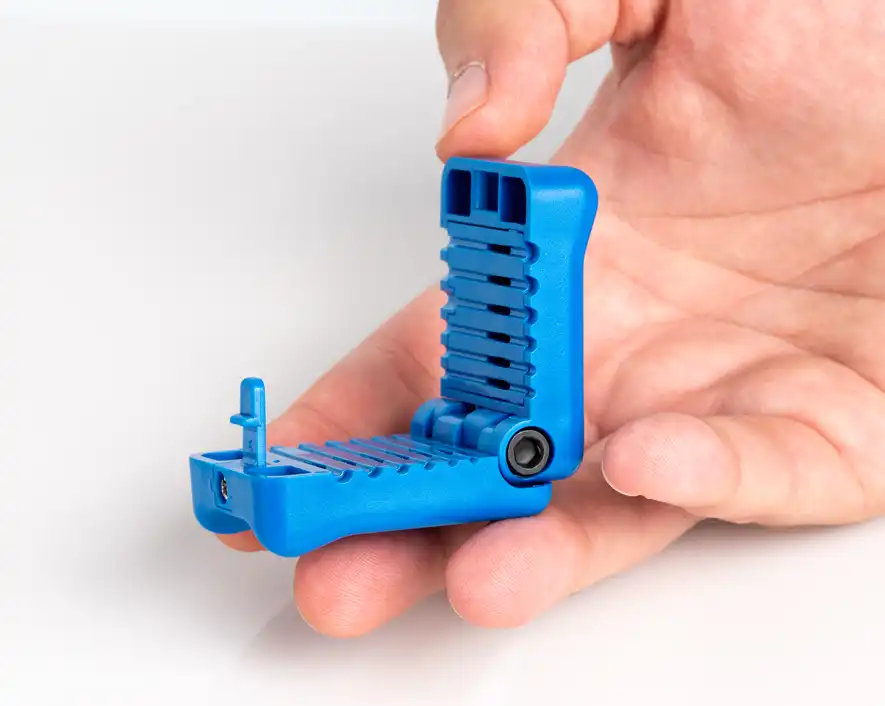

Jonard - MS-116 - Mid Span Slitter for ABF Cables 1,1 - 1,6 mm
Part number:
Price:
- • Consists of 6 precision slitting grooves ranging in size from 1.1 mm to 1.6 mm

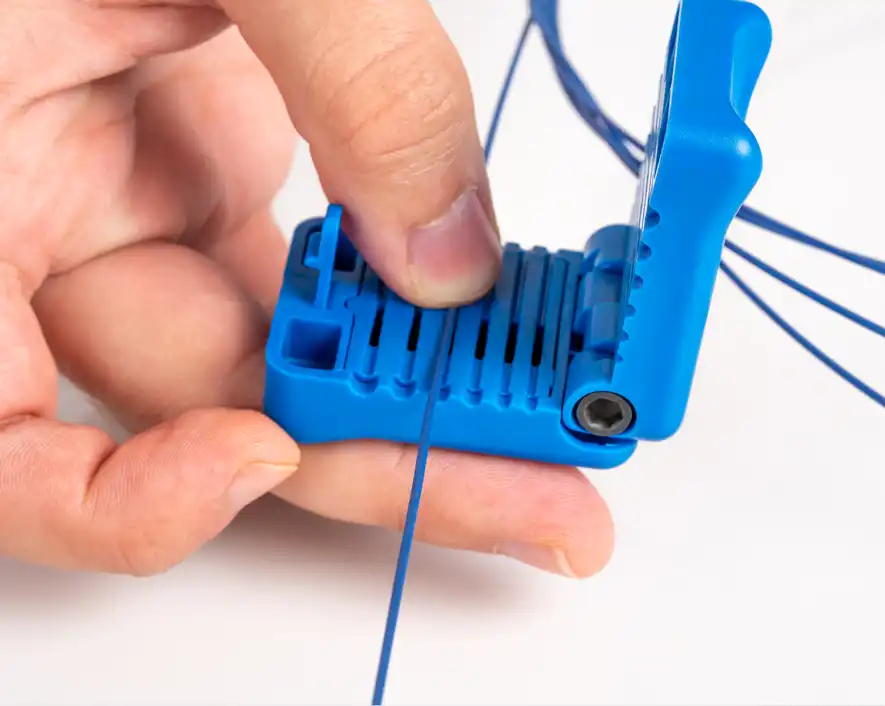

- • Perfect for slitting Air Blown Fiber and other similarly sized fiber cables

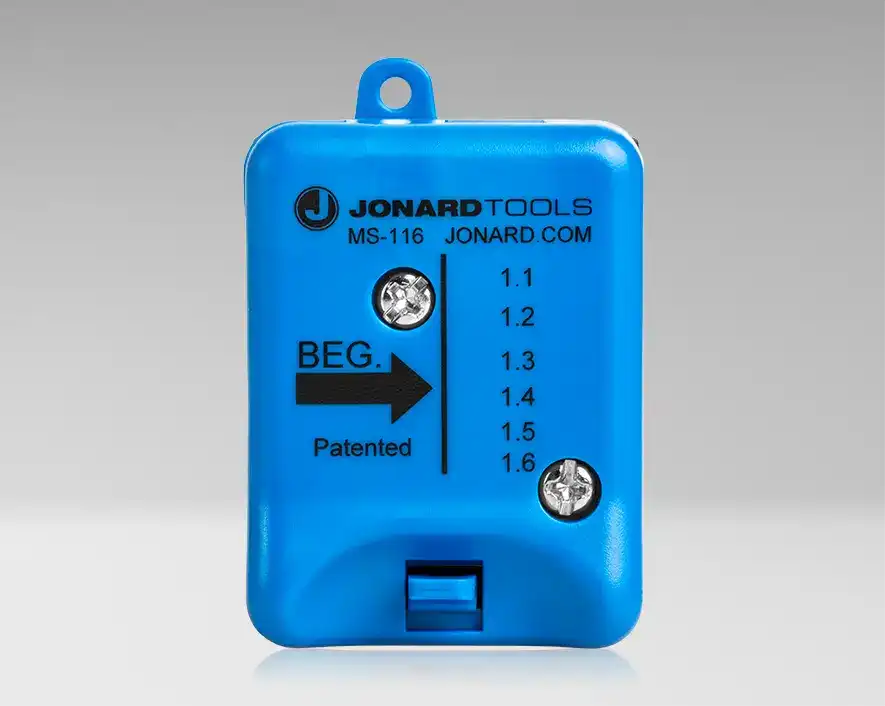

- • Indicator line on top of the unit indicates the position of the blade for accurate slitting and ringing
- • Compact design weighing less than 2.5 oz with included tethering hole makes it perfect to use in tight spaces or on the go
- • Replacement blade set available, part number: MS-116RB
- • Blades last for 5,000 slits/cuts
- • Lifetime Warranty
| Cut Type | Slit |
| Number of Slitting Grooves | 6 |
| Cable Type | Air Blown Fiber |
| Cable Diameter | 1.1 mm - 1.6 mm (0.043" - 0.063") |
| Dimensions | 2 in x 1 in x 1 in (5.08 cm x 2.54 cm x 2.54 cm) |
| Weight | 0.09 lb (40.86 g) |
Name
Description
Size
Downloads
File
Data Sheet - Mid Span Slitter for Hexatronic Stingray Fiber Cables 1.1 - 1.6 mm - MS-116.pdf
0.4mb
This mid-span slitter is designed with six precision grooves and blades. It is perfect for removing the sheath from air-blown fibre cables without damaging the fibres inside.
