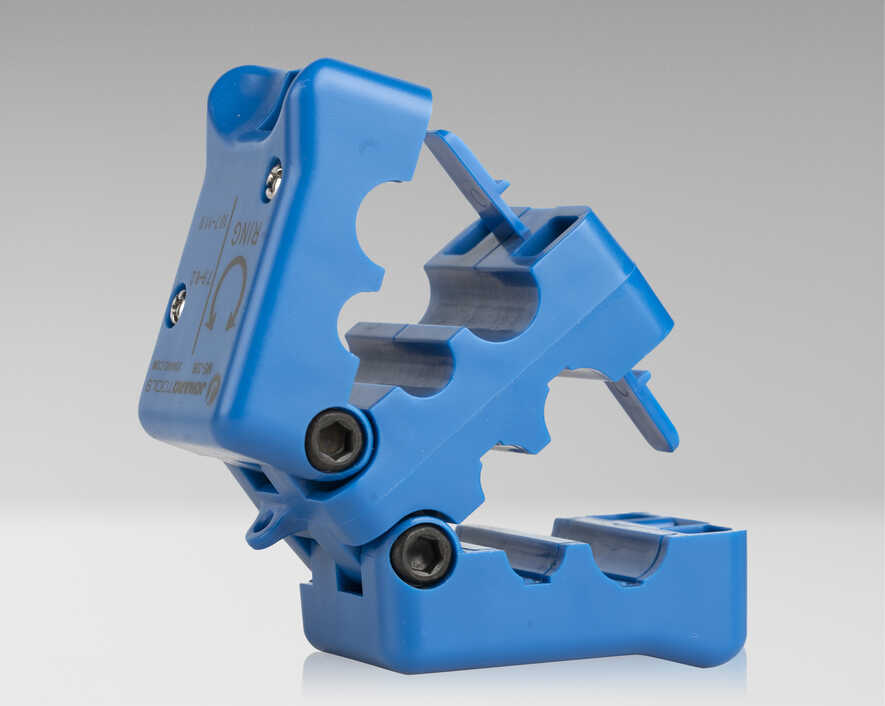

The PATENTED MS-336 Mid Span Slit and Ring Tool is designed to provide easy access to optical fibers in thin walled outer jacketed cables. The MS-336 is an extension of the MS-326 series tool targeting larger cables such as Cornings Minixtend HD 288 and 432 fiber count cables.

Features:

• Consists of 2 precision slitting grooves and 2 precision ring grooves ranging in sizes from 7.9-8.2 & 10.7-11 mm

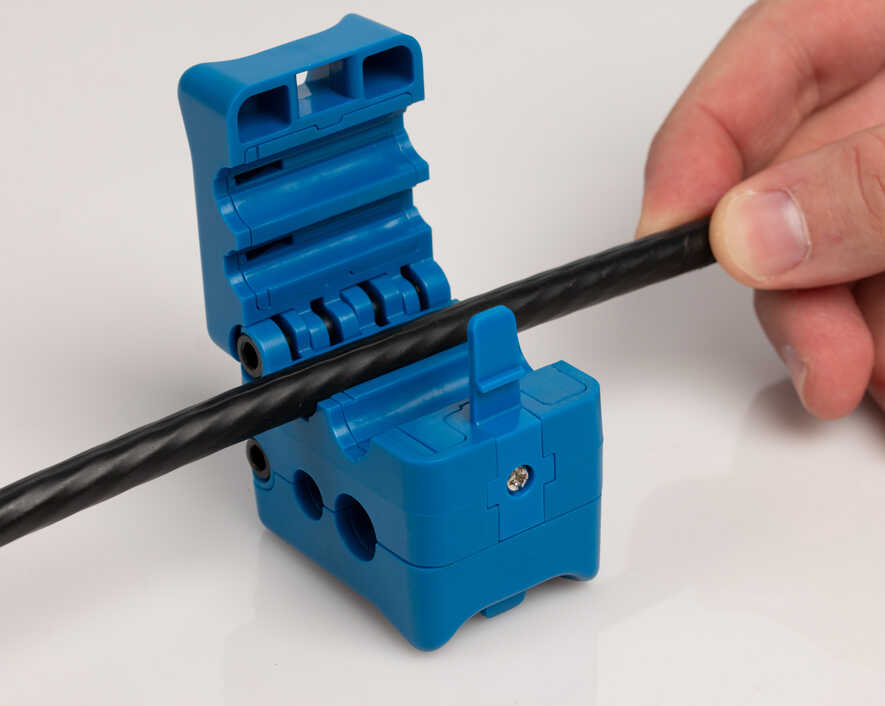

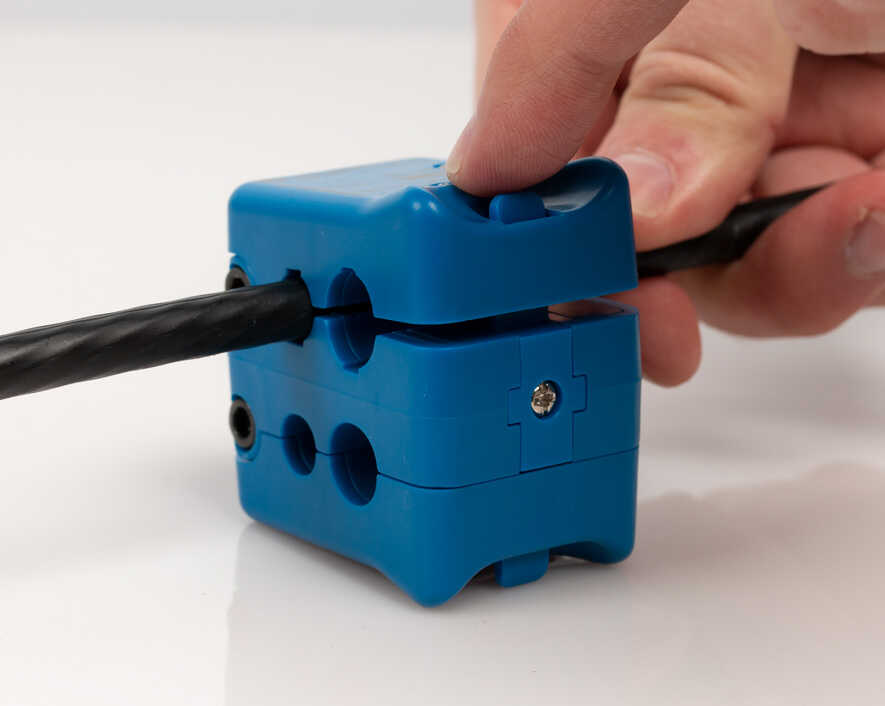

• One side of tool performs Radial/ring cuts and the other side slits the cable (longitudinal cut)
• Indicator line on top of the unit indicates the position of the blade for accurate slitting and ringing
• This tool is specifically designed for use on Corning Minixtend HD 288F and Minixtend HD 432F cable. Both with FastAccess
• Replacement blades available, part number MS-336RB
• Blades last at least 5,000 slits/cuts

Groove Sizes: 7.9-8.2 | 10.7-11.0 mm
