Jonard - SPC-MC4L - Solar Panel Crimper with Locator and MC4 Die
Part number:
Price:

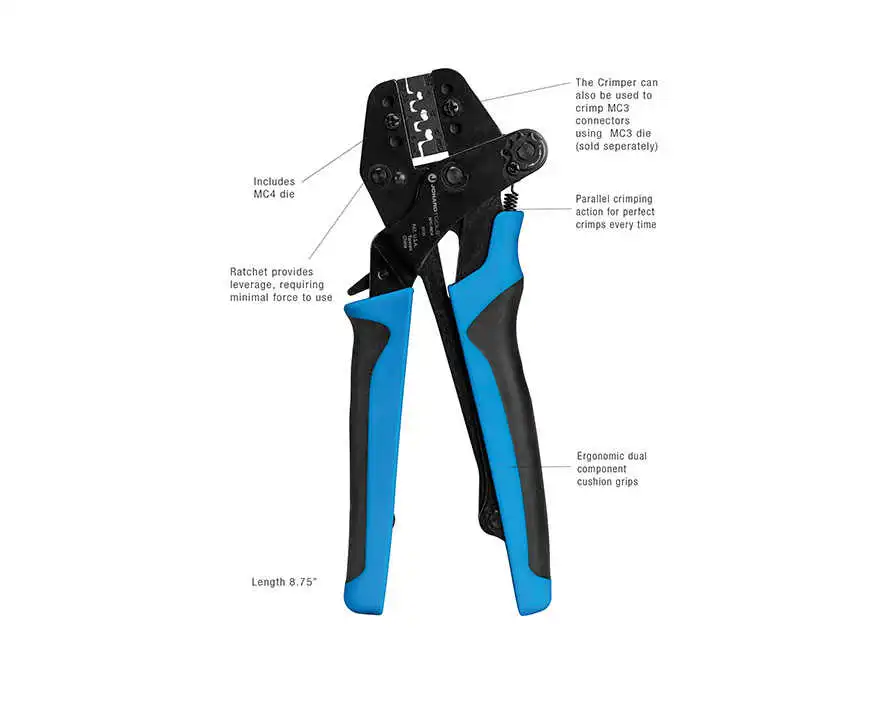

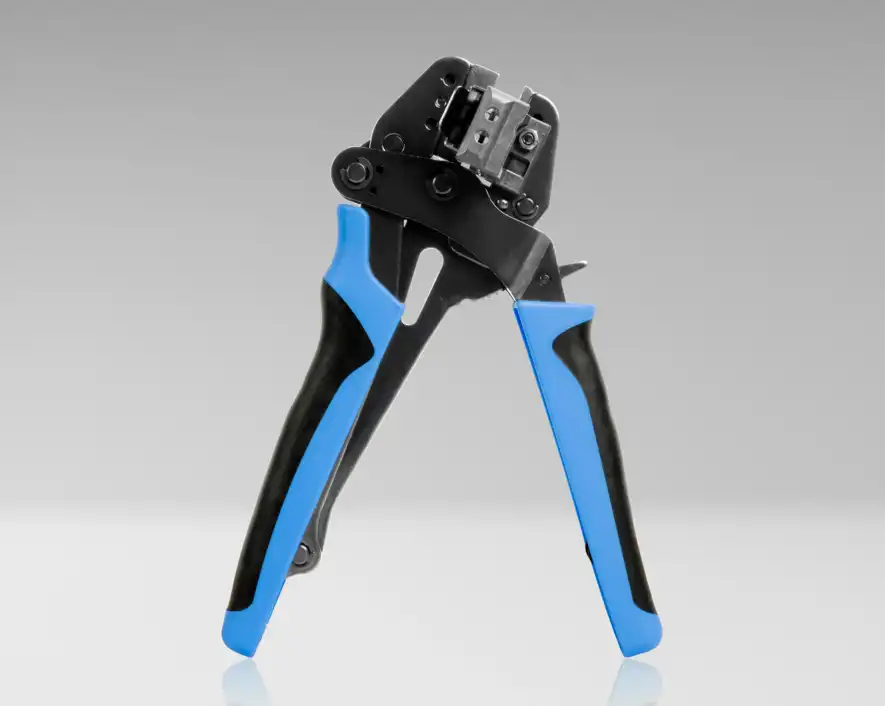

- • The included locator holds the MC4 connectors in place, allowing for quick and easy crimping.
- • The parallel jaws feature an adjustable pressure-regulating gear and a self-locking design, ensuring that solar panel connectors are crimped perfectly every time.
- • Built-in ratchet for ease of use.
- • Crafted from hardened carbon steel with a black oxide coating to ensure strength and durability.
- • The dual-component grip provides greater comfort and improved ergonomics.
| Application Type | MC4 Solar Panel Crimping |
| Connector Type | MC4 Male/Female Solar Panel Connectors, can also crimp MC3 connectors using a separate die |
| Wire Diameter | 14, 12, or 10 AWG or (2.5 / 4.0 / 6 / 10 mm²) |
| Material | Carbon Steel with Black Oxide |
| Dimensions | 8.75" x 1.63" x 3" (22.23 cm x 4.14 cm x 7.62 cm) |
| Weight | 1.37 lb (621.4 g) |
Name
Description
Size
Downloads
File
Data Sheet - Solar Panel Crimper - SPC-MC4L.pdf
0.6mb
