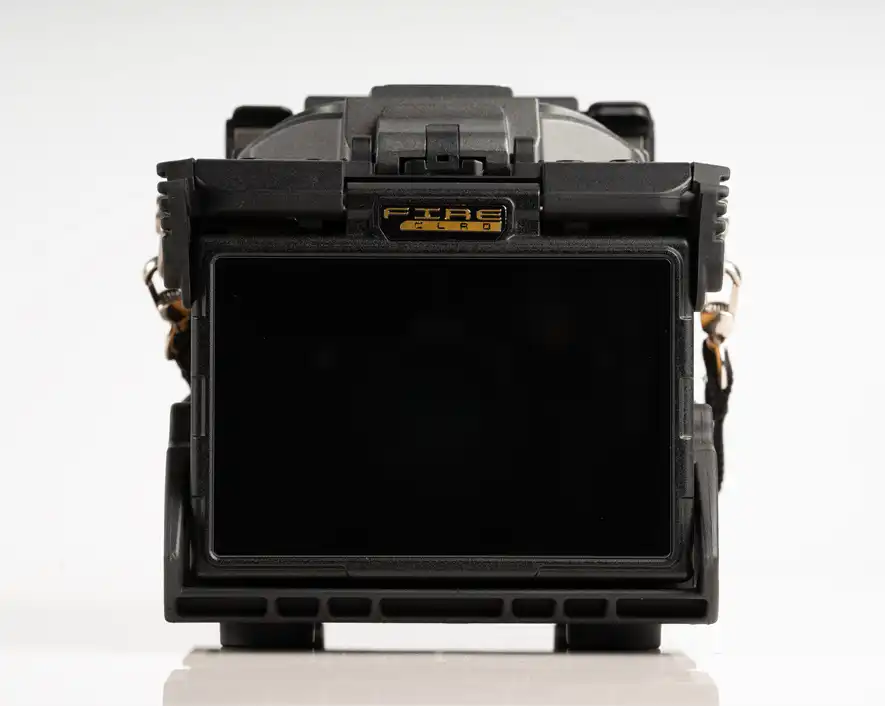

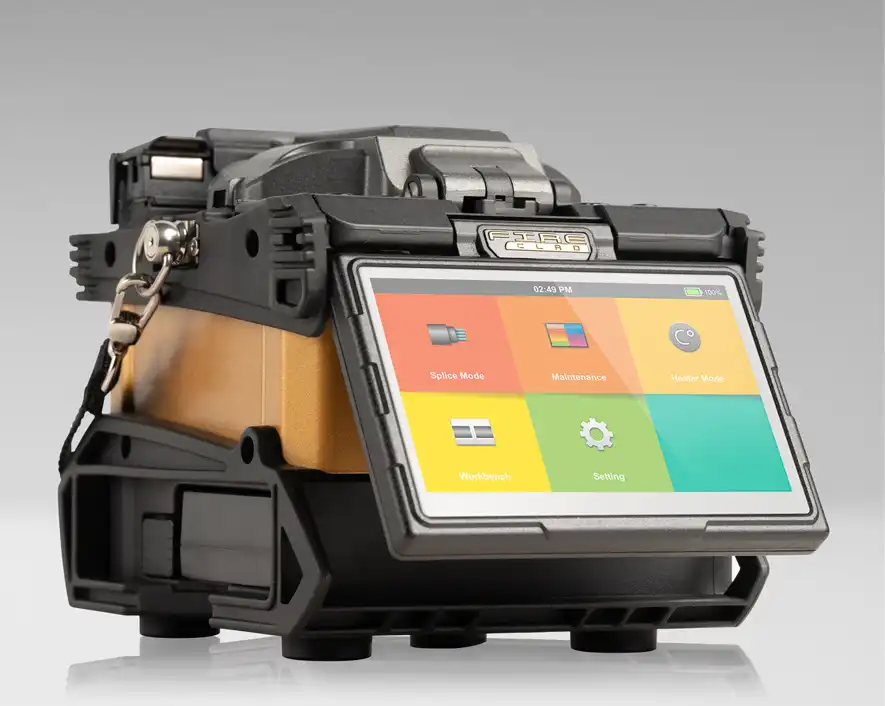

Jonard - SPCL-1 - SPARC Fusion Splicer, Clad Alignment
Part number:
Price:
- • Splice fibre optic cables in as little as four seconds.
- • Pressure heater technology reduces heating time to just 9 seconds.
- • A versatile fibre holder that allows you to easily switch between standard and loose-tube fibres.
- • Improved lighting for better visibility in dark conditions.
- • An intuitive, full touchscreen for an enhanced user experience.
- • The 7000 mAh battery provides up to 400+ splicing and heating cycles on a single charge.
- • Rugged design with IPx2 water resistance, IP5X dust resistance and drop-tested shock resistance from 30".
- • Stores up to 20,000 splice data or 10,000 images on-board.
| Alignment Method | Active V-Groove Clad Alignment |
| Number of Fibers | Single |
| Applicable Fibers | SM (ITU-T G.652& T G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655) |
| Coating Diameter | 100µm - 3mm |
| Cladding Diameter | 80 - 150µm |
| Cleave Length | 5 - 16mm |
| Typical Splice Loss | SM: 0.03dB / MM: 0.01 dB / DS: 0.05dB I NZDS: 0.05dB I G.657: 0.03dB |
| Return Loss | >>60 dB |
| Splice Time | Quick mode: Avg. 4 sec / SM mode: Avg. 5 sec |
| Splice Programs | Max 128 modes |
| Automatic Calibration | Automatic Arc Calibration by air pressure & temperature |
| Electrode Life Span | 6000 Arc Discharges |
| Heating Programs | Max 32 modes |
| Heating Time | Quick: 9s / Average: 13s |
| Protection Sleeve Length | 20 mm - 60 mm |
| Data Output | USB-C |
| Splice Memory | 20,000 Splice Data / 10,000 Splice Images |
| Battery Capacity | 7000mAh / Operation Cycle: 400+ cycles (Splicing + Heating) |
| Power Supply | AC Input 100 - 240V, DC Input 9 - 19V |
| Monitor | 5.0" Color LCD display, Full Touch Screen |
| Magnification | x360, x520 |
| Pull Test | 1.96 - 2.25 N |
| Dimensions | 6.5" x 6.2" x 6" (16.51 cm x 15.75 cm x 15.24 cm) |
| Weight | 5.2 lbs (2358.68 g) |
Name
Description
Size
Downloads
File
SPARC Clad - Datasheet.pdf
1.5mb
File
SPARC - Quick Guide Full Size.pdf
0.4mb
File
SPARC Family - Datasheet.pdf
0.5mb
File
Cladding Alignment Fusion Splicer User Manual.pdf
1mb
The SPARC Clad Alignment Fusion Splicer is an advanced active V-groove cladding alignment fusion splicer that ensures impeccable fibre splicing precision, reliability and efficiency. Designed for fibre optic professionals, it combines rapid splicing times with cutting-edge features to provide a seamless and dependable splicing experience, even in challenging environments.
