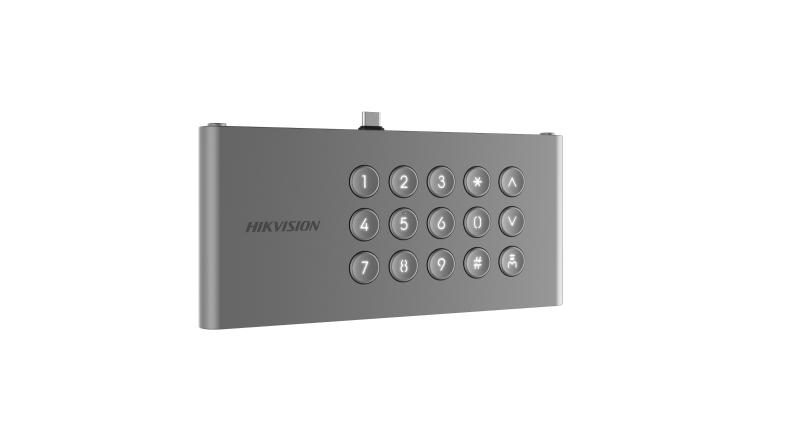

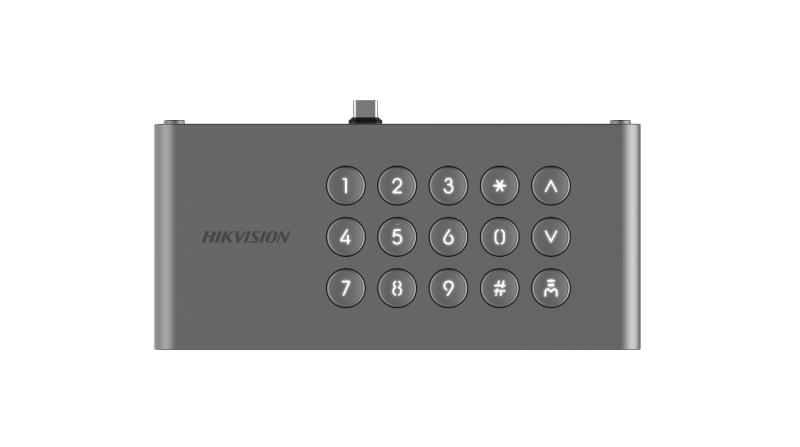

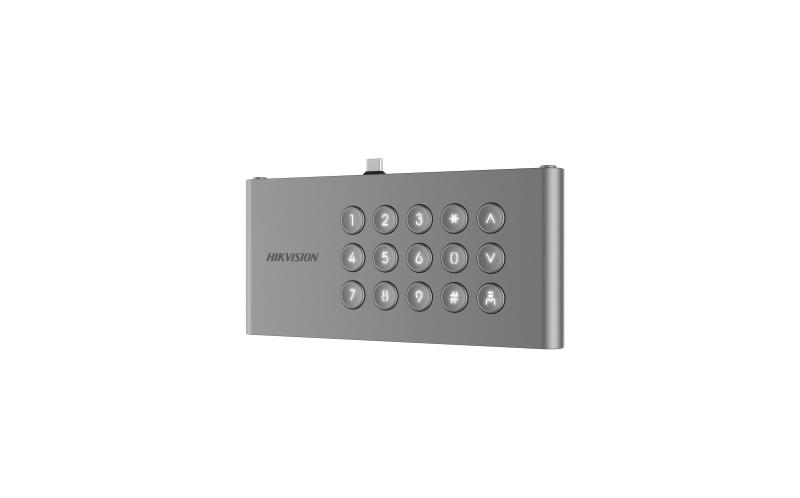

Hikvision - DS-KDM9633-KP - Keypad Module for DS-KD9633 Door Station
Part number:
DS-KDM9633-KP
Price:
Keypad module of KD9633
Features:
- Keypad module for KD9633 series door station
- Backlight compensation behind the keypad
- IP65 & IK07 high protection level
- Easy to use and extend
| Specification | |
| Display parameters | |
| Operation method | / |
| Video parameters | |
| Wide dynamic range (WDR) | / |
| Supplement light | / |
| Audio parameters | |
| Audio input | / |
| Capacity | |
| Fingerprint capacity | / |
| Device interfaces | |
| RS-485 | / |
| USB | 1 USB type-C, only connect to KD9633 |
| General | |
| Button | 15 physical buttons |
| Installation | Surface mounting and flush mounting |
| Weight | Net weight: 0.335 kg Gross weight: 1.637 kg |
| Protective level | IP65 and IK07 |
| Working temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 74 mm × 159.2 mm × 29.2 mm (2.9" × 6.3" × 1.1") |
| Power supply | 5 VDC, 0.5 A |
| Application environment | Outdoor |
| Material | Aluminum alloy and plastic |
