Luminys - K56-8L1A2 - 8 Channel 5MP LumiLuxLite IP Bundle

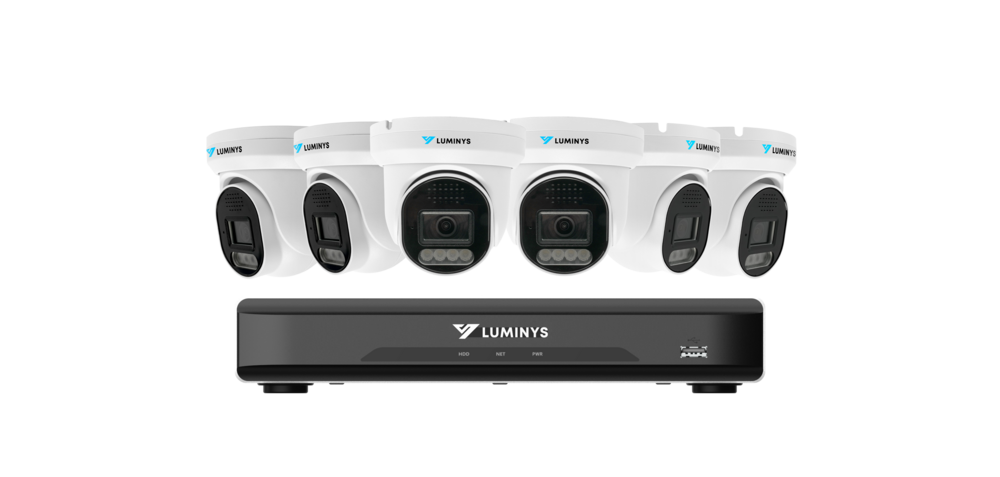

The K56-8L1A2 is a full-featured security solution. It contains one (1) Luminys R3 series NVR and six (6) 5MP network cameras. This smartly-designed kit is highly cost-effective and designed with a curated selection of technologies and features to provide high-quality security without unnecessary or complicated add-ons. With all devices part of the powerful Luminys security ecosystem, integration between the cameras and NVR is seamless and provides the highest levels of compatability and functionality.
Key Technologies:
R3 series NVRs are compatible with the LumiViewer desktop platform and mobile app. LumiViewer streamlines security management by providing real-time surveillance, playback of historical footage, and instant alarm notifications. With features like device sharing, an alarm hub for safety alerts, visual intercom for video calls and door control, and remote access management, LumiViewer ensures comprehensive and efficient monitoring.
LumiLuxLite technology allows cameras to capture clear, full-color video day or night. When motion is detected, LumiLuxLite cameras switch from IR LEDs to white-light LEDs to illuminate a scene, then switch back to IR mode once motion has ceased to prevent light pollution and energy inefficiency.
Intelligent Motion Detection (iMD) technology accurately detects and filters humans and vehicle in a monitoring area. Using an advanced algorithm, iMD can accurately detect humans and vehicles while reducing false alarms caused by other objects, animals, or lighting. Users can be alerted to iMD events for timely security. iMD events can be saved for future reference and easily searched for at a later time for forensic analysis and to assist in investigations.
Key Features:
- 8CH 5MP NVR with 2TB HDD
- 6 x 5MP LumiLuxLite Cameras
- Mini Form Factor, 1 SATA
- 4K NVR With 2 TB HDD
- Eight (8) Channels With One (1) SATA Port
- HDMI and VGA Output
- PoE Plug-and-Play
- 5MP Turret Housing
- 2.8 mm Fixed Lens
- LumiLuxLite — IR and White-Light LEDs
- iMD
Certifications and Compliance
- NDAA Compliant
- FCC
- ONVIF
| NVR Specifications - R31-8PA2 R3 Series NVR, 4K 8 Channel, 4 PoE With 2 TB HDDR3 Series NVR, 4K 8 Channel, 4 PoE With 2 TB HDD | |
| Video Input | Eight (8) Channels |
| Recording Resolutions | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Output Resolutions | HDMI: 4K (3840 × 2160), 1920 × 1080, 1280 x 1024, 1280 x 720; VGA: 1920 × 1080, 1280 x 1024, 1280 x 720 |
| Live View/Playback Resolutions | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Decoding Format | H.265, H.264, H.264H, H.264B, MJPEG |
| Decoding Capability | Two (2) Channel: 8MP at 30 fps; Eight (8) Channel: 1080p at 30 fps |
| Synchronous Playback | 1, 4, 8 Views |
| Supported Analytics by Camera | Intelligent Motion Detection Eight (8) Channels |
| Smart Search | Search by Target Classification and Event Type |
| SATA | One (1) Port |
| HDD | 2 TB Pre-Installed HDD, (Max. 10 TB per HDD) |
| Network | One (1) Port (RJ-45 Self-Adaptive Ethernet (10/100/1000 Mbps)) |
| PoE | Eight (8) Ports (RJ-45 Self-Adaptive Ethernet (10/100 Mbps)) |
| USB | Front Panel: One (1) USB 2.0 Port; Rear Panel: One (1) USB 2.0 Port |
| Audio | Input: One (1) RCA Channel; Output: One (1) RCA Channel |
| Network Bandwidth | Incoming/Recording: 80 Mbps; Outgoing: 60 Mbps |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS |
| Interoperability | ONVIF, RTSP |
| PoE Standard | IEEE 802.3 af/at |
| Client | LumiViewer, LumiViewer Mobile App, LumiCloud |
| Power Supply | 48 V/53 VDC, 2 A/1.8 A |
| Power Consumption | < 10 W (Without HDD); PoE: 72 W (Max. Output for Single Port: 25.5 W) |
| Weight | 2.1 kg (4.6 lb) Without HDD |
| Operating Temperature | -10 °C to 55 °C (10 °F to 131 °F), 10% to 93% |
| Dimensions (W x L x H) | 260.0 mm × 233.2 mm × 43.7 mm (10.2 in. × 9.2 in. × 1.8 in.) |
| Certifications | FCC |
| Compliance | NDAA |
| Camera Specifications - N3T-5KA2 (Kit Only)² 5MP LumiLuxLite Fixed Turret Network Camera (2.8 mm)5MP LumiLuxLite Fixed Turret Network Camera (2.8 mm) | |
| Camera Series | Luminys N3 Series (Starter) |
| Image Sensor | 1/2.7-in. 5MP Progressive CMOS |
| Maximum Resolution | 2880 x 1620 |
| Minimum Illumination | Color: 0.01 Lux at F1.6 (AGC On); B/W: 0 Lux with IR Light On |
| Number of Illuminators | Four (4) White-Light LEDs, Four (4) IR LEDs, Supports LumiLuxLite |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance | IR: Up to 30.0 m (98.4 ft); White Light: Up to 20.0 m (65.6 ft) |
| Electronic Shutter Speed | Automatic, Manual, 1/5 s to 1/20,000 s |
| Installation Angle | Pan: 0° to 355°; Rotation: 0° to 360°; Tilt: 0° to 80° |
| S/N Ratio | > 38 dB |
| Lens Iris Type | Fixed |
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperture | F1.6 |
| Field of View | Horizontal: 108.3°; Vertical: 59.9°; Diagonal: 126.8° |
| Video Compression | H.265, H.264 |
| Codec Supported | Standard |
| Stream Capability | Two (2) |
| Supported Resolutions | 2880x1620, 2560x1440, 2304x1296, 1920x1080, 1280x720, D1 (704x576), VGA (640x480), CIF (352x288) |
| Maximum Frame Rate | Main: 2880x1620 @ 25 fps; Sub: D1 @ 25 fps |
| Video Bit Rate | H.265: 128 kbps – 6,144 kbps; H.264: 64 kbps – 1,024 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night Mode | Automatic (ICR), Color, Black & White |
| Light Balancing | DWDR, BLC, HLC |
| Image Angle | 0°/180° |
| Mirror Rotation | Supported |
| Privacy Masking | Four (4) Zones |
| Intelligent Motion Detection | Supported (Alarms for Vehicles & Humans) |
| Audio Compression | G.711U |
| Audio Interface | Input: Built-In Microphone; Output: Built-In Speaker |
| Alarm Events | Motion Detection, iMD |
| Network Interface | RJ-45 (10/100 Base-T) |
| Network Protocols | HTTP, TCP/IP, IPv4, DHCP, NTP |
| Interoperability | ONVIF (Profile S), SDK |
| Supported Browsers | Chrome, Firefox, Edge |
| Storage | FTP, SFTP, Micro SD (Max. 128 GB) |
| Power Supply | 12 VDC (-15% to +25%), PoE (802.3af) |
| Power Consumption | Max (White-Light On): 8.5 W; Normal (IR Off): 2.0 W |
| Net Weight | 0.5 kg (1.0 lb) |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Operating Humidity | < 90% RH |
| Protection Rating | IP66 |
| Dimensions | φ 111.0 mm × 100.8 mm (φ 4.4 in. × 4.0 in.) |
| Material | Metal |
| Certifications | FCC, IC |
| Compliance | NDAA |
