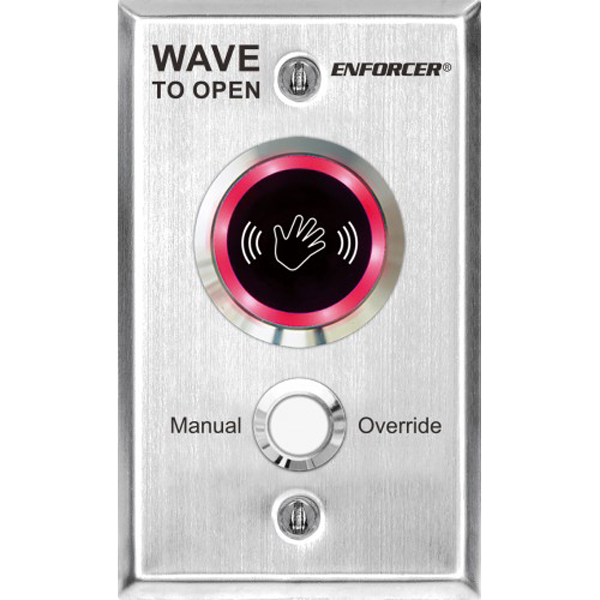

SECO-LARM - SD-9263-KSVQ - Outdoor Wave-to-Open Sensor with Manual Override
Part number:
SD-9263-KSVQ
Price:
Outdoor Single-gang No-Touch Sensor with Mechanical Override Button. Adjustable Sensing Range relay and Trigger Duration. "NO TOUCH EXIT" Printed on Plate. ETL Listed. Conforms to UL Std.
The ENFORCER Outdoor Wave-to-Open Sensor is a full-featured exit plate which uses IR technology to allow egress from a protected area or activate a device with the simple wave of a hand. Since no touch is required, this sensor is suitable for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices.
Features:
- ETL UL294
- Adjustable sensor range up to 7″ (18cm)
- Stainless steel plate
- Weatherproof (IP65) for outdoor use*
- 1.2A relay, adjustable trigger duration 0.8~30 seconds or toggle
- LED illuminated sensor area for easy identification

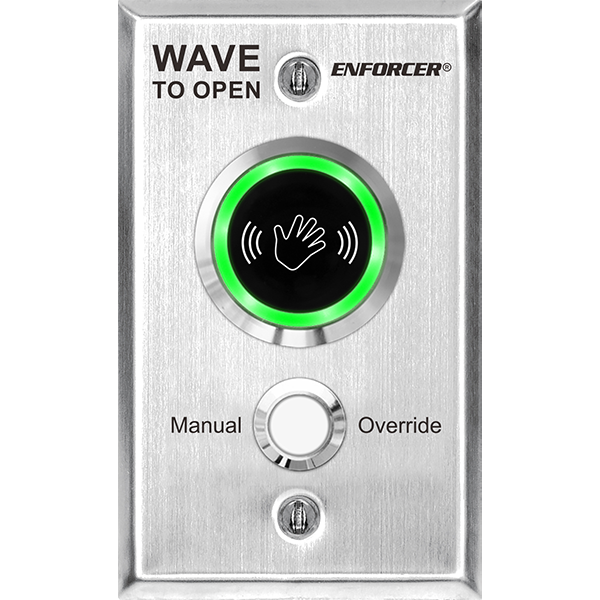

- Selectable LED colors (turns from red to green or green to red) to show sensor activated
| Type | “Wave-to-Open” Request-to-Exit Plates with Adjustable Delay Timer, for Outdoor Use |
| Current Draw | Standby – 16mA@12VDC / 25mA@24VDC, Triggered – 25mA@12VDC / 32mA@24VDC |
| Sensing Range | 2″~7″ (5~18cm) |
| Operating Voltage | 12~24 VDC |
| Reaction time | 10mS |
| LEDs – Red | Standby (Colors are reversible.) |
| LEDs – Green | Triggered (Colors are reversible.) |
| Relay Type | Form C dry contact, 1.2A@24VDC |
| Output Time | 0.5~30 s, toggle |
| Operating Temperature | -4°~131° F (-20°~55° C) |
| Dimensions | 4-1/2″ x 2-3/4″ x 1-1/2″ (115 x 70 x 39 mm) |
| Weight | 125g |
| Enclosure | Waterproof IP65 |
