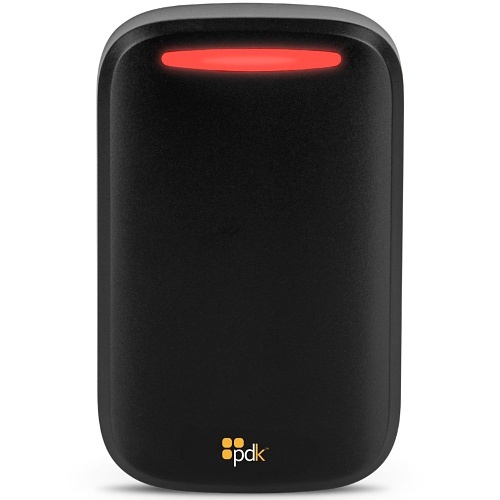

PDK - RGPBV2 - Red Single-Gang Reader High Security + Prox + Mobile, 13.56 MHz, 125 KHz
Product Overview
This is a high-security reader that supports both OSDP and Wiegand protocols while offering multi-technology compatibility for 125 kHz proximity, MIFARE DESFire EV2/EV3, and Bluetooth BLE mobile credentials. It provides robust protection with AES 128-bit encryption and features a durable, IP65-rated housing suitable for any indoor or outdoor environment.
Key Configuration
- • Protocols: OSDP and Wiegand
- • Credential technologies: 125 kHz proximity, 13.56 MHz MIFARE DESFire EV2/EV3, Bluetooth BLE
- • Encryption: AES 128-bit (end-to-end)
- • Voltage: 5-24 VDC; current: 50mA at 12 VDC
- • Dimensions: 5.25" × 3.29" × 0.73"
Technical Context
This single-gang high-security reader offers versatile multi-credential support for professional access control systems. It is highly certified, featuring an IP65-rated and UL94-V0 flame-rated housing to ensure durability and safety in diverse environments.
Installation Notes
Measuring 5.25" × 3.29" × 0.73", this IP65-rated reader is designed for single-gang surface or flush mounting in both indoor and outdoor environments. It operates reliably across a wide temperature range and high humidity, utilizing a flexible 5–24 VDC power input with a low 50mA draw.
