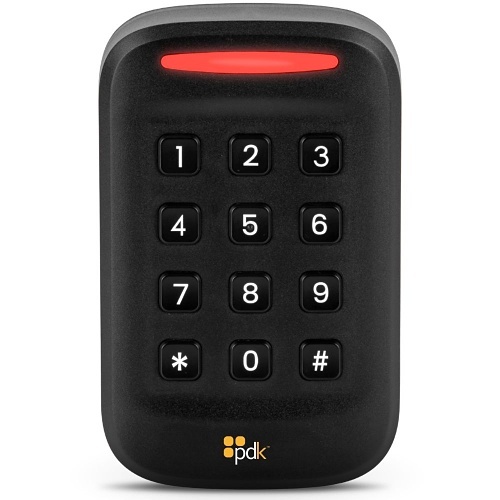

PDK - RKPBV2 - Red Single-Gang Keypad Reader High Security + Prox + Mobile, 13.56 MHz, 125 KHz
Product Overview
The ProdataKey RKPBV2 is a high-security, single-gang reader and keypad that supports OSDP and Wiegand protocols. This versatile device provides multi-technology access for 125 kHz proximity, MIFARE DESFire EV2/EV3, and Bluetooth BLE mobile credentials. It is highly certified, featuring an IP65-rated and UL94-V0 flame-rated housing for maximum durability. Operating on a flexible 5–24 VDC range, it ensures reliable, encrypted performance for both indoor and outdoor security applications.
Key Configuration
- • Read range: 2 inches
- • Credential technologies: 125 kHz proximity, 13.56 MHz MIFARE DESFire EV2/EV3, Bluetooth BLE, PIN
- • Protocols: OSDP and Wiegand
- • Voltage: 5-24 VDC; current: 50mA at 12 VDC
- • Dimensions: 5.25" × 3.29" × 0.92"
Key Features
This single-gang device features a durable, IP65-rated housing that operates reliably in extreme temperatures from -31°F to 150°F. It supports advanced encryption for secure communication and carries multiple safety certifications, including UL294 and a UL94-V0 flame rating. Measuring 5.25" × 3.29" × 0.92".
| Read Range | 2" |
| Input | 125 kHz 13.56 MHz Bluetooth BLE PIN |
| Output | OSDP and Wiegand |
| Encryption | MIFARE® DESFire® EV2 and EV3 |
| Temperature | -31º to 150º F / -35º to 66º C |
| Humidity | 95% |
| Protection Rating | IP65 |
| Voltage | 5-24 VDC |
| Current | 50mA at 12 VDC |
| Dimensions | 5.25" x 3.29" x 0.92" |
| Certifications | FCC, IC, CE, UL294, IP65, UL94-V0, UL746C-F1 |
