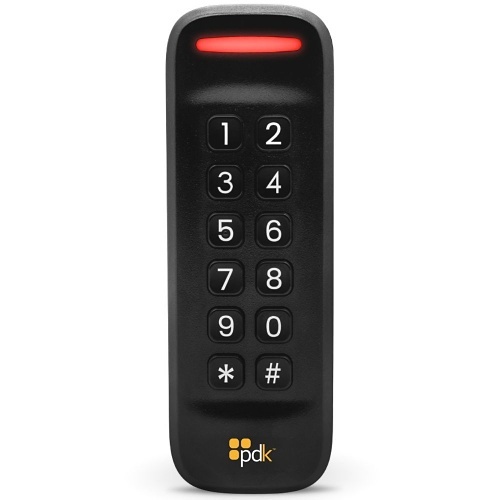

PDK - RMKPBV2 - Red Mullion Keypad Reader High Security + Prox + Mobile, 13.56 MHz, 125 KHz

Product Overview

The ProdataKey RMKPBV2 is a Red Mullion Keypad Reader V2 that combines high-security access with an integrated PIN keypad. This versatile device supports OSDP and Wiegand protocols and offers multi-technology compatibility for 125 kHz proximity, MIFARE DESFire EV2/EV3, and Bluetooth BLE mobile credentials. Designed for a 2-inch read range, it operates on a flexible 5–24 VDC power range with a low 50mA draw at 12 VDC.

Key Configuration

• • Read range: 2 inches
• • Credential technologies: 125 kHz proximity, 13.56 MHz MIFARE DESFire EV2/EV3, Bluetooth BLE, PIN
• • Protocols: OSDP and Wiegand
• • Voltage: 5-24 VDC; current: 50mA at 12 VDC
• • Dimensions: 5.25" × 1.81" × 0.92"

Key Features

Designed for door frame installation in environments requiring both PIN and credential verification. This sleek device features an IP65-rated housing and operates reliably in extreme conditions ranging from -31°F to 150°F. Measuring 5.25" × 1.81" × 0.92", it supports advanced encryption to ensure secure communication for both indoor and outdoor access control applications.
