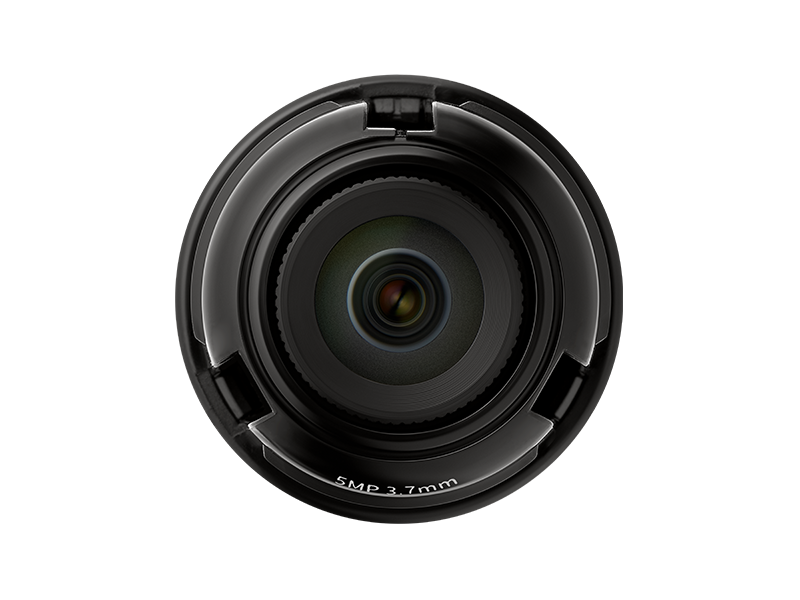

Hanwha - SLA-5M3700P - 5MP Black Plastic Lens For PNM-9320VQP and PNM-9322VQP
Part number:
SLA-5M3700P
Price:
The Hanwha SLA-5M3700P is a high-resolution, 3.7mm fixed-focal lens and sensor module engineered exclusively for field integration into Hanwha’s multi-sensor panoramic network cameras. It features a 5MP 1/2.8" CMOS progressive scan imaging sensor designed to deliver sharp, forensic-grade wide-area surveillance.
Key Features:
• 1/1.8" 5MP CMOS
• 3.7mm fixed focal lens
• FoV: H: 97.5°, V: 71.9°
• For the PNM-9320VQP and PNM-9322VQP
| Videos | |
|---|---|
| Imaging Device | 1/1.8" 5M CMOS |
| Total Pixels | 3096(H) x 2094(V) |
| Effective Pixels | 2616(H) x 1976(V) |
| Scanning System | Progressive Scan |
| Min. Illumination | Color: 0.16Lux (F1.6, 1/30sec, 30IRE) B/W: 0.16Lux (F1.6, 1/30sec, 30IRE) |
| S/N Ratio | 50dB |
| Wide Dynamic Range | 120dB |
| Day & Night | Electrical |
| Lens | |
| Focal Length (Zoom Ratio) | 3.7mm |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 97.5°, V: 71.9°, D: 126.2° |
| Lens Type | Fixed focal |
| Mount Type | M12 Lens module with main unit |
| Pan / Tilt / Rotate Range | Pan: -90° ~ +90° Tilt: +36° ~ +73° Rotate: -180° ~ +180° |
| Mechanical | |
| Color / Material | Black / Plastic |
| Dimension (W x H x D) | Ø35.5 x 35.9 mm (Ø 1.39" x 1.41") |
| Weight | 30g (0.07 lb) |
