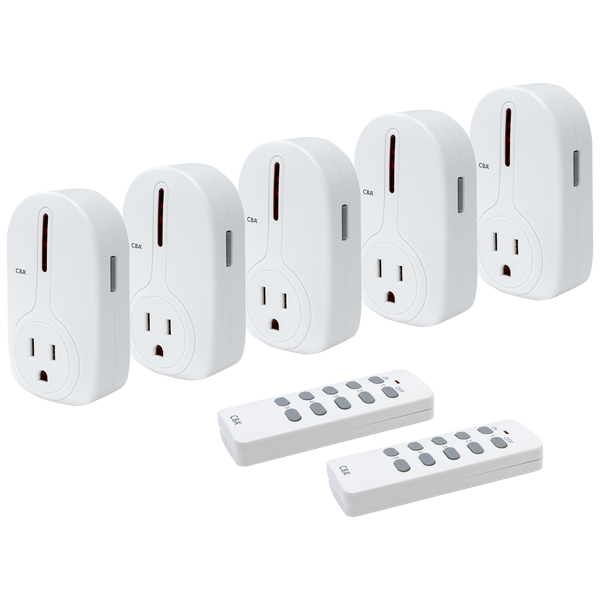

SECO-LARM - LS-525A-14Q - Wireless Outlet Controller - 5 Wireless Outlets, 2 Remote
Part number:
LS-525A-14Q
Price:
Wireless Outlet Controllers, 5 wireless outlet receivers and 2 remote transmitters, wirelessly control devices or appliances, low power consumption, prolong mechanical life of a switch, transmitter compatible with wireless light sockets
Features:
- Wirelessly control devices, appliances, or lamps up to 100ft (30m) away*
- Energy saving – Wireless Outlet draws zero power when off
- Easily expand to multiple devices by pairing to different channels or remotes
- Control multiple outlets with one button, or one outlet with multiple remotes
- Remote is compatible with both LS-313A-14Q and LS-525A-14Q
- Combine several kits for further expansion
- For indoor use
| Wireless Outlets included | 5 |
| Remotes included | 2 |
| # of Remote channels | 5 |
| Working voltage | 120V~/60Hz |
| Remote battery | 12VDC (23A) (included) |
| Max. load for each Wireless Outlet | 1200W (10A) |
| Transmission frequency | 433.92MHz |
| Remote range | 100ft (30m)* |
| Operating temperature | 59°~95° F (15°~35° C) |
| Dimensions | Wireless Outlet – 2-1/8″x3-1-1/16″x1-7/16″ (54x94x36 mm), Remote – 1-1/2″x4-1/8″x1-1/16 (38x105x18 mm) |
Name
Description
Size
Downloads
File
Datasheet
0.5mb
File
Manual
0.5mb
