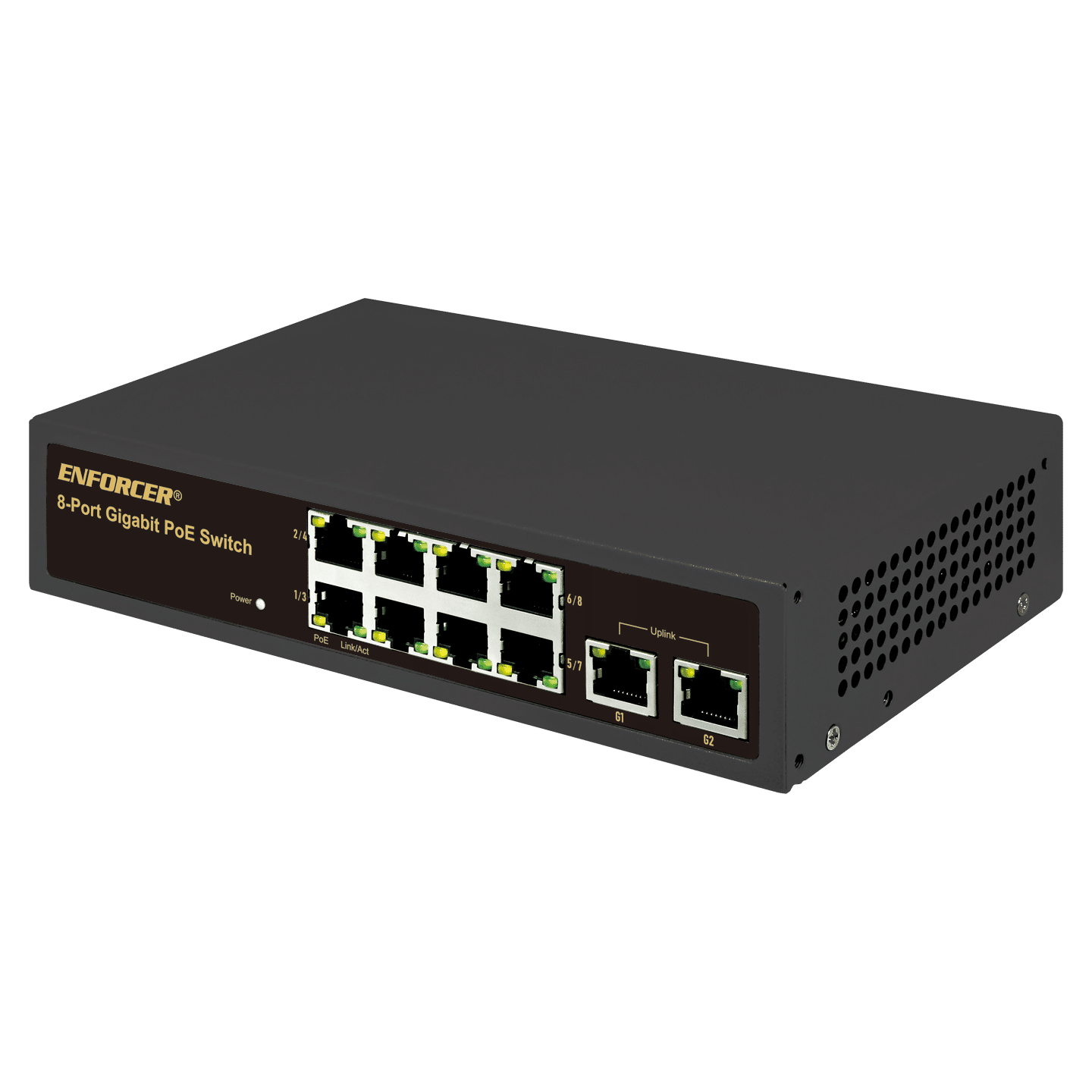

SECO-LARM - NS-508UT-GAQ - 8-Port Gigabit Unmanaged PoE+ Switch
Part number:
NS-508UT-GAQ
Price:
8-port Unmanaged PoE Gigabit Switch, 8 Out, 2 Uplink, 20Gbps. ENFORCER Unmanaged PoE+ Switch provides Ethernet and power to PoE devices such as IP cameras, IP access control, IP speakers/intercoms, IP telephony, etc. Fast packet forwarding capability and extra backplane bandwidth ensure clear images at fast transmission speeds for video, making them well-suited for HD IP CCTV installations.
Features:
- Provides both Ethernet data and power to multiple PoE devices including IP cameras, IP access, IP speakers/intercoms, VOIP, etc.
- Specially designed for video transmission with fast packet forwarding capability for clear images and smooth transmission
- Easy plug-and-play installation
- Supports up to 10/100/1000BASE-T
- IEEE 802.3x flow control
| Operating voltage | 100~240 VAC |
| Power consumption | <10W |
| Ports | 8 Downlink, 2 uplink |
| Ethernet speed | 10/100/1000Mbps (uplink, 1000Mbps) |
| Ethernet standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z |
| Transmission distance | 328ft (100m)‡ |
| PoE capacity | 120W |
| Switching capacity | 20Gbps |
| Transfer rate | 10Mbps:14,880pps |
| 100Mbps:148,800 | |
| 1000Mbps:1,488,000 | |
| MAC Address table | 4K |
| LED Indicators | Connection/transmission and PoE for each port, power |
| Operating humidity | 0~85% non-condensing |
| Operating temperature | 14°~122° F (-10°~40° C) |
| Dimensions | 7-7/8″x2-3/4″x4-5/8″(200x44x118 mm) |
| Weight | 1-lb 12.4-oz (806g) |
Name
Description
Size
Downloads
File
Manual
0.2mb
File
Product Information Sheet
0.3mb
